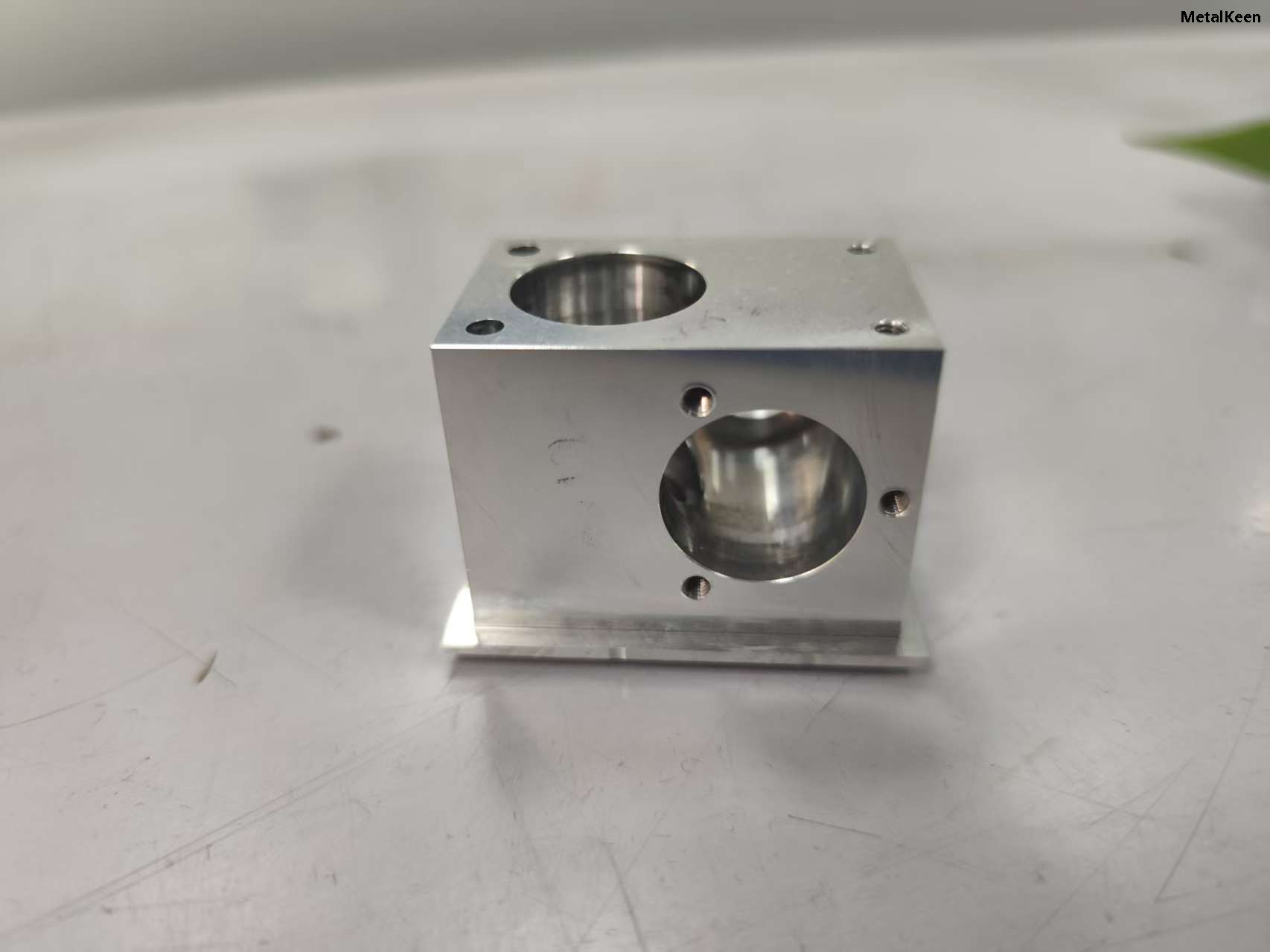

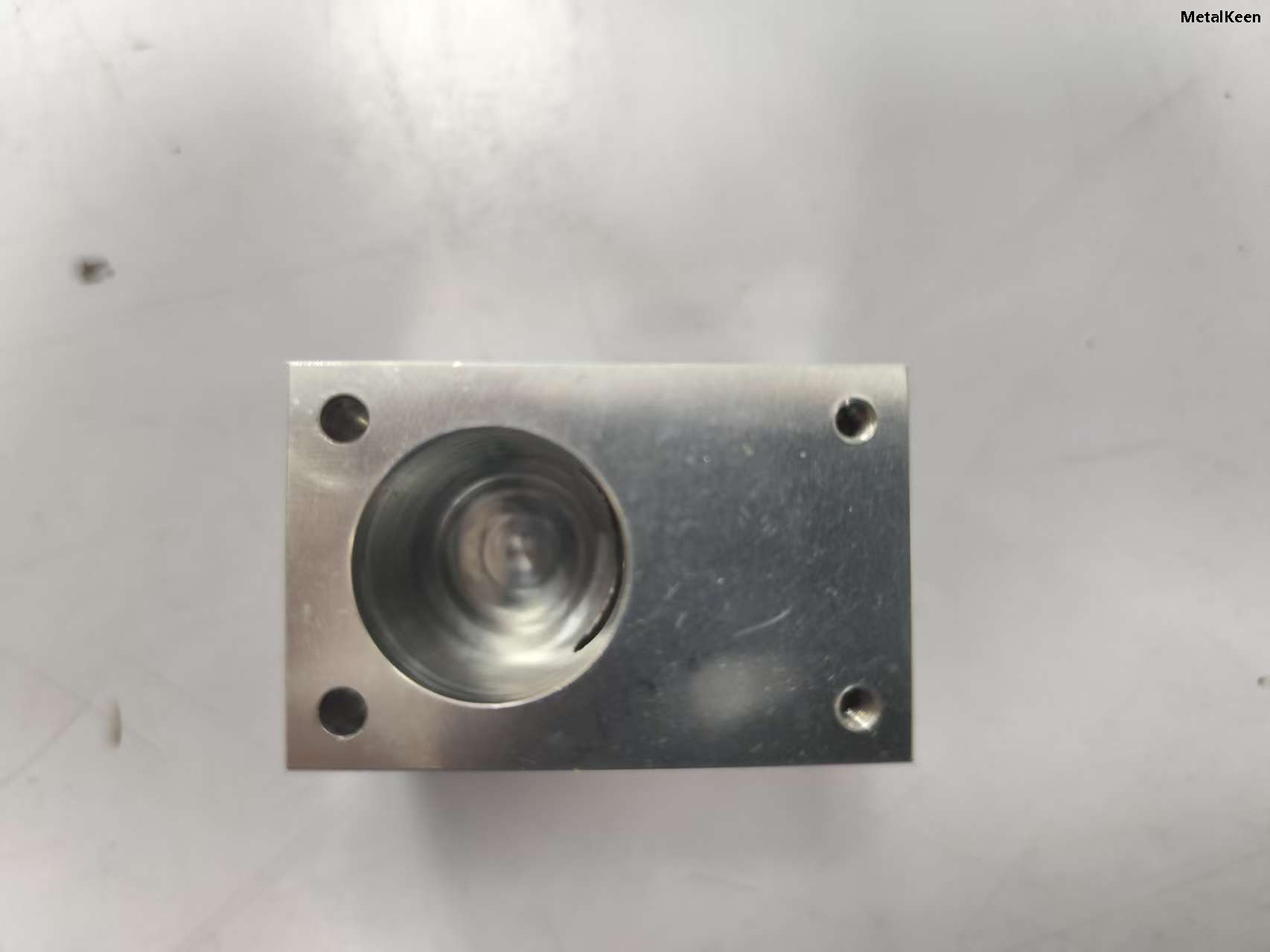

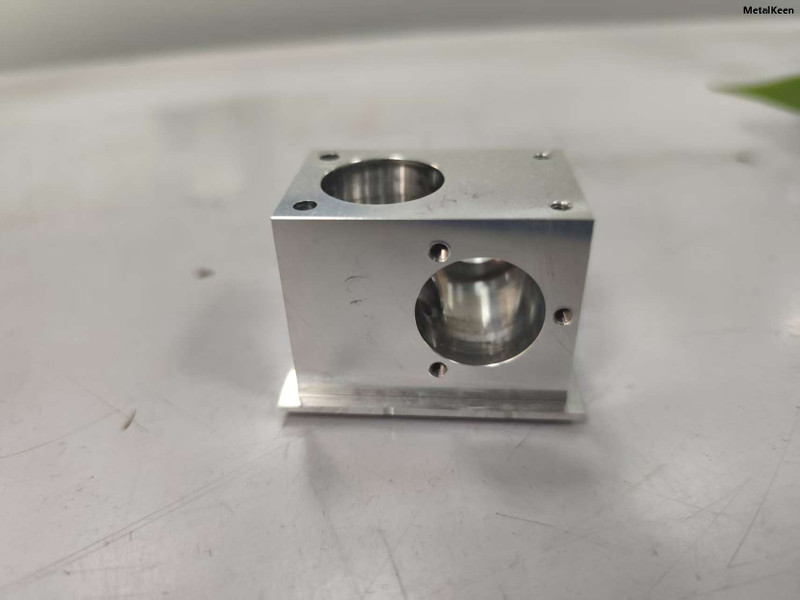

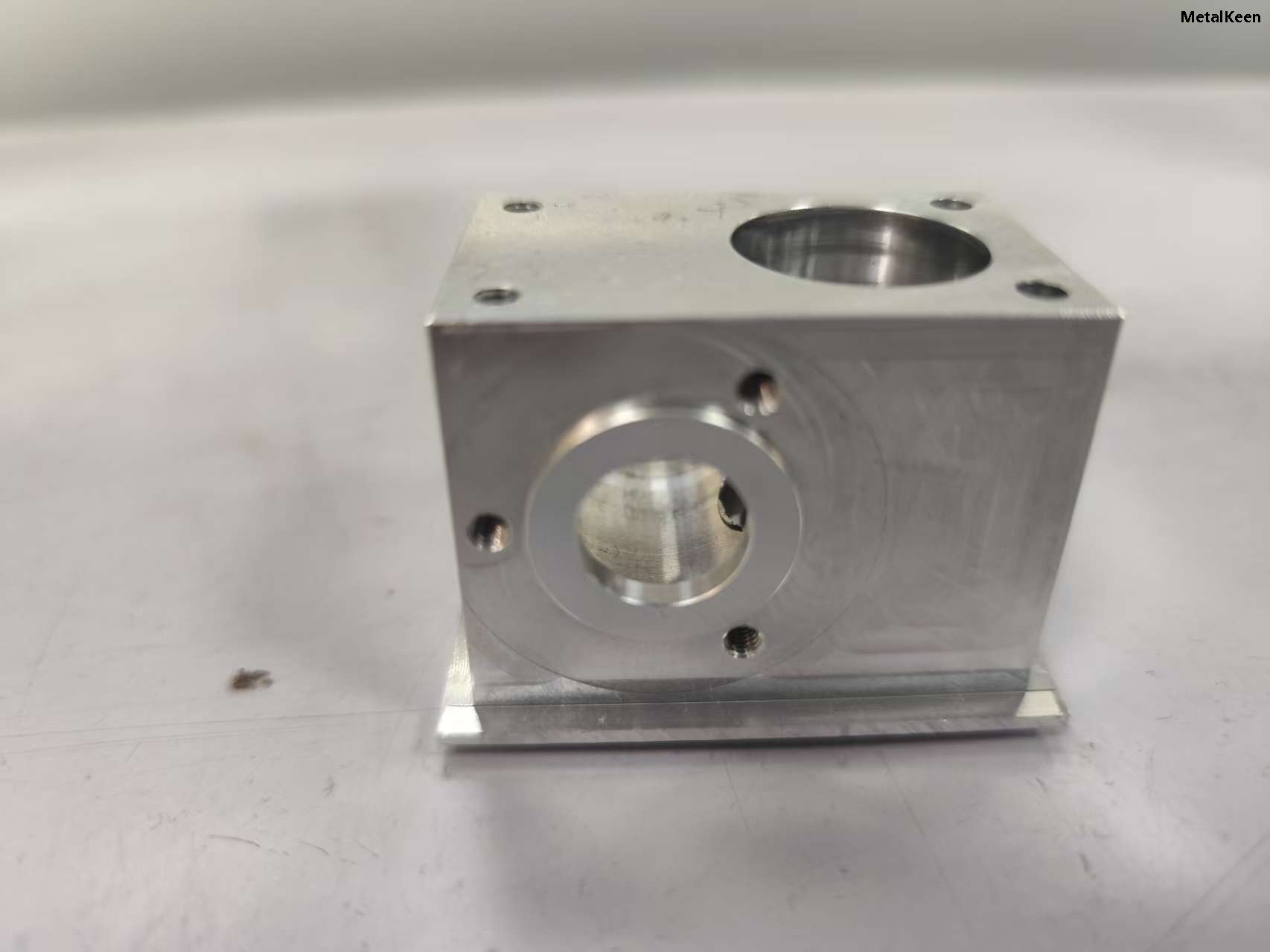

MetalKeen manufactures aluminium 6061 precision machining parts for small electric motors, including motor housings, end caps, mounting brackets, heat sinks, and rotor components. Produced by CNC turning, milling, and multi-axis machining, our 6061-T6 motor parts deliver lightweight strength, excellent thermal conductivity, and tight dimensional tolerances down to ±0.01 mm. Available with anodizing, sandblasting, chem film, or polished finishes for consumer, industrial, and aerospace motor applications.
Aluminium 6061-T6 is the most widely specified alloy for precision-machined motor components due to its exceptional combination of properties:
Table
Property | 6061-T6 Value | Benefit for Motor Parts |
|---|---|---|
Density | 2.70 g/cm³ | 67% lighter than steel; reduces motor weight for drones, robotics, and EVs |
Tensile Strength | 310 MPa | Sufficient strength for structural brackets and housings without excess mass |
Yield Strength | 276 MPa | Resists deformation under mounting and operational loads |
Thermal Conductivity | 167 W/m·K | Efficient heat dissipation from stator and windings |
Machinability | Excellent | Chips cleanly; holds tight tolerances; extends tool life |
Corrosion Resistance | Very good | Natural oxide layer protects in humid or salt-air environments |
Anodizing Compatibility | Excellent | Creates hard, insulating, wear-resistant surface |
6061 vs. Other Aluminium Alloys for Motors:
Table
Alloy | Strength | Machinability | Cost | Best For |
|---|---|---|---|---|
6061-T6 | High | Excellent | Moderate | General motor housings, brackets, heat sinks |
6063-T5 | Medium | Good | Lower | Extruded motor housings (less machining) |
7075-T6 | Very High | Good | Higher | High-stress aerospace motor mounts |
2024-T3 | High | Good | Higher | High-fatigue applications (limited corrosion resistance) |
Recommendation: For most small motor applications, 6061-T6 offers the optimal balance of strength, weight, machinability, and cost.
MetalKeen produces a comprehensive range of CNC precision machined aluminium 6061 motor components:
Table
Part Type | Function | Typical Tolerance | Surface Finish |
|---|---|---|---|
Motor Housing / Motor Can — Cylindrical or square body | Protects stator laminations and windings; provides mounting interface | OD: ±0.02 mm; Concentricity: 0.03 mm | Sandblasted + clear anodize; black anodize |
End Cap / End Bell — Front and rear covers | Supports bearings; seals motor interior; provides shaft exit | Bore: ±0.01 mm; Flatness: 0.05 mm | Chem film (Alodine); painted |
Mounting Bracket / Foot — L-shaped or custom profile | Attaches motor to chassis or frame | Hole pattern: ±0.05 mm | Clear anodize; powder coat |
Heat Sink / Cooling Fins — Extruded or fully machined | Dissipates heat from high-current windings | Fin pitch: ±0.1 mm | Black anodize (enhances emissivity) |
Stator Core Retainer / Spacer — Ring or segmented | Axially clamps stator laminations | ID/OD: ±0.015 mm | Natural anodize |
Rotor Hub / Coupling Adapter — Shaft interface | Transfers torque from shaft to load | Bore: ±0.008 mm (H7 fit) | Hard anodize for wear resistance |
Terminal Block / Connector Housing — Insulated mount | Secures power leads and Hall sensors | Thread: 6H; Pocket: ±0.02 mm | Chem film; custom color anodize |
Encoder Mount / Sensor Bracket — Precision locating | Positions rotary encoder or Hall effect sensor | Positioning: ±0.01 mm | Clear anodize |
Table
Capability | Specification | Quality Control |
|---|---|---|
CNC Turning | Diameter: 3 mm – 400 mm; Length: 300 mm | CMM verification; roundness tester |
CNC Milling — 3-axis, 4-axis, 5-axis | Work envelope: 800 × 500 × 400 mm | On-machine probing; post-machining CMM |
Swiss-Type Turning — For micro motor parts | Diameter: 1 mm – 32 mm | Optical comparator; 0.001 mm resolution |
Drilling & Tapping — Thread sizes M1.6 to M20 | Thread gauge; helicoil installation | Go/no-go gauge; torque test |
Deburring & Finishing — Vibratory, thermal, or hand deburr | Edge break: 0.1–0.3 mm | Visual inspection under magnification |
Surface Treatment — Anodizing, chem film, sandblasting, polishing | Type II / Type III anodize; MIL-DTL-5541 chem film | Coating thickness gauge; adhesion test |
Tolerance Standards:
General machining: ISO 2768-m (medium) or -f (fine)
Precision motor fits: ISO 286 H7/g6 for bearing bores and shaft interfaces
Critical locating features: ±0.005 mm achievable on request
Table
Finish | Specification | Appearance | Function | Best For |
|---|---|---|---|---|
Clear Anodize (Type II) — Sulfuric acid, natural | Transparent; reveals aluminium grain | Corrosion protection; electrical insulation | General motor housings, brackets | |
Black Anodize (Type II) — Dyed black | Matte or glossy black | Heat dissipation (emissivity); aesthetic; light absorption | Heat sinks, drone motor cans | |
Hard Anodize (Type III) — Thick, dense coating | Dark grey to black | Extreme wear resistance; dielectric strength | Rotor hubs, sliding surfaces | |
Chemical Film (Alodine / Chromate) — MIL-DTL-5541 Class 1A | Iridescent gold/green | Corrosion protection; retains electrical conductivity | Terminal blocks, grounding brackets | |
Sandblasting + Anodize — Matte texture | Uniform satin finish | Hides machining marks; improves coating adhesion | Consumer appliance housings | |
Polished + Clear Coat — Mirror or brushed | High-gloss or directional grain | Premium aesthetic; easy cleaning | Display motors, medical equipment |
Our aluminium 6061 precision motor parts serve diverse industries:
Table
Industry / Motor Type | Part Examples | Key Requirement |
|---|---|---|
Drone & UAV Motors — Brushless outrunner | Motor cans, end caps, mounting plates | Extreme lightweight; high RPM balance; black anodize for heat |
RC & Hobby Motors — Brushless inrunner | Housings, bearing carriers, heat sinks | Tight tolerances; cosmetic anodize colors |
Servo & Stepper Motors — Industrial automation | End bells, encoder mounts, connector housings | Precision bearing fits; EMI shielding |
Automotive Auxiliary Motors — HVAC, seat, pump | Brackets, housings, terminal blocks | Vibration resistance; temperature cycling (-40°C to +125°C) |
Medical Device Motors — Surgical tools, pumps | Sterilizable housings, precision adapters | Biocompatible finish; Ra ≤ 0.4 μm |
Consumer Appliance Motors — Fan, vacuum, power tool | Housings, heat sinks, mounting feet | Cost-effective volume production; consistent quality |
Renewable Energy Motors — Wind turbine pitch, solar tracking | Large brackets, gear motor housings | Corrosion resistance; 20+ year service life |
Table
Inspection | Method / Equipment | Standard | Purpose |
|---|---|---|---|
Dimensional Inspection — CMM, optical comparator, height gauge | Zeiss CMM; Mitutoyo calipers/micrometers | ISO 9013 | Verify all critical dimensions and GD&T |
Surface Roughness — Profilometer | Ra, Rz measurement | ISO 4287 | Ensure bearing bores and sealing surfaces meet spec |
Roundness & Cylindricity — Roundness tester | Talyrund or equivalent | ISO 12181 | Verify motor housing bore and shaft fit |
Coating Thickness — Eddy current gauge | Fischer or Elcometer | ASTM D7091 | Verify anodize or chem film thickness |
Hardness Test — Webster or Rockwell | 6061-T6 verification | ASTM B648 | Confirm material temper condition |
Visual Inspection — Magnification, lighting booth | Cosmetic and defect check | MIL-STD-883 | Detect scratches, dents, anodize defects |
Leak Test — Pressure decay (for sealed housings) | Custom fixture | Customer spec | Verify seal integrity of enclosed motor housings |
MetalKeen supports your full product lifecycle:
Table
Phase | Service | Lead Time |
|---|---|---|
Prototype — Single-piece or small batch CNC | Rapid programming; material in stock | 3–7 days |
Pilot Run — 50–500 pieces | Process validation; SOP development | 1–2 weeks |
Volume Production — 1,000–100,000+ pieces | Optimized fixtures; multi-spindle or automated loading | 2–4 weeks |
Design Support — DFM feedback | Material selection; tolerance optimization; cost reduction | Concurrent with quoting |
Documentation Provided:
First Article Inspection (FAI) report per AS9102 or PPAP Level 3
Material certificates with mill test reports (MTR)
Coating thickness and adhesion test reports
CMM dimensional reports with 3D color mapping
✅ Motor Industry Expertise — Parts for drone, servo, automotive, and medical motors
✅ Tight Tolerances — ±0.01 mm routine; ±0.005 mm achievable for critical fits
✅ Full 6061 Range — 6061-T6 plate, rod, bar, and extrusion sourcing
✅ In-House Finishing — Anodizing, chem film, sandblasting, and polishing
✅ Multi-Axis CNC — 3, 4, and 5-axis milling plus Swiss turning for micro parts
✅ Quality Certified — ISO 9001; AS9102 FAI; PPAP available for automotive
✅ Prototype to Mass Production — Seamless scale-up with consistent quality
Q1: Why is aluminium 6061-T6 the best choice for small motor housings and brackets? Aluminium 6061-T6 offers the best combination of lightweight (1/3 the density of steel), good strength (310 MPa tensile), excellent machinability (tight tolerances, good surface finish), and superior thermal conductivity (167 W/m·K) for heat dissipation. It also anodizes beautifully, providing corrosion protection and electrical insulation. For most small motors in drones, appliances, and automation, 6061-T6 outperforms plastics (too weak), steel (too heavy), and other aluminium alloys (too expensive or harder to machine).
Q2: What tolerances can you hold on CNC machined aluminium 6061 motor parts? Our standard machining tolerance is ±0.02 mm for general features and ±0.01 mm for precision fits such as bearing bores and shaft interfaces. For ultra-precision applications (e.g., high-RPM drone motors or medical servo motors), we can achieve ±0.005 mm using 5-axis CNC and temperature-controlled inspection. We verify all critical dimensions with CMM (Coordinate Measuring Machine) and provide dimensional reports.
Q3: What surface finishes do you recommend for aluminium 6061 motor parts?
Clear anodize (Type II) — General corrosion protection and insulation for housings and brackets.
Black anodize (Type II) — Enhanced heat dissipation (emissivity) and aesthetic for heat sinks and drone motor cans.
Hard anodize (Type III) — Wear-resistant surfaces for rotor hubs or sliding interfaces.
Chemical film (Alodine) — Corrosion protection with maintained electrical conductivity for terminal blocks.
Sandblasted + anodized — Uniform satin appearance that hides machining marks for consumer products.
Q4: Can you machine micro motor parts under 10 mm diameter? Yes. Our Swiss-type CNC lathes specialize in micro precision parts from 1 mm to 32 mm diameter with tolerances down to ±0.005 mm. This is ideal for micro drone motors, medical device motors, and miniature servo motors where conventional CNC lathes cannot achieve the required precision.
Q5: Do you provide prototype quantities before full production? Yes. We offer prototype runs from 1 to 50 pieces with rapid 3–7 day turnaround using stock 6061-T6 material. First Article Inspection (FAI) reports are provided for approval before volume production. This allows you to validate fit, function, and thermal performance before committing to tooling or large orders.
Q6: What motor industries do you serve? We supply aluminium 6061 precision parts for drone and UAV motors, RC hobby motors, industrial servo and stepper motors, automotive auxiliary motors (HVAC, seat, pump), medical device motors, consumer appliance motors, and renewable energy motors (wind pitch, solar tracking). Each industry has specific tolerance, finish, and documentation requirements that we tailor to.
Q7: Can you help optimize my motor part design for manufacturability (DFM)? Yes. Our engineers review your CAD models and drawings for Design for Manufacturability (DFM) opportunities, including: reducing unnecessary tight tolerances, selecting optimal material forms (bar vs. plate vs. extrusion), minimizing machining operations, and recommending surface finishes that meet functional requirements at lower cost. DFM feedback is provided with your quotation at no extra charge.
