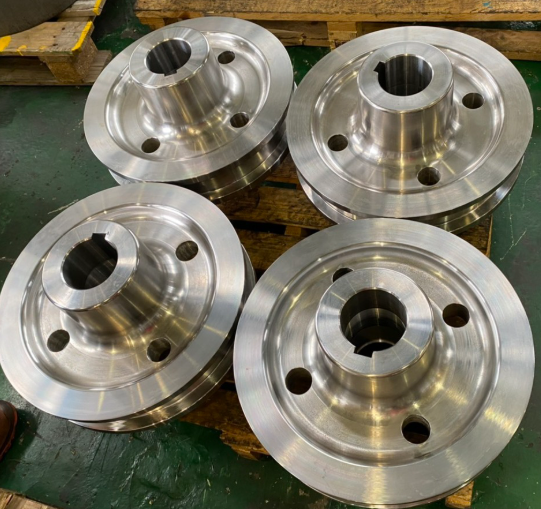

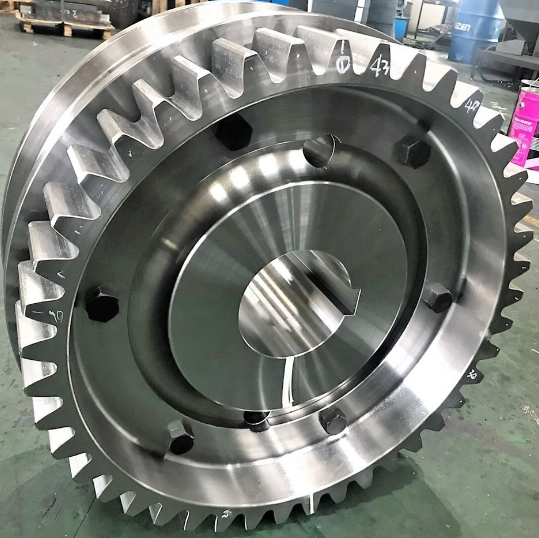

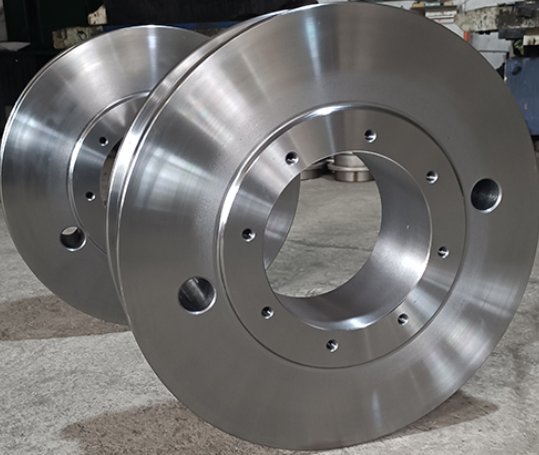

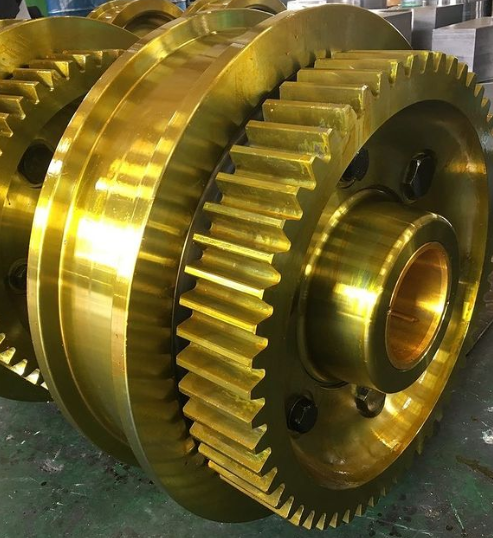

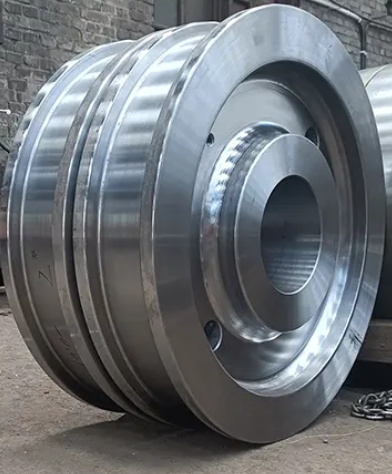

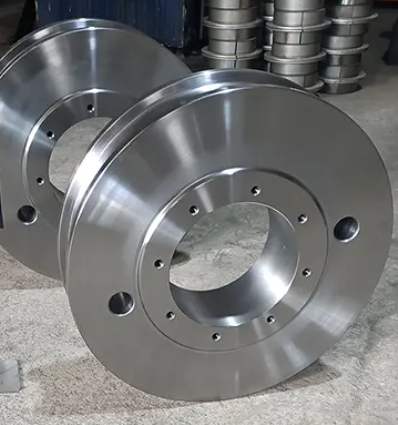

MetalKeen manufactures custom forged wheels for heavy-duty mining and construction machinery. Produced by open-die forging from high-strength alloy and carbon steels including 42CrMo, 65Mn, #45, #50, and #60, our forged wheels support diameters up to 1600 mm. Every wheel undergoes NDT testing and is supplied with full material certificates for traceability and compliance.
A forged wheel is a heavy-duty rotating component manufactured by compressing heated steel billets under extreme pressure. Compared to cast wheels, forged wheels offer:
Superior strength — Grain structure aligned to load direction
Higher fatigue resistance — Critical for cyclic loading in mining and construction
Better impact toughness — Essential for shock loads from rough terrain
No internal porosity — Eliminates casting defects like shrinkage cavities
MetalKeen's forged wheels are used on mining trucks, excavators, cranes, loaders, and heavy transport vehicles where failure is not an option.
Table
Material | Grade Equivalent | Hardness (HRC) | Key Properties | Best For |
|---|---|---|---|---|
42CrMo | AISI 4140 / SCM440 | 28–34 | High strength, excellent fatigue resistance, good hardenability | High-load mining trucks, crane wheels, heavy excavator idlers |
65Mn | AISI 1065 / SUP6 | 38–45 | High elasticity, excellent wear resistance, good spring properties | Track rollers, guide wheels, tension wheels |
#45 Steel | AISI 1045 / C45 | 20–28 | Balanced strength and ductility, cost-effective | General construction equipment wheels, medium-duty applications |
#50 Steel | AISI 1050 / C50 | 25–32 | Higher carbon content, increased strength over #45 | Heavy-duty loader wheels, transport trolley wheels |
#60 Steel | AISI 1060 / C60 | 30–38 | High hardness and wear resistance | High-wear mining wheels, rail-bound equipment |
Material Selection Guidance:
Maximum load capacity → 42CrMo
Best wear resistance → 65Mn or #60
Cost-effective general use → #45 or #50
High-impact shock loads → 42CrMo (tempered condition)
Table
Specification | Details |
|---|---|
Manufacturing Process | Open-die forging + CNC machining + heat treatment |
Max Diameter | Up to 1600 mm |
Max Weight | Up to 5,000 kg per piece (custom capacity available) |
Steel Grades | 42CrMo, 65Mn, #45, #50, #60 (custom alloys on request) |
Heat Treatment | Normalizing, quenching & tempering, surface hardening |
Hardness Range | HRC 20–45 (customizable per application) |
Surface Finish | Rough machined, semi-finished, or fully finished (Ra 3.2–12.5) |
Bore Options | Straight bore, stepped bore, keyway, spline, or custom |
Hub Design | Solid hub, web/spoke design, or hollow lightened design |
Surface Treatment | Shot blasting, anti-rust oil, paint, or zinc coating |
Table
Step | Process | Quality Control |
|---|---|---|
Material Sourcing | Prime quality steel billets from certified mills | Mill test reports (MTR) verification |
Heating | Natural gas or induction heating to forging temperature | Pyrometer-controlled, 1100–1250°C |
Open-Die Forging | Hydraulic press (up to 3,000 tons) or hammer forging | Deformation ratio ≥ 3:1 for grain refinement |
Heat Treatment | Normalizing, Q&T (quenching & tempering), or surface induction hardening | Hardness testing, metallographic examination |
Rough Machining | CNC lathe and vertical boring | Dimensional inspection |
Finish Machining | CNC turning, milling, grinding | CMM dimensional report, surface roughness check |
NDT Testing | Ultrasonic testing (UT), magnetic particle testing (MT), dye penetrant testing (PT) | Defect-free certification |
Final Inspection | Dimensional, hardness, visual | Full inspection report and material certificate |
Every forged wheel undergoes rigorous non-destructive testing to ensure structural integrity:
Table
Test Type | Method | Standard | Purpose |
|---|---|---|---|
Ultrasonic Testing (UT) | Straight beam + angle beam probe | ASTM A388 / EN 10228-3 | Detect internal flaws, inclusions, and laminations |
Magnetic Particle Testing (MT) | Wet fluorescent method | ASTM E1444 / EN 1369 | Detect surface and near-surface cracks |
Dye Penetrant Testing (PT) | Color contrast or fluorescent | ASTM E165 / EN 571-1 | Detect open surface defects |
Hardness Testing | Rockwell or Brinell | ASTM E18 / ISO 6506 | Verify heat treatment effectiveness |
Dimensional Inspection | CMM, calipers, gauges | Customer drawing | Ensure fit and function |
Documentation Provided:
Mill Test Report (MTR) with full chemical composition
Mechanical test report (tensile, impact, hardness)
NDT test report (UT/MT/PT)
Forging and heat treatment records
Dimensional inspection report
Our custom forged wheels serve critical roles across mining and construction equipment:
Table
Equipment Type | Wheel Function | Typical Material |
|---|---|---|
Mining Dump Trucks (100–400 ton class) | Rear drive wheels, front idler wheels | 42CrMo, #60 |
Hydraulic Excavators | Track idlers, track rollers, carrier rollers | 65Mn, 42CrMo |
Wheel Loaders | Drive axle wheels, rim assemblies | #50, #45 |
Mobile Cranes | Outrigger support wheels, crawler track wheels | 42CrMo |
Bulldozers | Track rollers, idler wheels, sprocket segments | 65Mn, 42CrMo |
Rail-Mounted Equipment | Rail wheels, trolley wheels, crane wheels | #60, 42CrMo |
Heavy Transport Trailers | Steering bogie wheels, load-bearing wheels | #45, #50 |
✅ Large Forging Capacity — Wheels up to 1600 mm diameter and 5,000 kg weight
✅ Premium Steel Grades — 42CrMo, 65Mn, #45, #50, #60 with full MTR traceability
✅ Full NDT Certification — UT, MT, PT testing with comprehensive reports
✅ Custom Engineering — Bore, hub, web, and groove profiles tailored to your drawing
✅ Heat Treatment Expertise — Through-hardening, surface hardening, and stress relieving
✅ OEM & Aftermarket — New production and replacement wheels for worn assemblies
✅ Global Export — Seaworthy packaging and documentation for international projects
Q1: What is the difference between a forged wheel and a cast wheel for mining equipment? Forged wheels are produced by compressing heated steel under high pressure, resulting in a dense, aligned grain structure with no internal porosity. Cast wheels are poured molten metal, which can contain shrinkage cavities and inclusions. Forged wheels offer 2–3× higher fatigue strength and superior impact resistance, making them the preferred choice for critical mining and construction applications.
Q2: What steel grade should I choose for my mining truck wheels? For high-load mining truck wheels (100+ ton capacity), 42CrMo is recommended due to its excellent strength-to-weight ratio and fatigue resistance. For track rollers and guide wheels subject to high wear, 65Mn provides superior wear resistance. For general construction equipment on a budget, #45 or #50 steel offers a cost-effective balance of strength and ductility.
Q3: What is the maximum diameter you can forge? MetalKeen can forge wheels up to 1600 mm in diameter. For larger sizes or special geometries, please contact our engineering team to review feasibility.
Q4: What NDT tests are included with your forged wheels? Standard scope includes ultrasonic testing (UT) for internal integrity and magnetic particle testing (MT) or dye penetrant testing (PT) for surface defects. Additional testing such as radiographic testing (RT) or third-party inspection can be arranged upon request.
Q5: Do you provide material certificates and traceability documentation? Yes. Every forged wheel is supplied with a complete documentation package including mill test reports (MTRs) with heat numbers, mechanical test reports, NDT test certificates, and dimensional inspection reports. Full material traceability from raw billet to finished part is maintained.
Q6: Can you manufacture forged wheels from our drawings or samples? Yes. We accept customer drawings (PDF, DWG, STEP), physical samples for reverse engineering, or OEM part numbers. Our engineering team will review your requirements and recommend the optimal material and heat treatment for your application.
Q7: What surface treatments are available for forged wheels? Standard finish is shot blasting + anti-rust oil coating. Optional treatments include machined running surfaces (ground or turned), induction-hardened tread surfaces, paint coating (primer + topcoat), and zinc plating for corrosion protection.
