A finished sizing press roll piping unit may look simple at first glance.
A machined body, a shaft, several connectors, valves and a few piping components come together to form one compact assembly.
But behind this finished product is a carefully controlled manufacturing and assembly process.
For this project, every component was manufactured, prepared and assembled step by step before the final Sizing Press Roll Piping Unit was completed.
Here is how the journey took place.
Every assembly begins with individual parts.
Before the final unit can be assembled, the main body, shaft, flange components, connection blocks and other custom parts need to be manufactured according to the required dimensions.

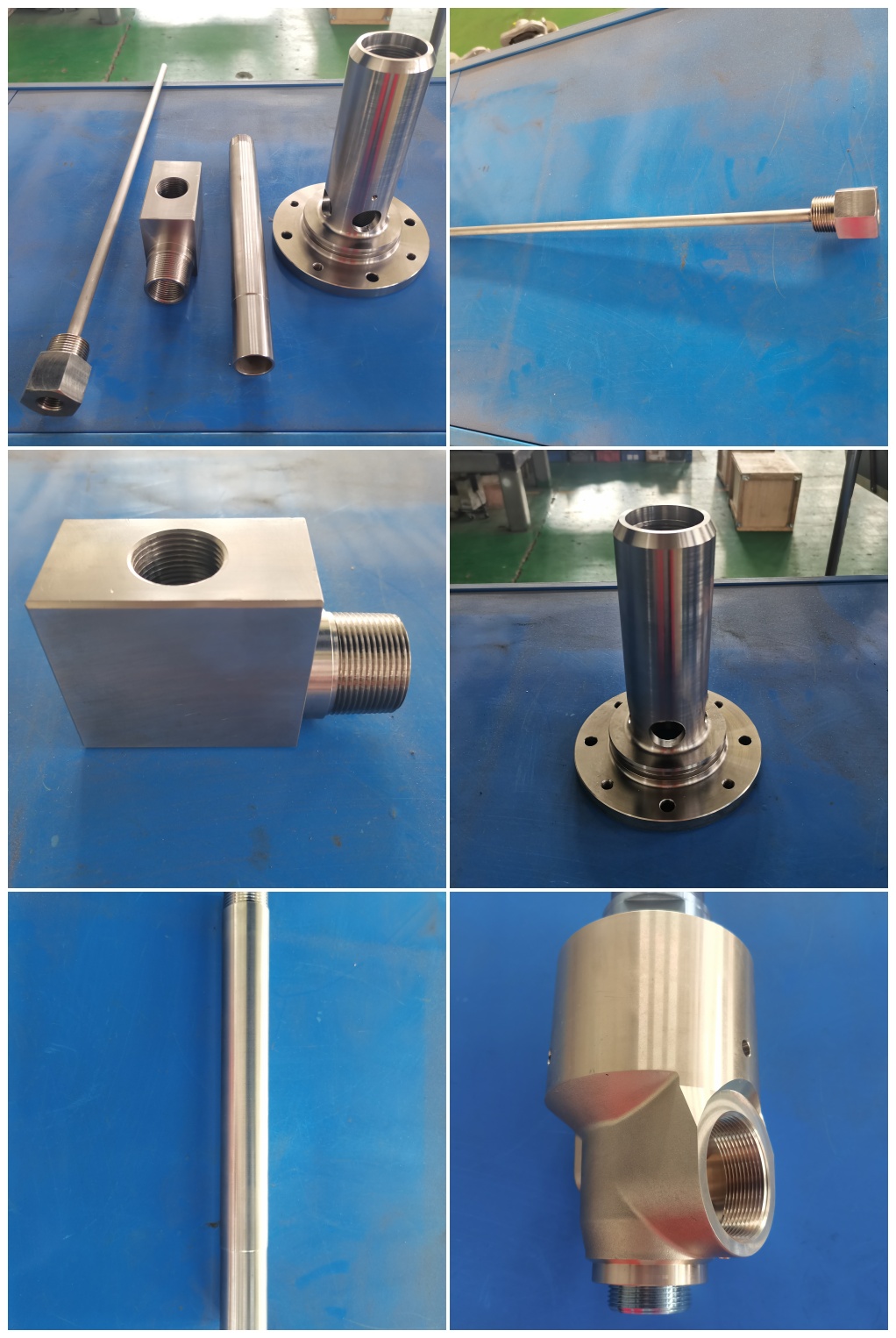

The components shown in this project include precision-machined cylindrical parts, connection blocks and specially machined fittings.
At this stage, dimensional accuracy is especially important.
The parts may look simple individually, but they must eventually work together as one complete system.
A small dimensional error at the beginning can create alignment or sealing problems later.
Therefore, machining is not simply about producing a part with the correct shape.
It is about preparing every interface for the next stage.
Once the individual parts are machined, the components are cleaned, checked and prepared for assembly.
The photos show several components being positioned and installed manually.
This stage allows the technicians to verify:
Component dimensions
Connection positions
Thread compatibility
Assembly orientation
Contact surfaces
Interface alignment
For a custom paper machine piping assembly, these details are important because the finished unit needs to match the customer's equipment configuration.
The goal is to make sure that every component has its correct position before the assembly moves forward.
The next stage is connecting the machined components with the required fittings and valves.
Some parts are installed into threaded interfaces, while other components are positioned according to the overall assembly configuration.
At this point, the project begins to take the shape of a complete sizing roll piping unit.
What were previously separate components are now becoming one functional assembly.
This is also where manufacturing experience becomes particularly important.
The technician needs to consider not only whether a component can be installed, but also whether it is installed in the correct orientation and whether there is sufficient space for subsequent operation and maintenance.
A reliable piping assembly depends heavily on its connection points.
Before certain threaded components are installed, the connection surfaces are treated to improve sealing and connection reliability.
The photos show the application of sealing material to the connection components before installation.
This may appear to be a small step, but it is an important part of the assembly process.
For industrial piping systems, connection reliability directly affects the performance of the complete unit.
Therefore, sealing is treated as part of the manufacturing process rather than as an afterthought.
With the individual connections prepared, the technicians continue integrating the components.
The machined body, shaft assembly, valves, fittings and other piping components are gradually brought together.
At this stage, the assembly needs to satisfy several requirements simultaneously:
Mechanical fit.
Connection accuracy.
Sealing reliability.
Correct orientation.
Compact configuration.
This is where individual machining capabilities become a complete manufacturing solution.
We are not simply producing individual parts.
We are assembling those parts into a functional industrial product.

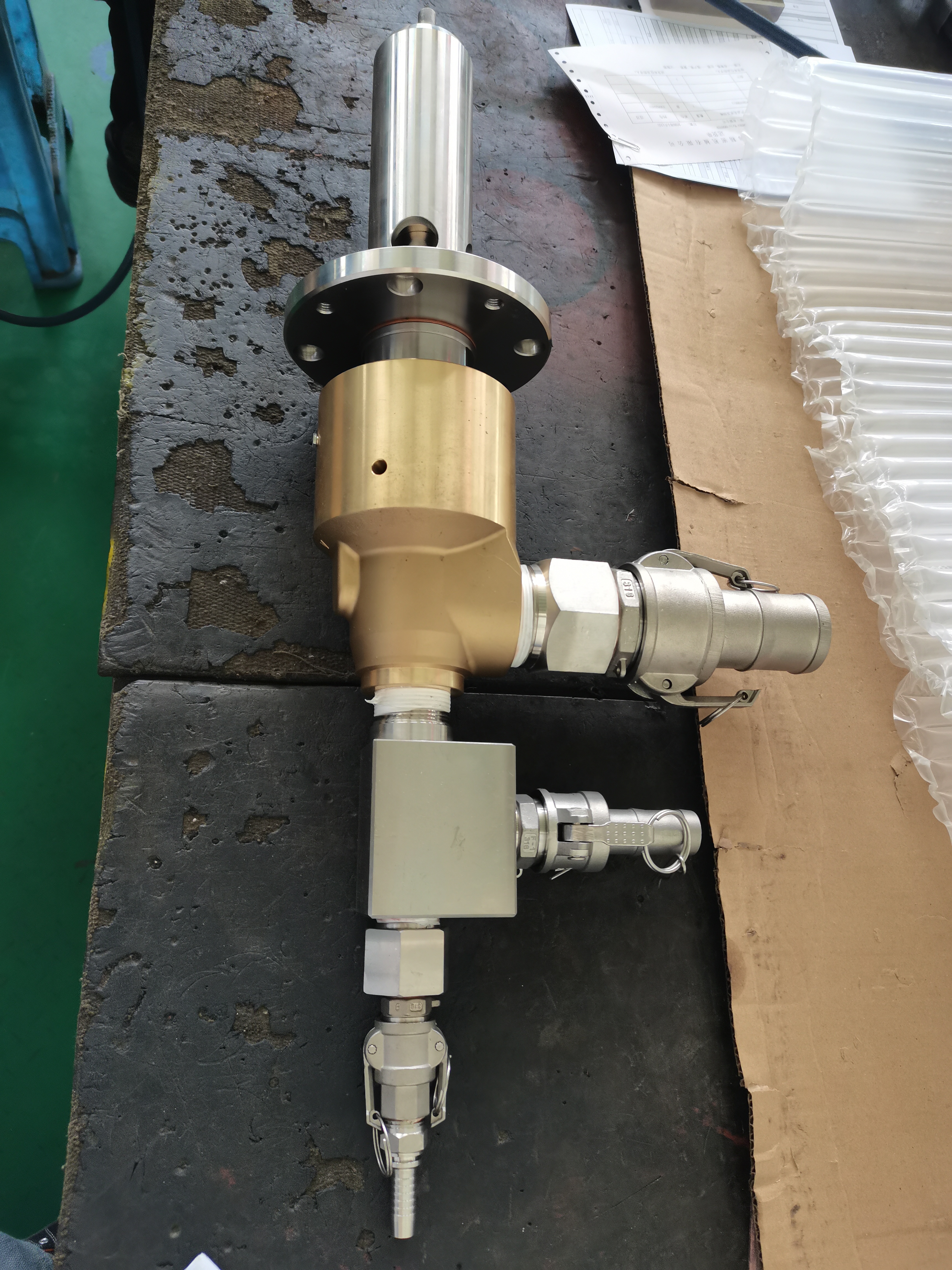

After the individual components have been installed and connected, the complete unit begins to take its final form.
The main body and shaft assembly are combined with the piping and valve components.
The result is a compact and integrated Sizing Press Roll Piping Unit designed for installation within a paper machine system.
Compared with supplying individual components separately, a complete pre-assembled unit can simplify the customer's installation work.
Instead of receiving multiple loose components and performing the entire assembly process independently, the customer receives a finished assembly that has already gone through our internal manufacturing and assembly process.
The final stage is inspection.
Before the finished piping unit leaves the workshop, the assembly is checked as a complete product.
The inspection focuses on the key interfaces and assembly points, including:
Overall assembly condition
Component positioning
Connection tightness
Threaded interfaces
Sealing areas
Dimensional requirements
Appearance and workmanship
The purpose of the final inspection is simple:
The unit should be ready for the next stage of the customer's project.
Looking at the finished Sizing Press Roll Piping Unit, it is easy to see only the final product.
But the real manufacturing story is hidden inside it.
First came the drawings and technical requirements.
Then came the individual machined components.
Those components were inspected, prepared and connected.
Threaded interfaces were treated and sealed.
Valves and fittings were integrated.
Finally, everything became one complete piping assembly.
This is the difference between simply supplying components and providing a custom industrial assembly solution.
For paper machine applications, the piping unit needs to work within a specific equipment environment.
The installation space, connection locations, component orientation and maintenance requirements can vary from one machine to another.
That is why a custom paper machine piping assembly often requires more than standard off-the-shelf components.
Our manufacturing approach combines:
Precision Machining + Component Integration + Piping Assembly + Sealing + Final Inspection
This allows us to manufacture custom assemblies based on customer drawings, samples, dimensions and technical requirements.
This project demonstrates our ability to bring different manufacturing processes together in one product.
From machining the individual components to assembling the valves and fittings, each stage contributes to the performance of the final unit.
The finished product is therefore not just a collection of parts.
It is the result of a complete manufacturing workflow.
Design → Machining → Component Preparation → Assembly → Sealing → Integration → Inspection → Finished Product
And that is the story behind this custom sizing press roll piping unit.
