Welding fixtures are often referred to as the “invisible skeleton” of welding production, as they can significantly improve precision, efficiency, and consistency. However, in actual production, fixtures themselves can present a variety of problems: wear on locating pins, insufficient clamping force, reference shifts caused by thermal deformation, difficulty in removing workpieces… If not handled properly, these issues can actually compromise weld quality, leading to batch rework or even scrap.
So, how can you proactively address common welding fixture issues and consistently ensure stable weld quality? Drawing from engineering practice, this article summarizes six key strategies to help you transition from “reactively repairing fixtures” to “proactively controlling quality.”
Positioning pins and blocks are the most frequently used components in fixtures. Loading and unloading workpieces hundreds or even thousands of times a day causes the positioning surfaces to gradually wear down, resulting in daily positional shifts of a few tenths of a millimeter. Over the course of a week, this wear can exceed tolerance limits.
Countermeasures:

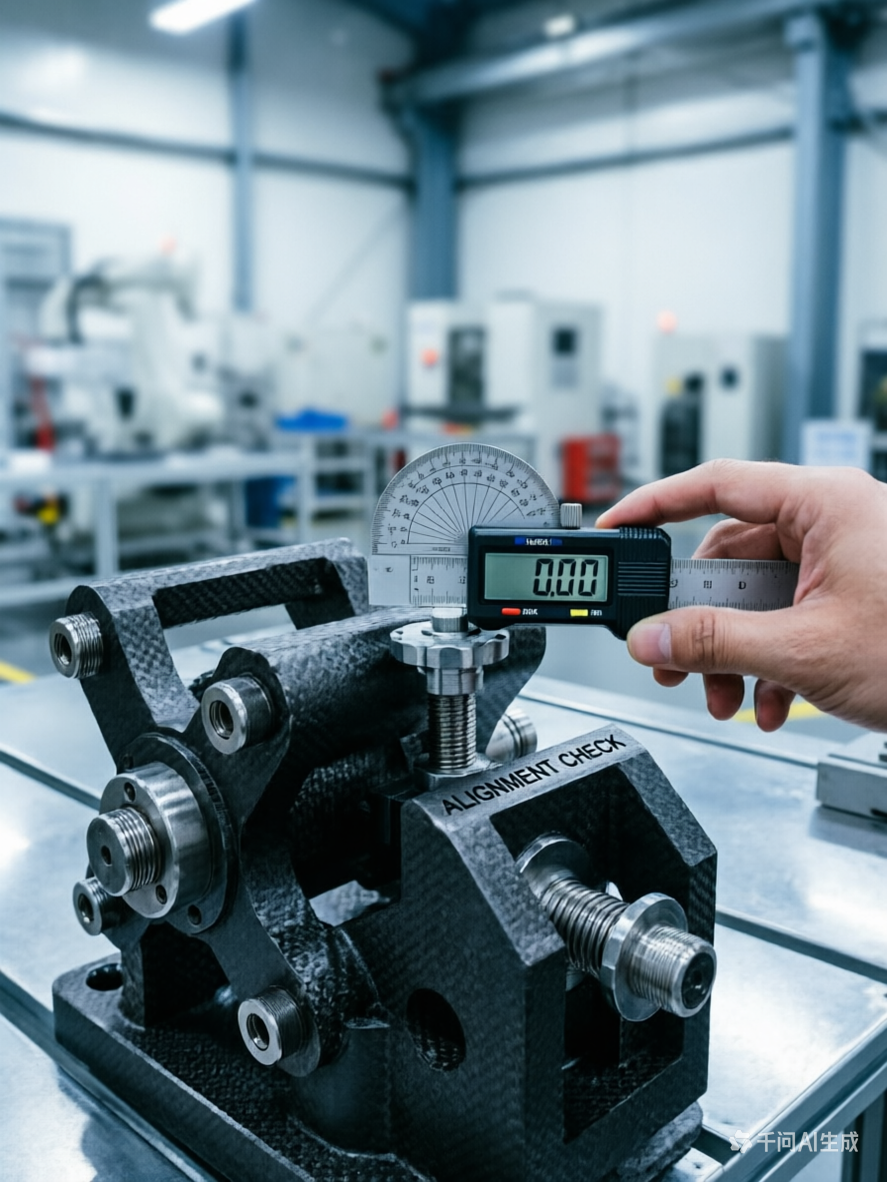

Develop a fixture inspection checklist to measure critical positioning points using a standard sample or a coordinate measuring machine (CMM) during each shift.
Set wear limits (e.g., replace positioning pins when their diameter wears down by 0.2 mm).
Design positioning pins with a quick-change structure (e.g., sleeve + standard pin) to minimize downtime.
Quality Assurance: Regular inspections can detect drift trends early, allowing corrections to be made before defective parts are produced.
Manual toggle clamps may become loose after tens of thousands of opening and closing cycles; pneumatic clamps may experience a drop in thrust due to air pressure fluctuations or aging seals. When clamping force is insufficient, welding thermal stress can easily displace the workpiece, resulting in misalignment or excessive gaps.
Countermeasures:
Select branded clamps with specified rated clamping forces, and choose the appropriate model based on workpiece rigidity (500–1000 N for thin plates, up to 3000 N for thick plates).
Establish a daily cleaning routine: Spatter lodged in the clamping mechanism’s rotating shaft is a common source of failure; use anti-spatter coatings or copper shields.
For critical welds, install pressure sensors or position sensors; the equipment should alarm and prevent welding if the clamping force does not reach the set value.
Quality Assurance: Stable clamping force ensures dimensional consistency after welding, which is particularly critical for sensitive materials such as aluminum alloys.
Many fixtures are placed directly against the weld seam. During prolonged welding, heat is conducted through the workpiece to the fixture base, causing thermal expansion or even permanent bending of the positioning plates and support plates. This phenomenon is particularly pronounced during the welding of thin sheets or continuous welding of long seams.
Countermeasures:
Install thermal insulation pads between the fixture and the workpiece (e.g., ceramic fiber sheets, copper alloy heat-conducting blocks with air channels).
For high-heat processes, design water-cooling channels or use air-cooling guns to intermittently cool the fixture.
Adopt a box-type or triangular rib structure for the fixture to enhance thermal rigidity.
Quality Assurance: Reducing thermal deformation of the fixture directly improves workpiece positioning accuracy under high-temperature conditions and prevents post-weld dimensional deviations.
Sometimes, fixture designs are too “compact”; after welding, the workpiece expands and gets stuck on the locating pins, forcing workers to tap it out with excessive force, which causes workpiece deformation or fixture damage. This not only affects efficiency but also compromises quality.
Countermeasures:
Round off the top of the locating pins and design an ejector (spring ejector pins or pneumatic ejector cylinders).
For deep cavity structures, add removal slots or rotary indexing clamps.
Use a combination of tapered pins and diamond-shaped pins to ensure positioning accuracy while facilitating loading and unloading.
Quality Assurance: Smooth loading and unloading reduces accidental impacts and forced adjustments, protecting the welds and the base material surface.
Some fixture issues only become apparent after production begins: for example, clamping positions may obstruct the welding gun’s reach, or the clamping sequence may cause the workpiece to warp. This indicates that welding paths and deformation trends were not thoroughly analyzed prior to design.
Countermeasures:
Use 3D simulation software to model the welding gun’s trajectory and ensure that clamping elements maintain a safety distance of ≥10 mm from the weld seam.
For complex structures, first use finite element analysis to predict welding distortion, then incorporate anti-distortion angles or add auxiliary supports to the fixture.
Record all interference points during the first-piece trial production and modify the fixture immediately (3D-printed fixture prototyping enables rapid iteration).
Quality Assurance: The seamless integration of manufacturing processes and fixtures eliminates fundamental defects such as “failed welds” or “inability to secure the workpiece.”
In many workshops, fixtures are only repaired after they break, and there is no record of previous repairs or replaced parts. This reactive management approach makes it difficult to ensure consistent quality over the long term.
Solution:
Assign a unique identification number to each fixture and create an electronic record containing: design drawings, details of each repair, a list of replaced parts, and inspection records.
Define a fixture lifecycle (e.g., perform a major overhaul after 100,000 clamping cycles, replacing all wear-prone parts).
Conduct periodic repeatability accuracy tests on fixtures (clamp the same workpiece 10 times and measure the standard deviation of critical dimensions).
Quality Assurance: Traceable fixture status allows for the identification of causes behind fluctuations in welding quality. When quality issues arise, it enables rapid determination of whether the problem lies with the fixture or the parameters.
When addressing issues with welding fixtures, we cannot wait until defective products are produced before “debugging” them. The most cost-effective approach is: preventive maintenance + process monitoring + rapid feedback.
Preventive Maintenance: Establish inspection and wear-part replacement schedules based on the number of clamping cycles or elapsed time.
Process Monitoring: Perform online detection of clamping force and check for foreign objects in the positioning area (using sensors or vision systems).
Rapid Feedback: Frontline operators can report fixture anomalies with a single click, and process engineers respond with improvements within 24 hours.
When these measures are fully implemented, welding fixtures will no longer be a “quality risk point” but will become a “quality safeguard.” You will reap three direct benefits: a scrap rate reduction of over 50%, a 70% reduction in changeover and debugging time, and virtually zero customer complaints.
Whether at manual welding stations or robotic welding lines, keep this engineering adage in mind: “Good welding quality starts with stable fixtures, and stable fixtures start with proactive management.”
