6061‑T6 aluminum alloy has become the industry standard for structural frames, bicycle frames, aerospace components, robotic systems, and precision tooling, thanks to its excellent strength‑to‑weight ratio, corrosion resistance, weldability, and machinability. However, to go from extruded or rolled aluminum stock to a qualified finished frame, manufacturing engineers must conquer “two mountains” :
Welding: Aluminum’s high thermal conductivity (about three times that of steel) and large coefficient of thermal expansion make thin‑walled frame structures prone to angular distortion, bending, and buckling. Moreover, welding heat input causes softening in the heat‑affected zone (HAZ) of T6‑tempered material – strength loss can reach up to 80%.
Machining: Although 6061 is known for its good machinability, frames typically have thin walls, deep cavities, and long overhangs – low‑rigidity features that lead to tool deflection and chatter during cutting.
Welding and machining are not isolated steps – weld quality determines the reliability of machining datums, and machining precision determines the final assembly performance of the frame. This article systematically addresses the entire manufacturing chain for 6061 frames, from welding process optimization to CNC machining parameter tuning.

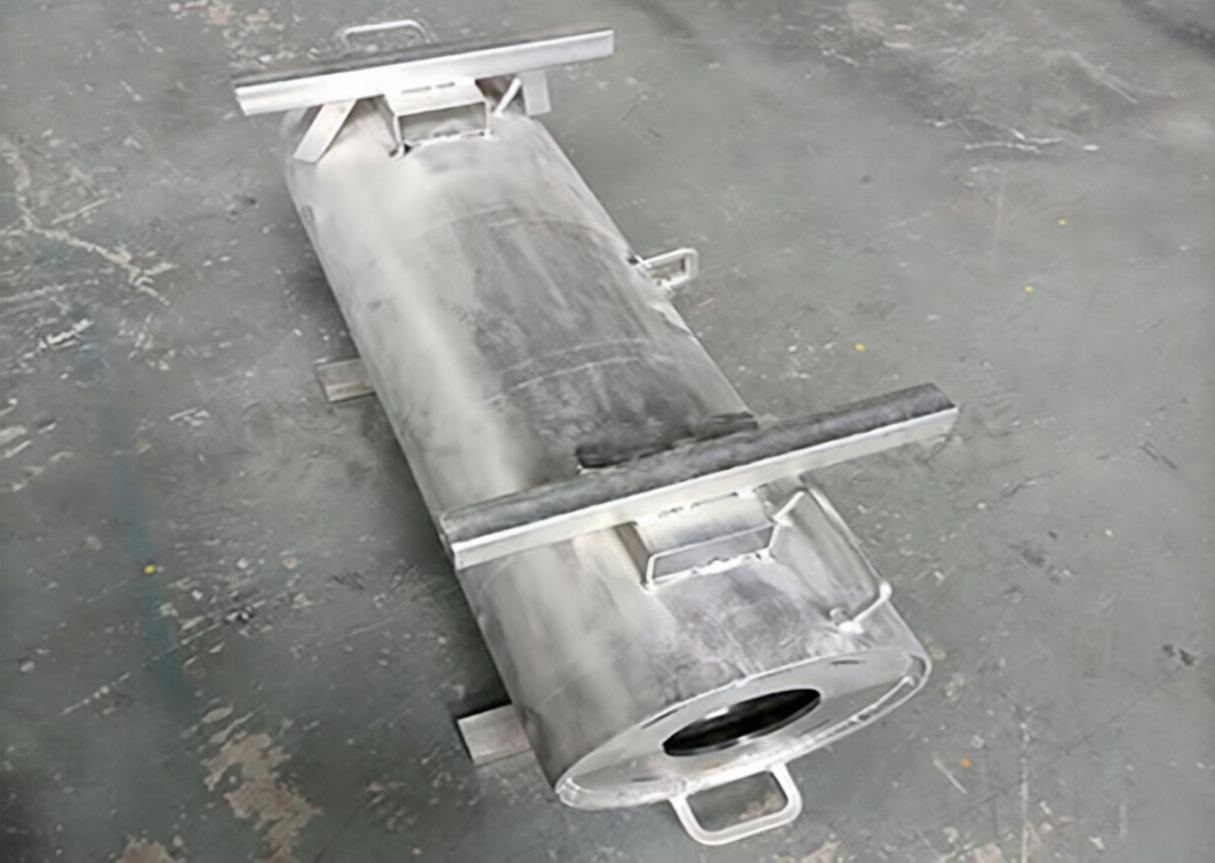

For 6061 aluminum, TIG (GTAW) and MIG (GMAW) are the two main processes.
Welding Method | Advantages | Disadvantages | Typical Applications |
|---|---|---|---|
TIG (AC) | Good bead appearance, precise heat input control, ideal for thin‑wall tubes (2‑3 mm) | Slower speed, highly skill‑dependent | Precision frames, bicycle frames, appearance‑critical structures |
MIG (Pulsed) | High deposition rate, fast welding speed, suitable for batch production | Higher heat input, requires spatter control | High‑volume frames, thicker sections |
Studies show that MIG‑welded joints can achieve tensile strengths about 82% higher than TIG joints, but TIG excels in controlling distortion and bead quality for thin‑walled frames. For 6061 frame structures, “TIG welding + T6 heat treatment” is the classic combination – welding provides the connection, while heat treatment restores strength.
Taking TIG welding of 6061‑T6 thin‑walled frames as an example, the optimal parameters obtained via Response Surface Methodology are:
Parameter | Optimized Value | Remarks |
|---|---|---|
Welding Current | 240 A (AC) | Balance between penetration and heat input |
Welding Voltage | 20 V | Arc stability vs. heat input |
Travel Speed | 11 mm/s | Ensures penetration while limiting heat input |
For MIG welding, the pulse waveform parameters (peak current, base current, pulse frequency, duty cycle) significantly affect droplet transfer, bead shape, and porosity. In practice, a step‑test approach (trying 3‑5 values above and below the recommended range) is recommended to determine the optimal settings.
The core reasons for distortion in 6061 frames are high thermal conductivity (wide heat‑affected zone) and large coefficient of thermal expansion (about twice that of steel), which cause pronounced angular and bending distortion during welding.
Strategy 1: Optimized Welding Sequence – “Symmetrical, weak‑first‑then‑strong”
Use symmetrical welding: start from the centre of the frame and weld alternately towards both ends, balancing heat input to counteract distortion.
Weld less‑rigid areas first, then more‑rigid areas: allow distortion to occur in the less‑constrained regions early, and use the rigid parts to “lock in” the final dimensions.
Segmented skip welding: for long seams, weld in sections (50‑100 mm each) with cooling pauses between sections to reduce heat accumulation.
Strategy 2: Rigid Fixturing – “Hold the workpiece firmly in place”
Design modular adjustable fixtures that provide strong clamping at critical nodes.
Fixtures should offer constraint as close as possible to the weld zone while maintaining torch accessibility.
For thin sheets (0.5 mm range), use lever‑type precision clamps that apply even pressure on both sides of the weld.
Strategy 3: Tack Welding
Before full welding, apply multiple tack welds along the joint at 50‑100 mm intervals to “pre‑position” the frame in its correct geometry.
Tack welds themselves introduce some stress, so keep tack length to 5‑10 mm to avoid excessive heat input.
This is the most overlooked yet most critical step in 6061 frame manufacturing.
6061‑T6 is a heat‑treatable alloy (solution treatment + quenching + artificial aging). During welding, temperatures in the HAZ exceed the aging temperature (≈180°C), causing precipitates to coarsen or re‑dissolve, leading to a drastic drop in strength – the region around the weld behaves essentially like 6061‑O (annealed), losing about 80% of its strength.
Recovery options:
Full T6 treatment: solution treatment (530‑540°C, 30‑60 min) → water quench → artificial aging (175‑180°C, 8‑10 hours). This restores T6 properties to the entire frame.
Local aging (not recommended) : applying a low‑temperature aging (180°C, 4‑6 hours) only to the weld area can partially recover strength, but not to full T6 level.
Engineering advice: for load‑bearing 6061 frames, post‑weld T6 treatment should be considered mandatory, not optional. For non‑structural or low‑stress frames, it may be omitted.
6061‑T6 has good machinability among aluminum alloys, but frame structures typically feature thin walls, deep cavities, and long overhangs – low‑rigidity features that pose three main challenges:
Tool deflection: cutting force causes thin walls to move, leading to dimensional errors.
Chatter: self‑excited vibration due to insufficient system rigidity, degrading surface finish.
Built‑up edge (BUE): aluminum tends to adhere to the cutting edge, causing built‑up material that scratches the machined surface.
Tool Parameter | Recommended Choice | Reason |
|---|---|---|
Tool Material | Carbide | High wear resistance, maintains sharp edge longer |
Helix Angle | 30°‑45° (high helix) | Smooth engagement, lower cutting forces |
Edge Preparation | Polished rake face | Prevents aluminium adhesion, suppresses BUE |
Number of Flutes | 3 (roughing) / 2‑3 (finishing) | Large chip space, smooth chip evacuation |
Tool holder: Prefer hydraulic or shrink‑fit holders (runout ≤ 0.005 mm) to avoid excessive runout from collet chucks, which can cause chatter.
Research confirms that spindle speed is the most influential factor on surface roughness (Ra) when milling 6061, contributing up to 88.76% of the effect. Feed rate is the second most important, while depth of cut has relatively minor influence.
Recommended parameter ranges (face milling of 6061‑T6):
Parameter | Recommended Range | Optimization Goal |
|---|---|---|
Cutting Speed (Vc) | 150‑220 m/min | Higher speed improves Ra |
Feed Rate (vf) | 100‑200 mm/min (finishing) | Lower feed yields better Ra |
Depth of Cut (ap) | 0.1‑0.3 mm (finishing) | Light cuts reduce cutting forces |
Spindle Speed | 5000‑15000 rpm | Calculate based on tool diameter |
Research data: at vf = 150 mm/min, Vc = 220 m/min, and ap = 0.1 mm, the achieved surface roughness can be as low as Ra 0.103 μm.
High‑speed machining (HSM) uses light cuts, high spindle speeds, and high feed rates to drastically reduce cutting forces, making it particularly suitable for 6061 thin‑walled frames.
Recommended HSM parameters:
Spindle speed: 7000‑15000 rpm (adjust for tool diameter)
Feed rate: 500‑1000 mm/min
Depth of cut: 0.1‑0.2 mm (finishing)
Radial depth of cut: 0.5‑1.0 mm (sidewall finishing)
Research shows that increasing cutting speed into the high‑speed range significantly improves surface roughness (Ra) while also optimising energy efficiency.
Toolpath strategies:
Climb milling: chip thickness decreases from thick to thin, reducing friction and work hardening.
Unidirectional passes: for sidewall finishing, move in one direction only – avoid reciprocating passes that can promote chatter.
Helical or ramp‑in entry: avoid vertical plunging that creates impact marks.
Add auxiliary supports: use adjustable support pins or fill material behind thin walls.
Layer‑by‑layer finishing: for sidewalls taller than 50 mm, finish in 2‑3 layers, gradually increasing the tool contact height.
Leave stock + final light pass: leave 0.1‑0.2 mm for semi‑finishing, then use a fresh tool for a final pass with minimal depth (0.02‑0.05 mm).
Successful 6061 frame manufacturing depends on the interplay between welding and machining:
Synergy Point | Specific Measures |
|---|---|
Welding provides stable machining datums | Post‑weld T6 treatment eliminates residual stress, preventing distortion during machining. |
Machining compensates for welding distortion | Measure the actual distortion after welding; adjust the coordinate system or stock allocation during finishing. |
Optimised process sequence | Weld → post‑weld heat treatment → datum machining → semi‑finishing → natural aging (24h) → finishing. |
High‑quality 6061 frame = the right welding method + optimised welding parameters + effective distortion control + full T6 heat treatment + sharp tools + rational high‑speed machining parameters + synergy between welding and machining
6061‑T6 aluminum frame manufacturing is not a simple addition of welding and machining – it is a holistic, process‑wide collaborative optimisation. From the 240 A welding current to the 150 mm/min feed rate, from rigid pre‑weld fixturing to post‑weld T6 treatment, every parameter and every step contributes to the final quality of the frame.
