Detailed Engineering Specifications
Parameter (参数) | Specification / Standard (标准规格) |

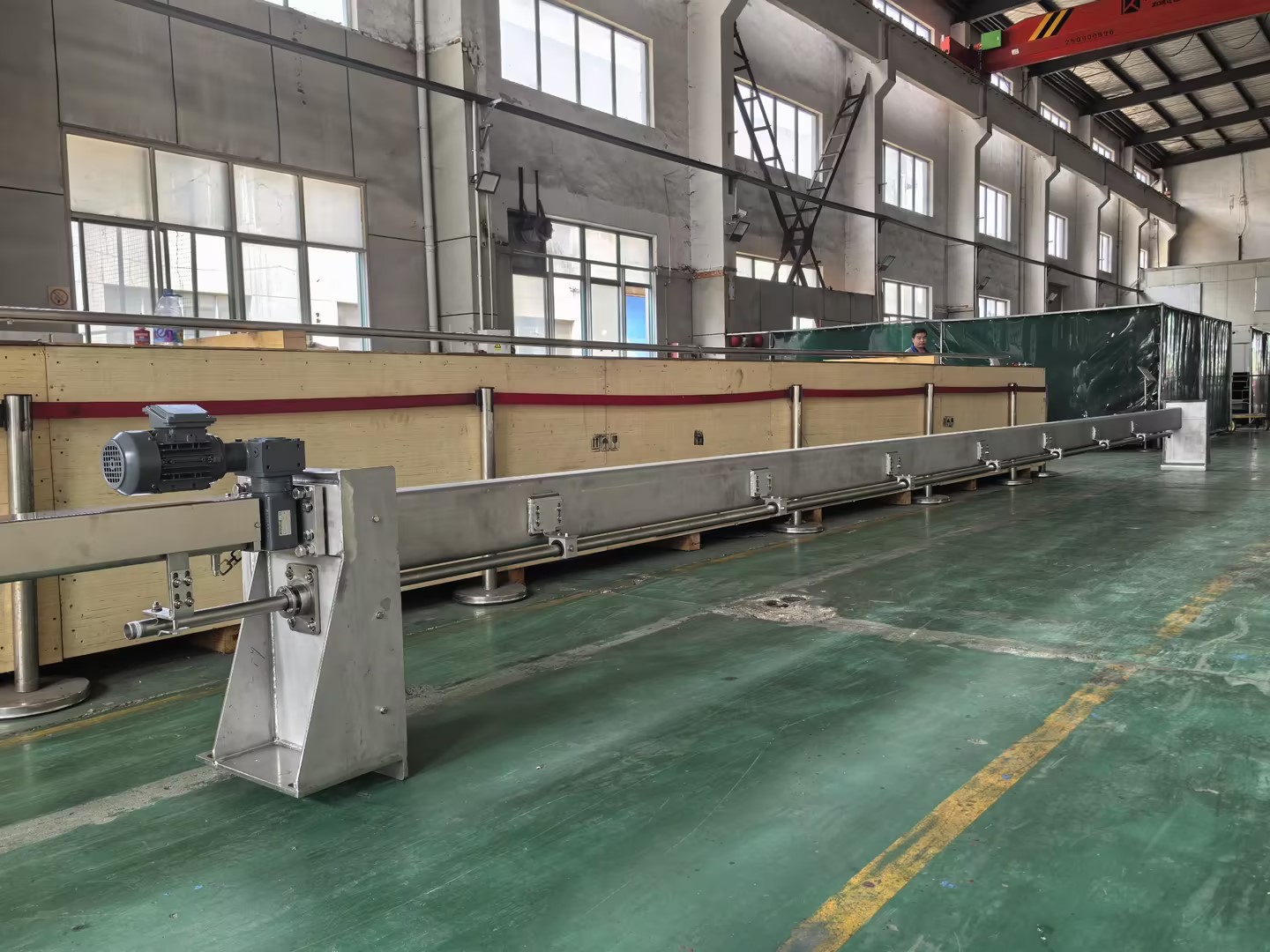

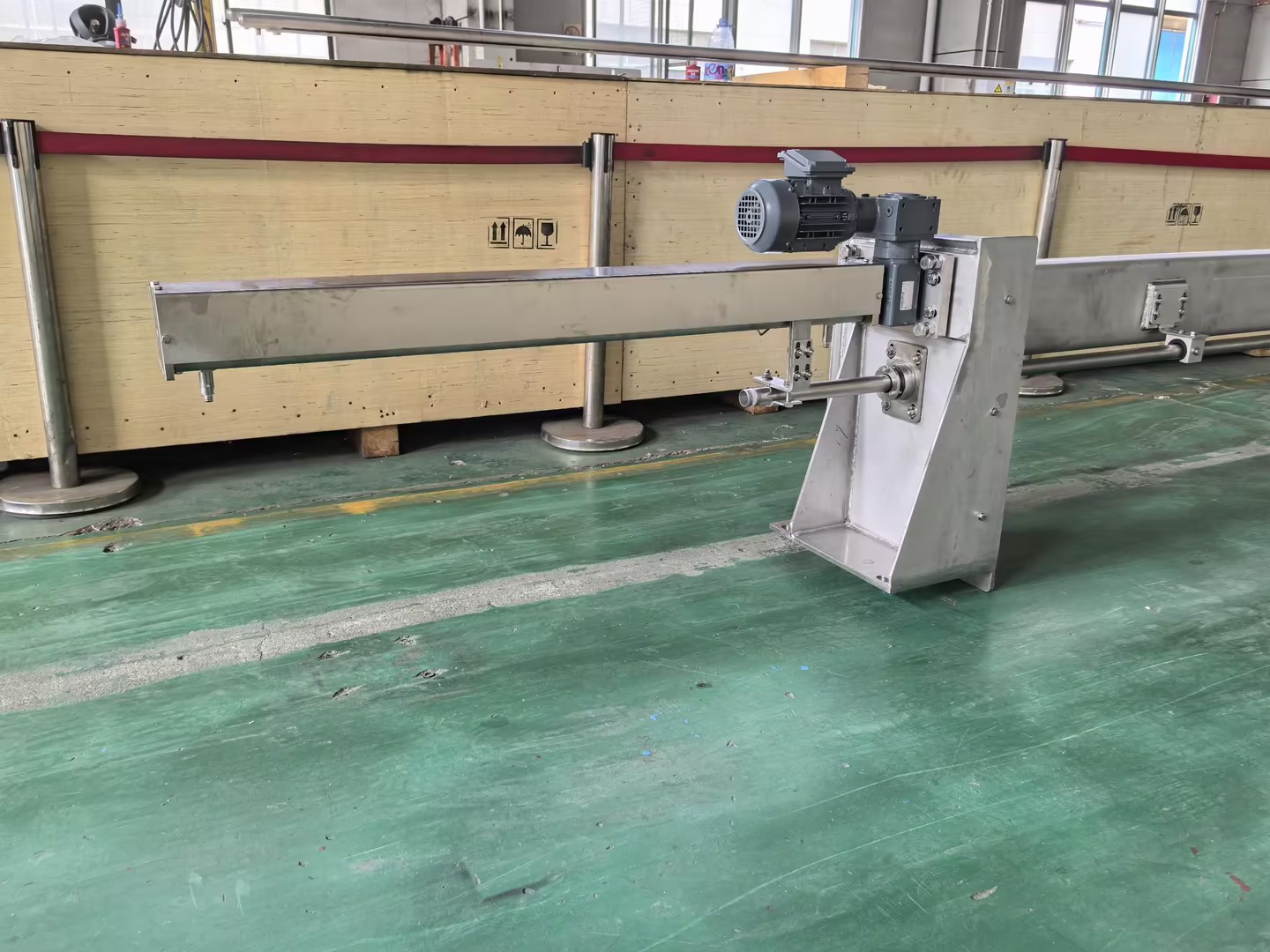

Product Name | Stainless Steel Oscillating Shower Pipe System |
Application Industry | Paper & Pulp Mill Machinery |
Material Grade | SS304, SS316L, Duplex Stainless Steel (Customizable) |
Pipe Diameter (DN) | DN40, DN50, DN65, DN80, or Custom Sizes |
Oscillation Speed | Adjustable (Match with paper machine wire/felt speed) |
Drive System Option | Motorized Drive (Electric) / Pneumatic Linear Actuator |
Max Working Pressure | Up to 60 Bar (High-pressure needle jet cleaning) |
Nozzle Types | Needle Jet Nozzles, Fan Spray Nozzles, Self-cleaning Nozzles |
Key Benefits for Paper Mill Production (核心应用优势)
Prevent Fabric Damage: The smooth motorized tracking system ensures the high-pressure water jets stroke uniformly across the moving felt, preventing premature wear or striping on your expensive paper machine clothing.
Anti-Clogging Performance: Optional internal brush or self-cleaning nozzle designs allow for the use of clarified white water, drastically reducing freshwater consumption in the paper mill.
Precision Steel Fabrication: As an experienced OEM industrial contractor, every spray header is custom-welded and precision-machined (via CNC machining and advanced steel fabrication) to guarantee zero leakage and exact alignment with your Fourdrinier framework.
Frequently Asked Questions
Q1: How do you choose between SS304 and SS316L for a paper machine shower pipe?
A: SS304 is suitable for general water environments with lower chemical exposure. For paper mills utilizing recycled water, bleaching agents, or high-corrosion chemicals in the press section, we highly recommend SS316L or duplex stainless steel to maximize equipment lifespan.
Q2: Can this spray header pipe be customized for existing paper mill machinery?
A: Yes. We specialize in custom industrial steel fabrication. We can manufacture the shower pipes based on your CAD drawings, matching the exact length, nozzle spacing, mounting brackets, and motor specifications required by your paper production line.
