Stellite Hardfacing for Shaft Repair: How to Restore Worn Shafts to Like-New Condition

Views: 0     Author: Site Editor     Publish Time: 2026-07-01      Origin: Site

Inquire

Introduction: The High Cost of Shaft Failure

In heavy industry, rotating shafts are the lifelines of machinery — from turbines and compressors to pumps, rollers, and marine propulsion systems. These shafts operate under extreme conditions: high loads, elevated temperatures, corrosive environments, and continuous friction. Over time, even the best-engineered shafts suffer from wear, scoring, galling, corrosion, or fretting at bearing journals, seal lands, and coupling surfaces.

When a critical shaft wears beyond tolerance, the traditional solution has been replacement — a costly and time-consuming process that can involve weeks or months of lead time, especially for large or custom-forged shafts. However, there is a proven, cost-effective alternative: Stellite welding (hardfacing) repair.

Stellite is a family of cobalt-chromium-tungsten (or molybdenum) alloys renowned for exceptional wear resistance, corrosion resistance, and the ability to maintain hardness at high temperatures (up to 800°C+). When applied as a hardfacing layer via welding, Stellite can restore worn shaft dimensions while actually improving the surface properties beyond the original specification.

This guide provides a comprehensive overview of shaft repair using Stellite welding — covering the materials, the process, quality control, and the key factors that determine a successful repair.

What Is Stellite? Understanding the Material

Stellite is not a single alloy but a family of cobalt-based alloys developed by Elwood Haynes in the early 1900s. The most common grades used in shaft repair include:

Grade

Composition (approx.)

Key Properties

Typical Applications

Stellite 1

Co-32Cr-12.5W-2.5C

Highest hardness, excellent wear resistance

Extreme wear applications, valve seats

Stellite 3

Co-31Cr-12.5W-2.4C

Very high hardness, good corrosion resistance

Pump sleeves, extruder screws

Stellite 6

Co-28Cr-4.5W-1.2C

Balanced toughness and wear resistance

Most common for shaft repair, valve trim, bearing journals

Stellite 12

Co-30Cr-8W-1.5C

Higher hardness than Stellite 6

Severe wear applications

Stellite 21

Co-27Cr-5.5Mo-0.25C

Excellent corrosion resistance, lower hardness

Chemical processing, high-temperature corrosion

Why Stellite 6 is the workhorse for shaft repair:

  • Excellent wear resistance — outperforms stainless steel and tool steels in abrasive and adhesive wear

  • Good toughness — resists cracking during welding and in service

  • Corrosion resistance — withstands many aggressive media

  • High-temperature stability — retains hardness up to 800–900°C

  • Compatibility — can be applied to most common shaft materials (carbon steel, alloy steel, stainless steel)

The Shaft Repair Process: Step by Step

Successful Stellite welding repair is a multi-stage process that demands careful planning, precise execution, and rigorous quality control. Each step is critical to the final result.

Step 1: Assessment and Preparation

Before any welding begins, the shaft must be thoroughly inspected:

  • Dimensional inspection: Measure the worn area to determine the extent of material loss and the required build-up thickness.

  • Non-destructive testing (NDT) : Perform dye penetrant (PT) or magnetic particle (MT) inspection to detect any cracks in the worn area. Cracks must be completely removed before welding — they will not heal during the welding process and will propagate through the new deposit.

  • Material verification: Confirm the shaft’s base material to select the appropriate Stellite grade and welding parameters.

  • Pre-machining: The worn area is typically pre-machined to remove damaged material, create a uniform surface, and establish a consistent geometry for welding. A typical pre-machining depth is 1–3 mm below the original surface, depending on the wear depth.

Step 2: Preheating — The Critical First Step

Preheating is essential for Stellite welding on shafts. Without proper preheat, the rapid cooling of the weld deposit can lead to:

  • Cracking in the Stellite layer or the heat-affected zone (HAZ)

  • Hydrogen embrittlement

  • Poor fusion between the Stellite and the base material

Typical preheat temperatures:

  • Carbon steel shafts: 250–350°C

  • Alloy steel shafts: 300–400°C

  • Stainless steel shafts: 150–250°C

Preheating is typically achieved using induction heatingresistance heating, or gas burners, with temperature monitored continuously using thermocouples or pyrometers. The shaft must be heated evenly to avoid thermal distortion.

Step 3: Welding — The Stellite Application

Stellite is applied using various welding processes:

Process

Advantages

Typical Applications

TIG (GTAW) with Stellite filler rod

High quality, precise control, minimal dilution

Precision shafts, small to medium diameters

Plasma Transferred Arc (PTA)

High deposition rate, low dilution, excellent quality

Large shafts, high-volume production

SMAW (Stick welding) with Stellite electrodes

Portable, simple equipment

Field repairs, large shafts

Oxy-fuel welding

Low cost, simple

Small repairs, less critical applications

PTA welding has become the preferred method for many professional shaft repair shops because it offers:

  • Deposition rates of 1–5 kg/hour

  • Dilution rates as low as 5–10% (compared to 20–30% for TIG)

  • Excellent control over deposit thickness and consistency

  • Reduced risk of cracking

Key welding parameters (TIG / PTA) :

  • Welding current: 150–300 A (depending on shaft diameter and Stellite grade)

  • Travel speed: 100–300 mm/min

  • Deposit thickness per pass: 1.5–3 mm

  • Shielding gas: Argon (99.99% purity) at 10–20 L/min

Layer application: For shaft repairs requiring significant build-up, Stellite is applied in multiple layers. The first layer acts as a bonding layer, with subsequent layers building the required thickness. Each layer is carefully controlled to avoid excessive heat input, which can cause dilution or distortion.

Step 4: Interpass Temperature Control

Throughout the welding process, the interpass temperature must be maintained within a specific range. If the temperature drops too low, the risk of cracking increases. If it rises too high, the Stellite may suffer from grain growth or loss of hardness.

Typical interpass temperature range : 250–450°C (depending on Stellite grade and base material)

Step 5: Post-Weld Heat Treatment (PWHT)

After welding is complete, the shaft requires controlled cooling and, in many cases, a post-weld heat treatment:

  • Slow cooling: The shaft is typically covered with insulating blankets or placed in a furnace to cool slowly to room temperature, preventing thermal shock and cracking.

  • Stress relief: For large or highly restrained shafts, a stress-relief heat treatment at 600–650°C for 2–4 hours may be performed to relieve residual stresses.

Step 6: Post-Weld Machining — Restoring Final Dimensions

Once the shaft has cooled, the Stellite deposit is machined back to the original dimensions:

  • Rough machining: Turning or grinding to remove excess material and achieve approximate dimensions.

  • Finish grinding: Precision grinding to achieve the final diameter, surface finish (typically Ra 0.4–0.8 μm for bearing journals), and concentricity.

  • Final inspection: Dimensional inspection, surface roughness measurement, and NDT (PT or MT) to verify the integrity of the Stellite layer.

Critical Success Factors for Stellite Shaft Repair

Factor

Why It Matters

Best Practice

Preheat and interpass temperature

Prevents cracking and ensures proper fusion

Use induction heating with continuous temperature monitoring

Dilution control

Excessive dilution reduces Stellite‘s wear resistance

Keep dilution <15% (PTA welding) or <25% (TIG)

Layer thickness

Too thin = insufficient wear resistance; too thick = cracking risk

Apply in multiple passes of 1.5–3 mm per layer

Cooling rate

Rapid cooling causes cracking and residual stress

Slow cool with insulating blankets or furnace cool

Base material compatibility

Different shaft materials require different Stellite grades

Match Stellite grade to shaft material and service conditions

Post-weld machining

Poor machining can damage the Stellite layer

Use carbide tools or grinding; avoid excessive heat

Quality Assurance: How to Verify a Successful Repair

A properly performed Stellite shaft repair should meet or exceed the original shaft‘s performance. The following quality checks are essential:

  1. Hardness testing: The Stellite deposit should achieve the specified hardness range (typically 38–48 HRC for Stellite 6, higher for other grades).

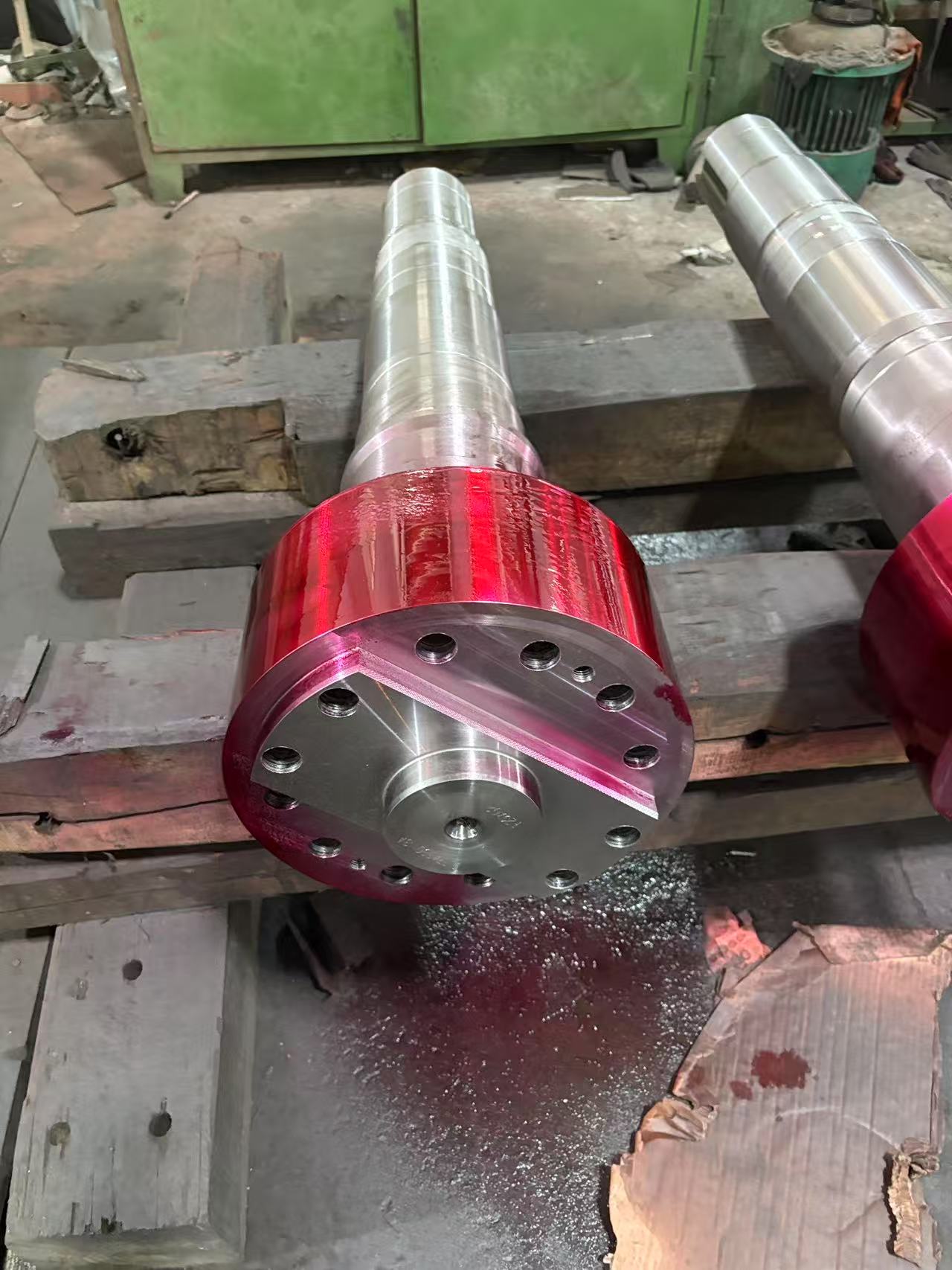

  2. Dye penetrant or magnetic particle inspection: No cracks, porosity, or lack of fusion in the Stellite layer or HAZ.

  3. Dimensional inspection: Final diameter, concentricity, and surface finish must meet drawing requirements.

  4. Metallographic examination (for critical applications): Cross-section analysis to verify fusion, dilution, and the absence of defects.

  5. Bond strength testing (destructive, on test coupons): Verifies that the Stellite layer is metallurgically bonded to the base material.

Stellite Welding vs. Alternative Shaft Repair Methods

Method

Advantages

Disadvantages

Best For

Stellite Welding

Excellent wear/corrosion resistance, high-temperature capability, restores dimensions

High cost, requires skilled welders, preheat/post-weld heat treatment

High-value shafts, severe service conditions

Thermal Spray (HVOF/Plasma)

Lower heat input, minimal distortion, wide material choice

Lower bond strength, porosity possible, thickness limitations

Large shafts, heat-sensitive materials

Chrome Plating

Hard surface, good wear resistance

Environmental concerns (hexavalent chromium), thickness limitations, poor impact resistance

Light-duty shafts, decorative finishes

Nitriding/Carburizing

Case hardening, minimal dimensional change

Limited case depth, not suitable for heavy wear

Shafts requiring surface hardness without dimension build-up

Shaft Replacement

New, guaranteed performance

High cost, long lead time, material waste

Small shafts, when repair cost exceeds replacement cost

Applications: Where Stellite Shaft Repair Is Most Valuable

Stellite welding repair is particularly valuable in industries where shafts are:

  • Large and expensive to replace (e.g., turbine shafts, roller shafts, propeller shafts)

  • Subject to extreme wear (e.g., pump shafts, extruder screws, mill rolls)

  • Operating in high-temperature environments (e.g., gas turbine shafts, furnace rollers)

  • Exposed to corrosive media (e.g., chemical processing, marine environments)

  • Critical to production — where downtime costs far exceed repair costs

Typical repaired components :

  • Turbine shafts and rotor shafts

  • Pump shafts and impeller shafts

  • Roller shafts in steel and paper mills

  • Marine propeller shafts

  • Compressor and blower shafts

  • Extruder screws and shafts

  • Shaft journals and bearing surfaces

Conclusion: Stellite Welding — The Gold Standard for Shaft Repair

Stellite welding offers a proven, reliable, and cost-effective solution for restoring worn shafts to service. When performed correctly — with proper preheating, controlled welding parameters, and rigorous quality assurance — a Stellite-repaired shaft can outperform the original, offering superior wear resistance, corrosion protection, and extended service life.

For engineers and maintenance professionals facing the challenge of a worn critical shaft, the decision is clear: Stellite welding repair often delivers the best balance of cost, lead time, and performance — keeping machinery running and production moving.
