Forged Annular Gear PD122919038 — Internal Ring Gear, Forged for Load, Machined for Mesh

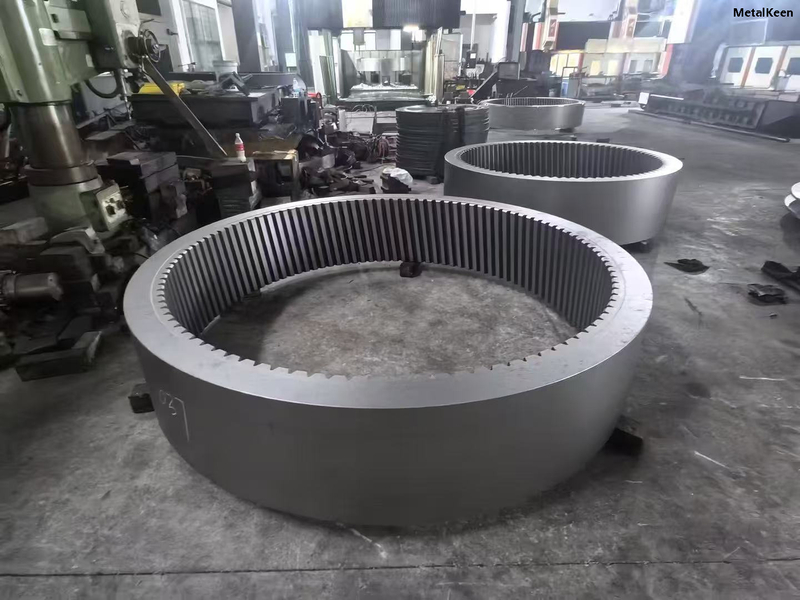

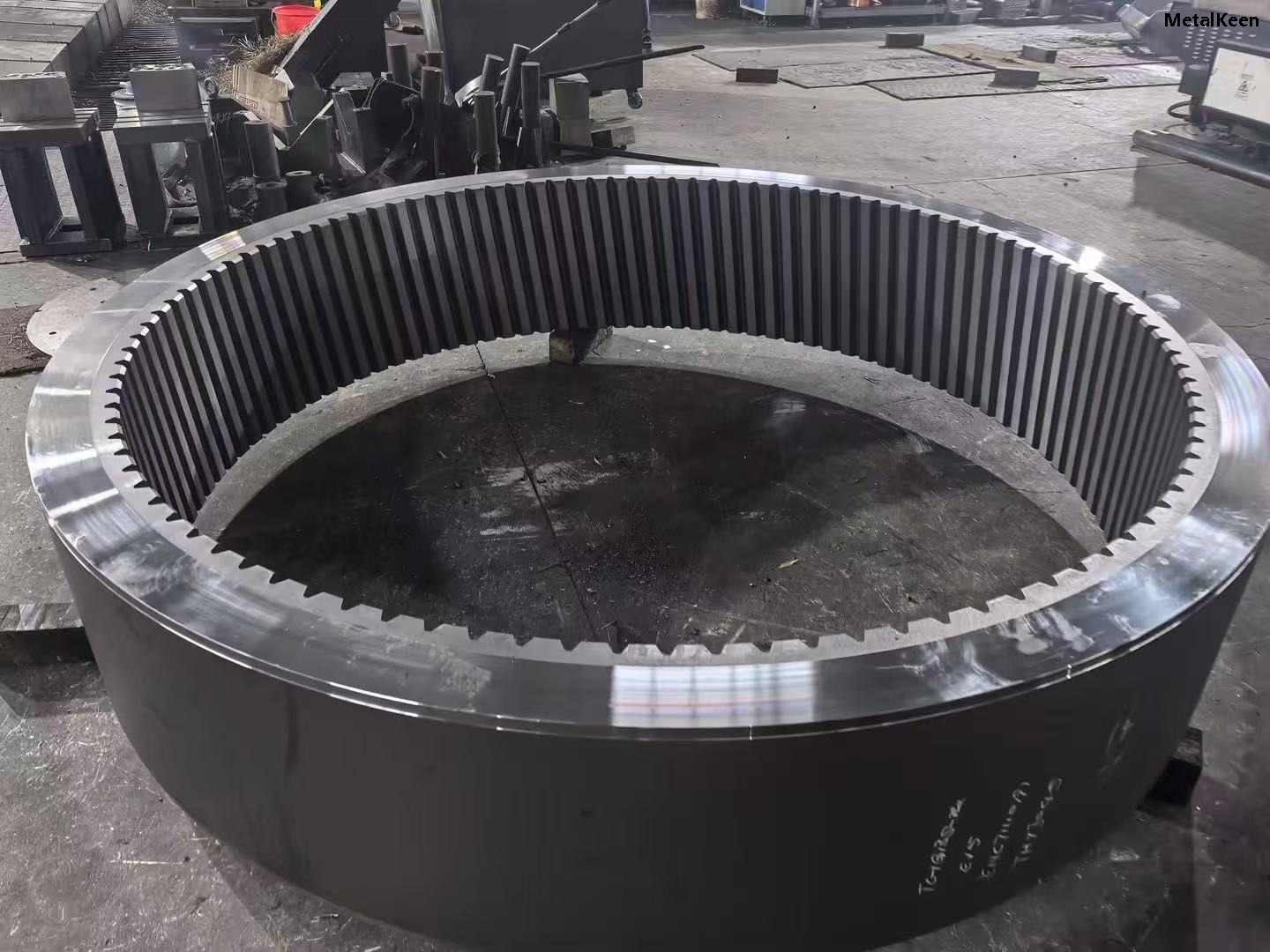

A forged annular gear is a ring-shaped gear whose teeth are cut on the inner circumference, meshing with an external pinion rather than another external gear。This inward-facing tooth geometry is what distinguishes an annular gear from a conventional external ring gear — the two are often conflated in sourcing conversations, but they require different machining methods, different inspection criteria, and in many cases different forging strategies. The assembly on this page, built under part reference PD122919038, is an internal-toothed annular gear produced by forging followed by precision gear machining at Metalkeen.
Forged vs. Cut-from-Solid: Why the Starting Stock Matters
The more consequential sourcing question is not “internal or external,” but how the gear blank is made。An annular gear cut from a solid plate or tube can meet dimensional tolerances, but its grain flow is interrupted at the tooth roots — a fatigue-sensitive zone in high-torque, reversing, or shock-loaded service。A forged annular gear, by contrast, develops continuous grain flow that follows the ring contour, improving tooth-root fatigue resistance and structural integrity under cyclic load.
Metalkeen’s process sequence for this part:
Engineering review → Forging (ring rolling / closed-die) → Heat treatment → CNC turning → Gear tooth machining (hobbing / shaping) → Grinding → Inspection → Packaging
The forging step is specified not as a cost-reduction substitute for cutting, but as a fatigue-life decision — particularly relevant for planetary drives, wind-turbine yaw/pitch systems, mining swing drives, and mill girth-gear positions where the annular gear is the torque-limiting element.
Technical Specifications
Parameter | Capability / Standard |
|---|
Product type | Forged annular gear / internal ring gear |
Gear configuration | Internal teeth (standard); external-tooth ring gear variant available |
Materials | 42CrMo, 42CrMo4, AISI 4340, 40CrNiMo, 34CrNiMo6, 18CrNiMo7-6, 20CrMnTi; carbon steel on request |
Manufacturing route | Forging (ring rolling / closed-die) → heat treatment → CNC turning → gear machining → grinding |
Tooth machining methods | Hobbing, shaping, power skiving; precision grinding for high-accuracy classes |
Achievable gear quality | AGMA 10–12 (DIN/ISO equivalent per drawing); general industrial grades available |
Heat treatment | Quenching & tempering, case hardening, nitriding, induction hardening — selected by load and fatigue requirement |
Inspection | Gear profile inspection, lead/pitch check, CMM dimensional inspection, hardness test, material certification (EN 10204 3.1 available) |
Surface finish / coating | Precision machined; anti-corrosion coating on request |
Internal vs. External: A Selection Note
The term “ring gear” covers both internal-toothed and external-toothed rings, but they serve different drivetrain architectures:
Internal annular gears mesh with a pinion inside the ring bore. They enable coaxial, compact planetary layouts with 20–50% higher load capacity through superior contact geometry, and are the default for planetary reducers, wheel drives, and robotic joints.
External ring gears carry teeth on the outside. They appear in slewing rings, crusher drives, mill girth gears, and automotive differentials — applications where the ring itself is the large rotating member rather than the enclosing member.
A forged annular gear with internal teeth is specified when the application combines compact geometry with high torque density and fatigue-critical tooth roots — planetary stages, wind-turbine pitch/yaw drives, and mining swing drives being the clearest cases.
If the drawing calls for an external-tooth configuration, Metalkeen machines the ring as an external ring gear; the forging route and inspection protocol remain the same, while tooth cutting shifts from internal shaping to hobbing or external shaping.
Risk in a split forging / machining supply chain | Metalkeen control point |
|---|
Forging supplier optimizes for fill, not tooth-root grain flow | Forging process reviewed against gear-machining stock allowance and grain-flow direction |
Heat treatment distortion discovered only at final grinding | Heat treatment sequenced and fixtured with post-treatment dimensional check before gear cutting |
Tooth profile shifts between sample and production | In-house gear profile inspection and CMM on every batch, not outsourced spot checks |
Multiple vendors → traceability gaps | Material certification and full traceability from raw ingot through finished gear |
The DFM review before production evaluates tolerance stack-ups and tool accessibility, and can reduce machining setups and raw-material consumption by 15–25% on heavy forged blanks.
FAQ
Is an annular gear the same as a ring gear?
Not exactly. “Ring gear” is a shape-based term covering any hollow ring-shaped gear, with teeth on the inner or outer circumference. An annular gear specifically refers to the internal-toothed configuration, where teeth face the ring center and mesh with an external pinion.
Why forge an annular gear instead of cutting it from plate?
Forging produces continuous grain flow following the ring contour, which improves tooth-root fatigue resistance in high-torque and shock-loaded service. A gear cut from solid stock can hold dimensions, but its grain structure is interrupted at the tooth roots — the most fatigue-critical zone.
What materials are used for forged annular gears?
Common grades include 42CrMo / 42CrMo4, AISI 4340, 40CrNiMo, 34CrNiMo6, 18CrNiMo7-6, and 20CrMnTi, selected by load, core hardness, and case-depth requirement.
What gear quality can be achieved?
AGMA 10–12 is achievable depending on module, size, and whether grinding is specified. General industrial grades (AGMA 8–10) are available where the application does not demand ground flanks.
