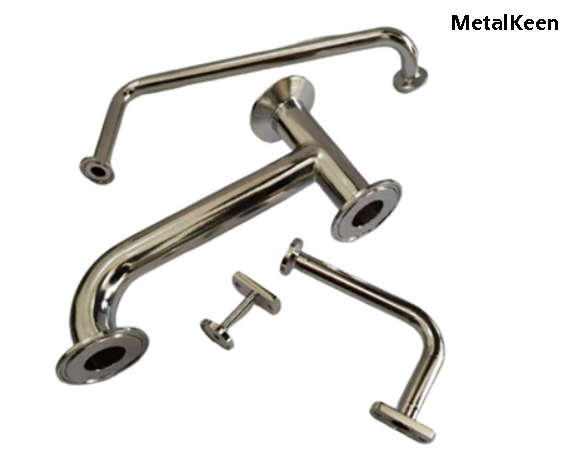

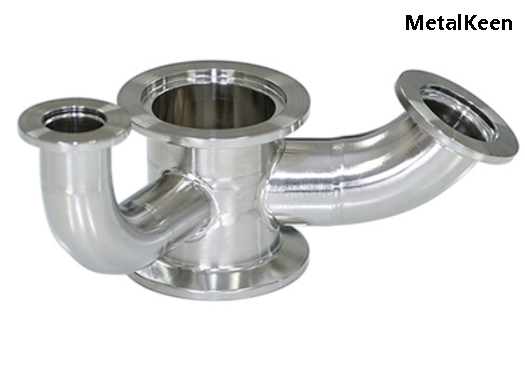

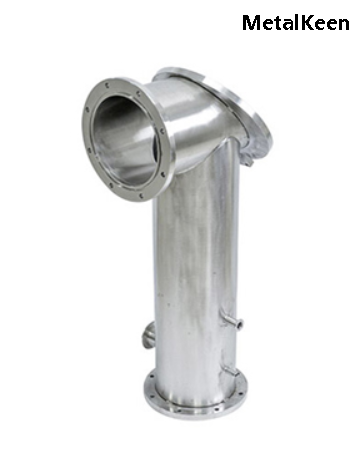

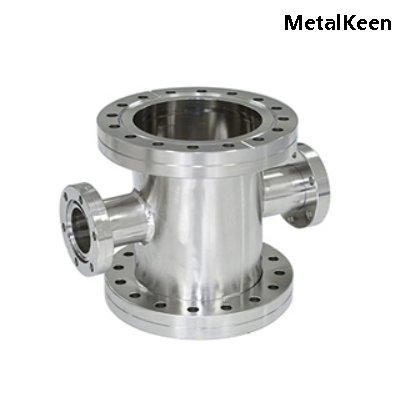

MetalKeen fabricates custom sanitary process piping for the food equipment industry, delivering 304 and 316L stainless steel pipe spools prefabricated with orbital welding, electropolishing, and passivation. Our food-grade piping meets FDA, 3A, and EHEDG hygiene standards and is engineered for dairy processing, beverage production, meat and poultry, baking, and ready-to-eat food equipment.
Food equipment process piping refers to the stainless steel piping systems integrated into food processing machinery and production lines. Unlike standard industrial piping, food-grade process piping must:
Prevent bacterial harborage — Smooth, crevice-free internal surfaces with no dead legs
Withstand CIP/SIP cycles — Clean-in-place and steam-in-place cleaning at high temperatures
Resist corrosion from food acids and chlorinated cleaners — 316L stainless steel standard
Ensure full drainability — Sloped lines, self-draining tees, and proper pitch to prevent product pooling
Maintain material purity — No contamination from oils, rust, or foreign particles
MetalKeen manufactures prefabricated sanitary pipe spools that integrate seamlessly into OEM food equipment, reducing field installation time and ensuring hygienic compliance from day one.
Table
Material | Grade | Surface Finish | Application |
|---|---|---|---|
304 Stainless Steel | ASTM A270 TP304 / EN 1.4301 | MP (Mechanically Polished) Ra ≤ 0.8 μm | Non-corrosive food products; ambient temperature lines |
304L Stainless Steel | ASTM A270 TP304L / EN 1.4307 | MP or EP | Welded assemblies; reduced sensitization risk |
316L Stainless Steel | ASTM A270 TP316L / EN 1.4404 | EP (Electropolished) Ra ≤ 0.5 μm | Salty, acidic, or chloride-containing foods; CIP/SIP lines |
316L Stainless Steel | ASTM A270 TP316L | BA (Bright Annealed) + EP | Ultra-high purity; pharmaceutical-grade food contact |
Material Selection Guidance:
Dairy, yogurt, ice cream — 304L MP for product lines; 316L EP for CIP supply
Juice, soft drinks, beer — 304L or 316L EP; resistant to citric and carbonic acids
Meat, poultry, seafood — 316L EP; withstands chlorinated sanitizers and blood salts
Sauces, dressings, pickles — 316L EP; high acid and salt content
Baking, confectionery — 304L MP; lower corrosion risk; cost-effective
Table
Specification | Details |
|---|---|
Pipe Standard | ASTM A270 (Sanitary Tubing); DIN 11850; ISO 2037; SMS 3008 |
Outside Diameter | 12.7 mm (1/2") – 304.8 mm (12"); custom sizes available |
Wall Thickness | 1.0 mm – 4.0 mm (16 gauge – 10 gauge) |
Surface Finish — Internal | MP Ra ≤ 0.8 μm; EP Ra ≤ 0.5 μm; or EP Ra ≤ 0.4 μm (premium) |
Surface Finish — External | MF (Mill Finish); MP; or 2B |
End Connections | Tri-Clamp (TC); DIN 11851; SMS; IDF; RJT; welded; or custom flange |
Fittings — Elbows | 45°, 90° short/long; bend radius 1.5D or 3D |
Fittings — Tees | Equal tee; reducing tee; instrument tee |
Fittings — Reducers | Concentric; eccentric (for drainable lines) |
Table
Step | Process | Quality Control |
|---|---|---|
Material Verification — PMI + MTR | XRF spectrometer; heat number traceability | Confirm 304/316L grade; reject non-conforming |
Tube Cutting — Orbital saw | Clean, square, burr-free cuts | Dimensional tolerance ±0.5 mm |
End Facing — Orbital or CNC | Precise land preparation for orbital welding | Squareness and land width check |
Orbital Welding — Autogenous TIG | Automated 360° weld without filler wire | Weld profile inspection; 100% borescope |
Manual TIG Welding — Fittings and adapters | GTAW with 308L or 316L filler | Visual inspection; PT on external welds |
Internal Cleaning — Passivation | Nitric or citric acid per ASTM A967 | Restores chromium oxide layer |
Electropolishing — Internal (optional) | Electrolytic surface refinement | Ra ≤ 0.5 μm; chromium enrichment |
External Finishing — Graining or polishing | Belt sand or brush to match equipment aesthetic | Uniform appearance |
Assembly & Testing — Spool assembly | Tri-clamp or welded fitting integration | Fit check; torque verification |
Final Cleaning — Degrease, DI rinse, dry | Remove all oils and particles | Residue test; particle inspection |
Packaging — Sealed, capped, bagged | End caps; nitrogen purge; clean bag | Prevent contamination during transit |
Food equipment piping must adhere to strict hygienic design standards:
Table
Design Principle | Implementation | Standard Reference |
|---|---|---|
No Dead Legs — Branch connections ≤ 3× diameter | Short outlet tees; inline instruments; minimal T-junctions | 3A Sanitary Standard 45-02 |
Full Drainability — Self-draining pitch ≥ 1:100 | Eccentric reducers; sloped lines; low-point drains | EHEDG Doc. 8 |
Smooth Internal Surfaces — Ra ≤ 0.8 μm | Mechanical polish or electropolish; no pits or crevices | FDA 21 CFR 110.40 |
Crevice-Free Joints — Orbital welded or Tri-Clamp with PTFE gasket | No threaded connections in product zone; no socket welds | 3A Standard 62-02 |
Cleanable Externals — Smooth, sloped external surfaces | No horizontal ledges; no bolt heads in product splash zone | EHEDG Doc. 13 |
Material Traceability — Full lot tracking | MTRs; heat numbers; weld logs | ISO 22000 / HACCP |
Table
Test | Method | Standard | Purpose |
|---|---|---|---|
PMI (Positive Material Identification) | XRF spectrometer | ASTM E415 | Verify 304/316L chemistry |
Dimensional Inspection — CMM / gauges | OD, wall thickness, length, bend radius | ASTM A270 | Ensure fitting compatibility |
Surface Roughness — Internal | Contact profilometer | ISO 4287 | Confirm Ra for hygienic compliance |
Borescope Inspection — Internal weld | Video borescope | Customer spec / 3A | Detect internal weld defects, discoloration |
Dye Penetrant Testing (PT) — External welds | Color contrast or fluorescent | ASTM E165 | Detect surface cracks in manual welds |
Passivation Verification — Water immersion or copper sulfate | Spot test on sample coupon | ASTM A967 | Confirm effective chromium oxide layer |
Cleanliness — Residue and particle | Swab test; solvent extraction | Customer spec | Verify absence of oils and foreign matter |
Our custom sanitary process piping is integrated into food processing equipment worldwide:
Table
Equipment Type | Piping Function | Typical Material / Finish |
|---|---|---|
Dairy Processing — Pasteurizers, UHT, cheese vats | Product heating/cooling loops; CIP supply/return | 316L EP; Tri-Clamp connections |
Beverage Production — Mixers, carbonators, fillers | Syrup lines; water lines; CO₂ injection | 304L or 316L EP; orbital welded |
Meat & Poultry — Grinders, mixers, smokers | Brine injection; marinade circulation; fat rendering | 316L EP; resistant to chlorinated cleaners |
Baking & Confectionery — Dough mixers, depositors, enrobers | Oil circulation; chocolate tempering; glaze lines | 304L MP; food-grade mineral oil compatible |
Fruit & Vegetable — Washers, blanchers, juicers | Water spray manifolds; juice extraction; pulp transfer | 316L EP; acid fruit resistant |
Ready-to-Eat & Prepared Foods — Cook-chill, sous vide, retort | Hot fill lines; vacuum packaging; steam injection | 316L EP; high-temperature CIP/SIP |
Pharmaceutical-Food Crossover — Nutraceuticals, probiotics | High-purity water; fermentation; aseptic filling | 316L EP Ra ≤ 0.4 μm; full traceability |
✅ Sanitary-Grade Materials — 304/316L with full PMI verification and MTR traceability
✅ Orbital Welding — Autogenous TIG for flawless internal weld beads; no crevices
✅ Electropolishing — Internal EP to Ra ≤ 0.5 μm for maximum cleanability
✅ Hygienic Design — Dead-leg-free layouts; self-draining; EHEDG and 3A compliant
✅ CIP/SIP Ready — Passivated surfaces withstand repeated steam and chemical cleaning
✅ Prefabricated Spools — Reduce field welding; match your equipment layout exactly
✅ Food Industry Compliance — FDA, 3A, EHEDG, and ISO 22000 / HACCP aligned processes
Q1: What makes process piping "food-grade" or "sanitary"? Food-grade sanitary piping is distinguished by material purity (304 or 316L stainless steel with certified chemistry), surface finish (smooth internal surfaces with Ra ≤ 0.8 μm, typically electropolished), hygienic design (no dead legs, fully drainable, crevice-free joints), and cleaning compatibility (able to withstand CIP/SIP cycles without degradation). Standard industrial piping with threaded connections, unpolished interiors, or carbon steel construction is not suitable for food contact applications.
Q2: What is the difference between 304 and 316L stainless steel for food piping? 304 stainless steel is adequate for most neutral food products (dairy, baked goods, water) and is more cost-effective. 316L stainless steel contains 2–3% molybdenum, providing superior resistance to chlorides, acids, and salty foods. It is essential for meat and seafood processing (chlorinated sanitizers), pickle and sauce production (acetic and citric acids), and CIP/SIP systems (caustic and acidic cleaners). The "L" denotes low carbon, preventing weld corrosion.
Q3: Why is orbital welding preferred over manual welding for food-grade pipe? Orbital welding produces an autogenous (no filler) 360° weld with a smooth, uniform internal bead that is free of crevices, undercut, or protrusions. This is critical for food piping because manual welds can create internal crevices where bacteria harbor or protrusions that disrupt CIP flow. Orbital welding also delivers consistent, repeatable quality that is fully documented and inspectable via borescope.
Q4: What surface finish do I need for my food equipment piping? For most food product lines, a mechanically polished (MP) finish with Ra ≤ 0.8 μm is sufficient. For CIP/SIP supply lines, high-acid products, or pharmaceutical-food crossover applications, electropolished (EP) Ra ≤ 0.5 μm is recommended. EP not only smooths the surface but also enriches the chromium content, enhancing corrosion resistance and making the surface even easier to clean.
Q5: Do you prefabricate pipe spools to fit specific food equipment OEM designs? Yes. We manufacture complete sanitary pipe spool assemblies from your equipment drawings, P&IDs, or 3D models. We can integrate Tri-Clamp fittings, DIN 11851 couplings, instrument tees, spray balls, and sample valves into the spool, delivering a ready-to-install module that matches your machine layout. Every spool is internally cleaned, passivated, and capped before shipment.
Q6: What certifications and documentation do you provide for food-grade piping? We provide mill test reports (MTRs) with full chemical composition and mechanical properties, PMI verification reports, surface roughness certificates, passivation certificates per ASTM A967, weld inspection reports (borescope images and PT results), and cleanliness certificates. Full material and weld traceability is maintained for HACCP and audit compliance.
Q7: Can you design piping layouts that are fully drainable and free of dead legs? Yes. Our engineers apply EHEDG and 3A sanitary design principles to every layout. We use eccentric reducers on horizontal lines to maintain bottom-drainable pitch, short-outlet tees to minimize dead legs, and self-draining instrument connections to eliminate product pooling. We can review your equipment layout and recommend optimal routing to ensure full CIP/SIP effectiveness.
