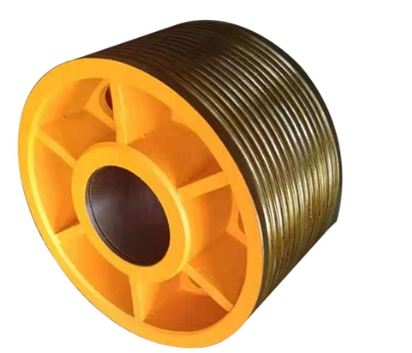

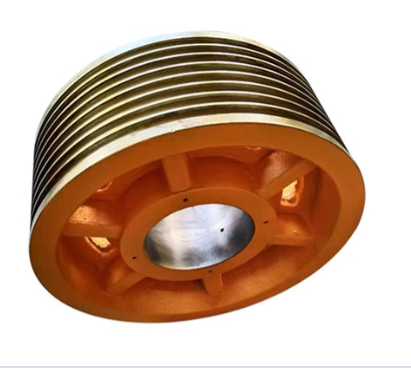

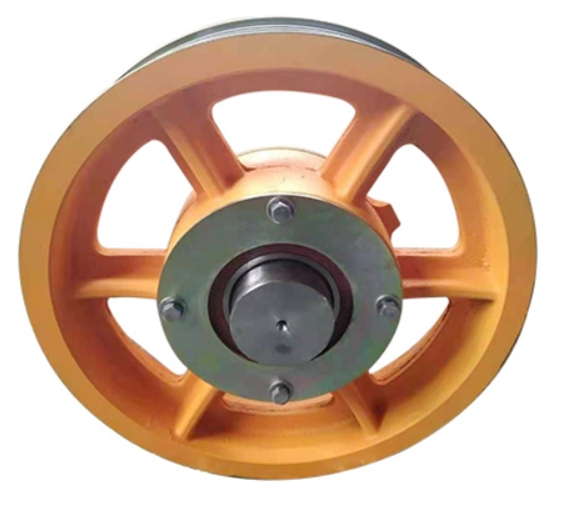

MetalKeen manufactures elevator rope pulleys and sheaves for the global elevator industry, including guide pulleys, deflector sheaves, car top pulleys, and counterweight pulleys. Available in nodular iron casting and MC nylon, our pulleys are engineered for smooth rope guidance, low noise, and long service life in Mitsubishi, Otis, Hitachi, Toshiba, ThyssenKrupp, and Kone elevator systems.
An elevator rope pulley (also called a sheave, guide pulley, or deflector pulley) is a rotating component that guides and redirects steel wire ropes or flat belts in an elevator system. Unlike the traction wheel—which drives the rope—the rope pulley changes the rope direction with minimal friction and wear. MetalKeen produces rope pulleys in two primary materials:
Table
Material | Application | Key Benefit |
|---|---|---|
Nodular Iron (Ductile Iron) | Heavy-duty passenger and freight elevators | High load capacity, wear resistance, durability |
MC Nylon (Monomer Casting Nylon) | Low-noise residential and hospital elevators | Self-lubricating, lightweight, quiet operation, rope-friendly |
Table
Pulley Type | Function | Typical Location |
|---|---|---|
Deflector Sheave | Redirects rope from traction wheel to counterweight | Machine room, above traction motor |
Car Top Pulley | Guides rope from hoistway to elevator car top | Top of elevator cabin |
Counterweight Pulley | Redirects rope to counterweight frame | Counterweight frame top/bottom |
Guide Pulley | Maintains rope alignment and prevents sway | Intermediate hoistway positions |
Tension Pulley | Maintains constant rope tension in governor or door system | Governor or door operator mechanism |
Return Pulley | Returns looped ropes or belts to starting position | Belt-drive elevator systems |
Table
Specification | Details |
|---|---|
Material Grade | ASTM A536 Gr. 65-45-12, EN-GJS-700-2, EN-GJS-500-7 |
Casting Process | Resin sand casting / green sand casting |
Groove Types | U-groove, flat groove, rounded groove |
Rope Diameter Compatibility | Ø6 mm – Ø16 mm wire rope; flat belt per spec |
Diameter Range | Ø100 mm – Ø600 mm |
Bore Options | Straight bore, taper bore, spline bore with keyway |
Surface Treatment | Shot blasting, phosphating, anti-rust oil, or paint |
Dynamic Balance | G6.3 per ISO 1940 (G2.5 available for high-speed) |
Table
Specification | Details |
|---|---|
Material | MC901 Nylon (Monomer Casting Nylon with molybdenum disulfide) |
Density | 1.15–1.16 g/cm³ |
Tensile Strength | 75–100 MPa |
Advantages | Self-lubricating, no grease required, corrosion-proof, 50% lighter than iron |
Max Operating Temp | 80°C continuous, 120°C intermittent |
Color | Natural white, blue, or black (custom available) |
Bearing Type | Press-fit ball bearing or bronze bushing |
MetalKeen rope pulleys are designed to OEM specifications for leading global elevator brands:
Table
Brand | Common Pulley Applications | Notes |
|---|---|---|
Mitsubishi | Deflector sheaves, car top pulleys | U-groove with Ø8–Ø13 mm rope |
Otis | Gen2 belt pulleys, guide sheaves | Flat groove for polyurethane-coated belts |
Hitachi | Counterweight pulleys, tension pulleys | Standard and compact hoistway designs |
Toshiba | Car top and deflector pulleys | High-rise elevator heavy-duty sheaves |
ThyssenKrupp | synergy, evolution series pulleys | Dual-bearing or single-bearing configurations |
Kone | MonoSpace, MiniSpace pulleys | Compact machine-room-less (MRL) designs |
OEM & Aftermarket: We manufacture to original drawings or reverse-engineer from worn pulleys for replacement orders.
Table
Step | Process | Quality Control |
|---|---|---|
Pattern / Mold Making | CNC machined aluminum pattern or injection mold (nylon) | Dimensional check |
Casting / Molding | Nodular iron: resin sand casting; Nylon: centrifugal casting | Chemistry spectrometer (iron); density check (nylon) |
Heat Treatment | Annealing or stress relieving (iron) | Hardness test |
Rough Machining | CNC lathe turning | Runout verification |
Groove Machining | CNC precision turning / grinding | Groove radius gauge inspection |
Bore & Keyway | CNC boring, broaching, or honing | CMM dimensional report |
Bearing Press-Fit | Hydraulic press with alignment fixture | Pull-out force test |
Dynamic Balancing | Hard-bearing balancing machine | ISO 1940 G6.3 / G2.5 |
Final Inspection | Visual, dimensional, functional | Inspection report per batch |
Chemical Analysis — Spectrometer verification for nodular iron; melt viscosity check for nylon
Mechanical Testing — Tensile, hardness, and impact testing (iron); compression and wear testing (nylon)
Dimensional Inspection — CMM for bore diameter, groove radius, and overall runout
Dynamic Balancing — High-speed spin test to eliminate vibration
Bearing Fit Test — Press-fit force and rotation torque verification
Surface Defect Inspection — Visual and dye penetrant testing (PT) for iron castings
Our elevator rope pulleys are used across the full range of elevator systems:
Passenger Elevators — Low-rise, mid-rise, and high-rise commercial buildings
Freight Elevators — Heavy-duty deflector and counterweight pulleys
Hospital Elevators — Low-vibration MC nylon pulleys for quiet operation
Home Elevators — Compact, lightweight pulleys for restricted spaces
Machine-Room-Less (MRL) Elevators — Space-optimized sheave designs
Escalator & Moving Walks — Related guide and tension pulleys
Table
Factor | Nodular Iron | MC Nylon |
|---|---|---|
Load Capacity | Very high — ideal for heavy-duty elevators | Moderate — suitable for standard passenger lifts |
Noise Level | Low — requires periodic lubrication | Very low — self-lubricating, no maintenance |
Weight | Heavy — adds inertia to system | Lightweight — reduces motor load and energy use |
Corrosion Resistance | Good with coating/protection | Excellent — immune to moisture and chemicals |
Rope Wear | Moderate — proper groove hardness minimizes wear | Very low — soft material protects rope surface |
Service Life | 10–15+ years | 5–8 years (replaceable wear component) |
Cost | Higher initial cost, lower lifecycle cost | Lower initial cost, easy replacement |
Recommendation: Use nodular iron for high-load, high-speed, or freight applications. Use MC nylon for residential, hospital, or noise-sensitive environments where rope protection and quiet operation are priorities.
✅ Dual Material Capability — Nodular iron casting and MC nylon machining under one roof
✅ Brand Compatibility — Proven fit for Mitsubishi, Otis, Hitachi, Toshiba, ThyssenKrupp, Kone
✅ OEM Precision — Manufactured to original tolerances or reverse-engineered from samples
✅ Full Traceability — Heat/lot number tracking from raw material to finished part
✅ Balanced & Ready — Dynamic balancing and bearing pre-assembly available
✅ Global Export — Secure packaging and documentation for international elevator parts distributors

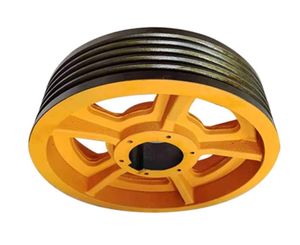

Q1: What is the difference between an elevator traction wheel and a rope pulley? An elevator traction wheel (or traction sheave) is the drive component powered by the motor that moves the rope and elevator car. An elevator rope pulley (guide pulley / deflector sheave) redirects the rope path without driving it. Traction wheels are typically larger and subject to higher torque; rope pulleys focus on smooth guidance and low friction.
Q2: What materials do you use for elevator rope pulleys? We manufacture rope pulleys in nodular iron (ductile iron) for heavy-duty applications and MC nylon for lightweight, low-noise, self-lubricating applications. Material selection depends on load, speed, noise requirements, and operating environment.
Q3: Can you produce rope pulleys for specific elevator brands? Yes. Our pulleys are compatible with Mitsubishi, Otis, Hitachi, Toshiba, ThyssenKrupp, and Kone elevator systems. We can fabricate from OEM drawings or reverse-engineer from your existing pulley sample.
Q4: Do your rope pulleys come with bearings pre-installed? Yes. We can supply pulleys with pre-pressed ball bearings or bronze bushings installed and aligned. Please specify bearing type (e.g., 6204, 6205, 6306) or allow us to recommend based on your load and speed requirements.
Q5: What groove profiles do you offer for elevator rope pulleys? We machine U-groove, flat groove, and rounded groove profiles. U-groove is standard for round wire ropes; flat groove is used for belt-drive systems (e.g., Otis Gen2). Groove radius is matched to your rope or belt specification.
Q6: How do I know if I need nodular iron or MC nylon pulleys? Choose nodular iron for high-load freight elevators, high-speed systems, or harsh environments. Choose MC nylon for residential, hospital, or MRL elevators where noise reduction, rope protection, and low maintenance are priorities. Contact us for material selection guidance.
