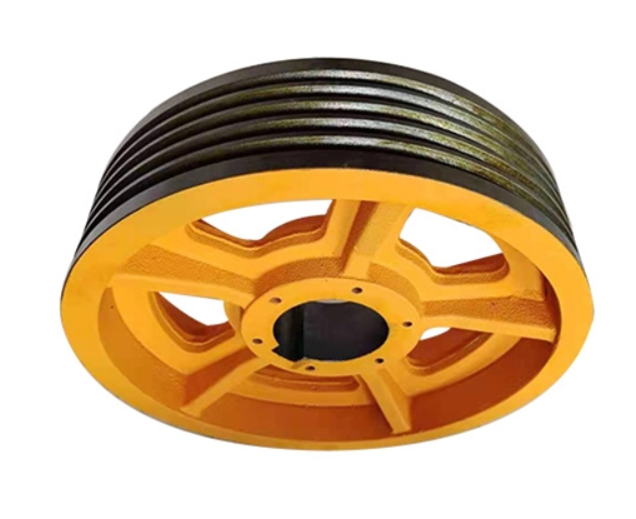

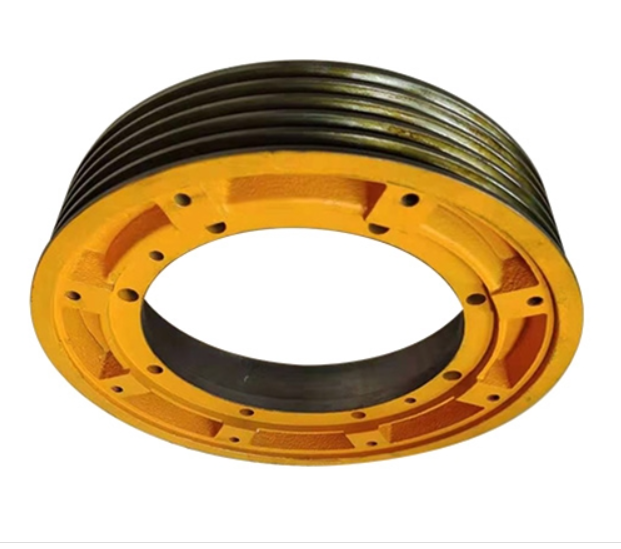

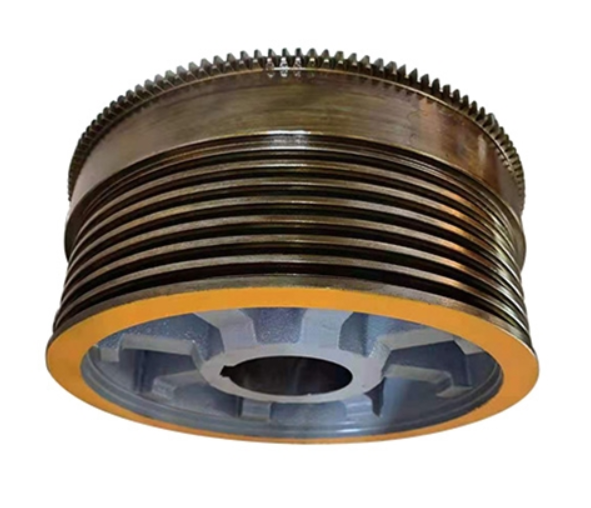

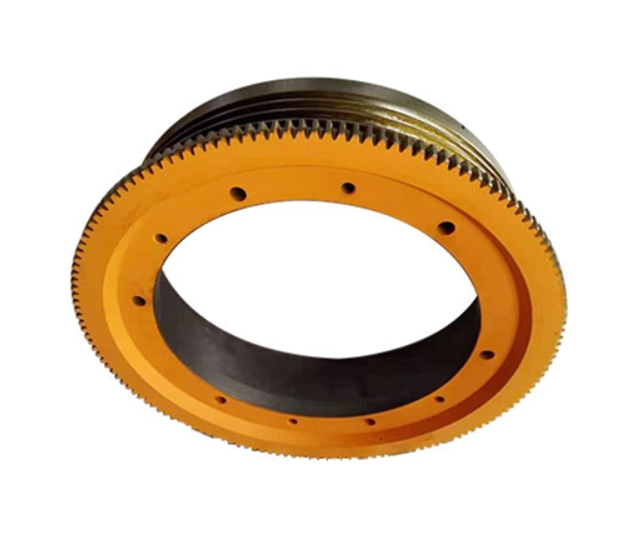

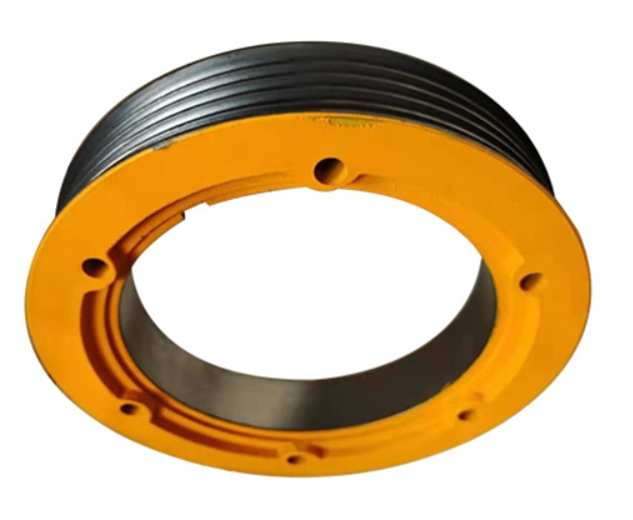

OEM Elevator Traction Wheel — Nodular Iron Casting Sheave

MetalKeen designs and manufactures OEM elevator traction wheels from high-strength nodular iron casting for global elevator brands. Our sheaves are engineered to fit Mitsubishi, Otis, Hitachi, Toshiba, ThyssenKrupp, and Kone elevator systems, delivering reliable traction performance, low wear, and long service life.

What Is an Elevator Traction Wheel?

An elevator traction wheel (also called a traction sheave or elevator pulley) is the core component that transfers power from the elevator motor to the hoist ropes. The wheel's groove profile and surface finish directly affect traction efficiency, rope wear, and ride comfort. MetalKeen produces traction wheels using nodular iron (ductile iron) casting, offering superior strength, vibration damping, and fatigue resistance compared to gray cast iron alternatives.

Elevator Traction Wheel Specifications

Table

Material Advantage — Nodular Iron Casting

Nodular iron (ductile iron) is the preferred material for elevator traction wheels due to its unique combination of properties:

Table

Why nodular iron for elevator sheaves?

• High load capacity — withstands static and dynamic loads from elevator cabin and counterweight

• Vibration damping — reduces noise and vibration transmission to the cabin

• Wear resistance — groove hardness optimized for steel wire rope contact

• Safety margin — ductile fracture behavior prevents catastrophic brittle failure

Compatible Elevator Brands & Models

MetalKeen produces traction wheels and sheaves compatible with leading global elevator manufacturers:

Table

OEM & Aftermarket Support: We manufacture to OEM drawings or reverse-engineer from worn samples for replacement parts.

Manufacturing Process

Table

Quality Assurance & Testing

• Chemical Analysis — Spectrometer verification of C, Si, Mn, Mg, and trace elements

• Mechanical Testing — Tensile test, hardness test, and impact test per batch

• Dimensional Inspection — CMM (Coordinate Measuring Machine) for critical dimensions

• Dynamic Balancing — High-speed balancing to prevent vibration and bearing wear

• Surface Defect Inspection — Magnetic particle testing (MT) or dye penetrant testing (PT)

• Runout Testing — Axial and radial runout controlled within 0.05 mm

Applications

Our elevator traction wheels are used in:

• Passenger Elevators — Low-rise, mid-rise, and high-rise buildings

• Freight Elevators — Heavy-duty traction wheels for cargo and industrial lifts

• Hospital Elevators — Low-vibration, quiet-operation sheaves

• Home Elevators — Compact traction wheels for restricted machine room space

• Escalator Drive Sprockets — Related nodular iron power transmission components

Why Choose MetalKeen for Elevator Traction Wheels?

• ✅ OEM-Grade Quality — Manufactured to original equipment tolerances

• ✅ Brand Compatibility — Proven fit for Mitsubishi, Otis, Hitachi, Toshiba, ThyssenKrupp, Kone

• ✅ Material Expertise — Nodular iron casting with optimized pearlite/ferrite ratio

• ✅ Full Traceability — Heat number tracking from raw material to finished part

• ✅ Custom Engineering — Reverse engineering, groove redesign, and weight optimization

• ✅ Global Shipping — Secure packaging for sea and air freight export

Frequently Asked Questions (FAQ)

Q1: What material is best for elevator traction wheels? Nodular iron (ductile iron) is the industry standard for elevator traction wheels. It offers higher tensile strength and impact resistance than gray cast iron, while maintaining good machinability and vibration damping properties essential for smooth elevator operation.

Q2: Can you manufacture traction wheels for specific elevator brands like Mitsubishi or Otis? Yes. We produce traction wheels compatible with Mitsubishi, Otis, Hitachi, Toshiba, ThyssenKrupp, and Kone elevator systems. We can work from OEM drawings or reverse-engineer from your existing worn sheave.

Q3: What groove types do you offer for elevator sheaves? We machine U-groove, V-groove, and undercut U-groove profiles. Groove dimensions are matched to your wire rope diameter and elevator system requirements to ensure proper traction and minimize rope wear.

Q4: Do you provide dynamic balancing for high-speed elevators? Yes. We offer dynamic balancing to ISO 1940 G2.5 or G6.3 standards. High-speed elevators (≥2.5 m/s) typically require G2.5 balancing to prevent vibration, noise, and premature bearing failure.

Q5: What is the typical lead time for custom elevator traction wheels? Standard lead time is 4–8 weeks depending on quantity and complexity. Pattern-making for new designs adds 1–2 weeks. Rush production is available for urgent replacement orders.

Q6: Do you supply traction wheels with polyurethane lining? Yes. In addition to bare nodular iron sheaves, we can supply polyurethane-lined traction wheels for Otis Gen2 and similar belt/flat-rope systems. Please specify your requirements when requesting a quote.
