Quick Specifications
Item | Specification |
|---|
Product Name | Custom Heavy Duty Reducer Base Bracket |
Product Type | Welded Steel Fabrication with CNC Machining |
Material | Carbon Steel, Q235, Q355, ASTM A36, Stainless Steel 304/316 (Optional) |
Manufacturing Process | Laser Cutting + Welding + Stress Relief + CNC Machining |
Machining Service | Milling, Boring, Drilling, Tapping, Surface Grinding |
Surface Finish | Sand Blasting, Painting, Powder Coating, Hot-dip Galvanizing |
Size | Customized According to Drawings |
Welding Standard | ISO 3834 / Customer Specification |
Dimensional Tolerance | According to Customer Drawings |
OEM / ODM | Available |
Applications | Gear Reducers, Conveyor Systems, Mining Equipment, Industrial Machinery |

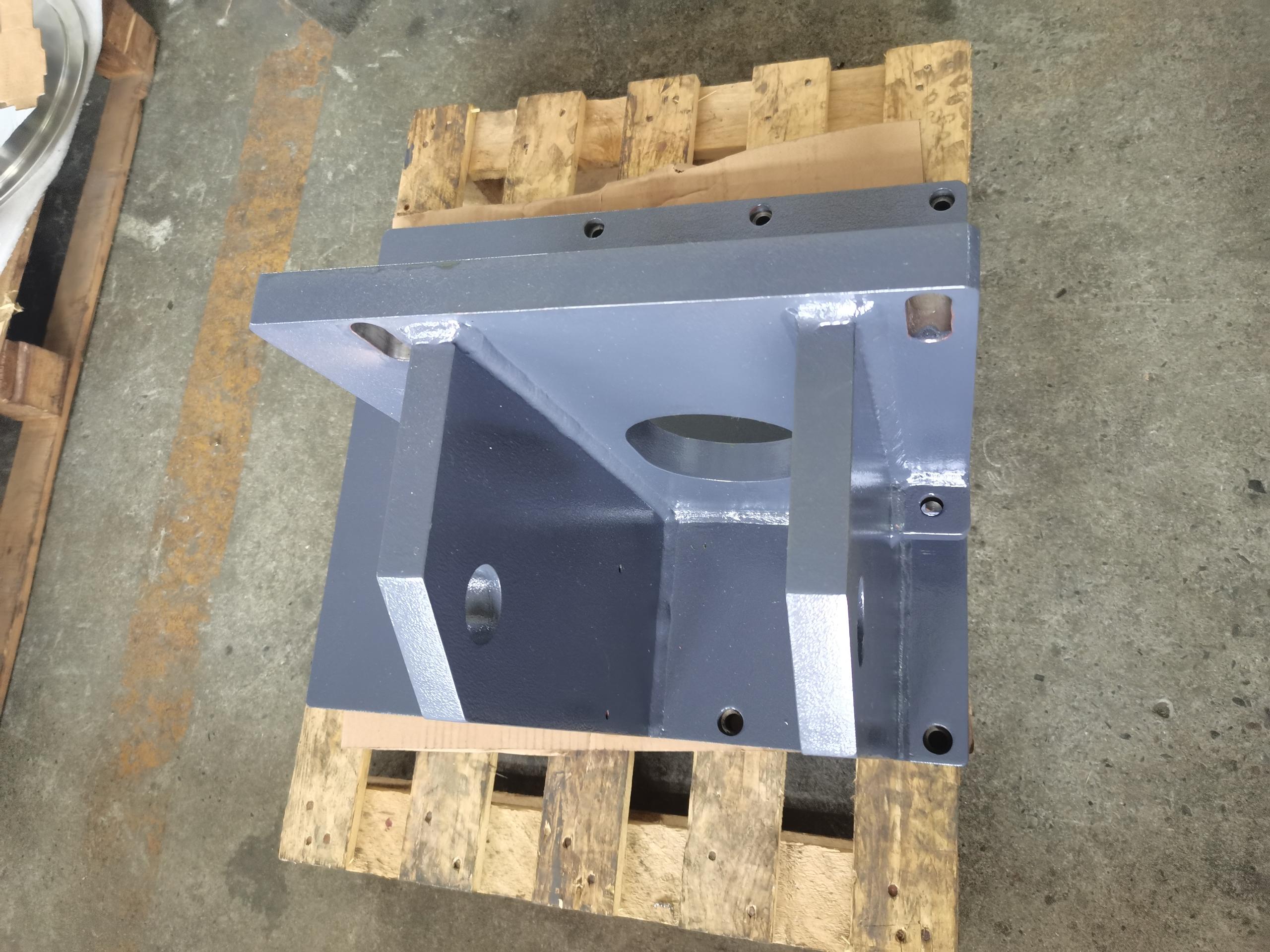

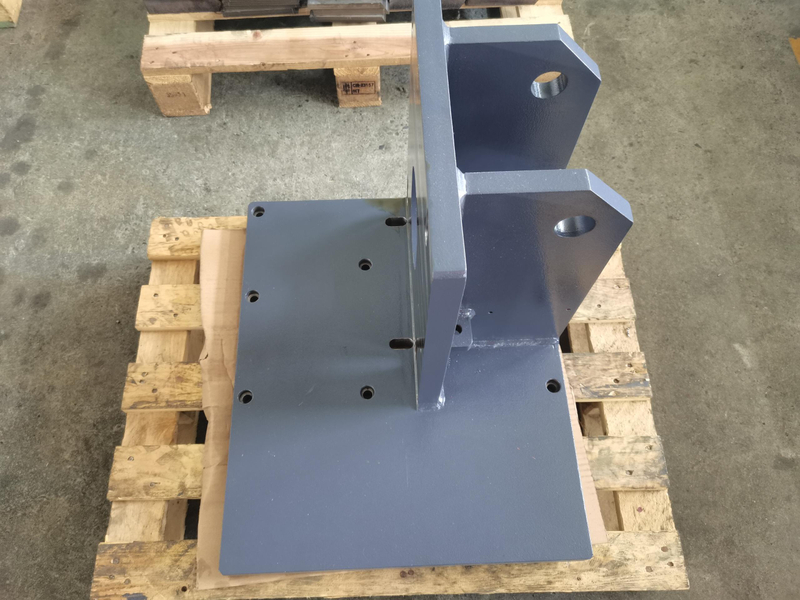

What Is a Reducer Base Bracket?
A reducer base bracket is a structural support component designed to securely mount gear reducers, motors, and transmission equipment while maintaining accurate shaft alignment and structural stability. It serves as the foundation of a power transmission system by supporting static loads, dynamic vibration, and operational torque.
Heavy-duty reducer base brackets are typically manufactured through steel fabrication combined with precision CNC machining. The fabricated steel structure provides excellent load-bearing capacity, while CNC machining ensures flat mounting surfaces, precise hole locations, and reliable assembly accuracy.
Custom reducer bases can be manufactured according to customer drawings, gearbox dimensions, motor specifications, and installation requirements.
Advantages of Steel Fabrication with CNC Machining
Compared with cast structures, fabricated steel reducer bases provide excellent flexibility for custom engineering projects.
Key advantages include:
High structural strength
Excellent welding performance
Flexible customized dimensions
Lower tooling investment
Faster prototype development
Excellent machining accuracy
Easy integration with existing equipment
Suitable for low-volume and high-mix production
The combination of precision fabrication and CNC machining delivers a cost-effective solution for industrial OEM equipment and heavy-duty mechanical assemblies.
Manufacturing Process
Each reducer base bracket is manufactured under a controlled production process to ensure dimensional accuracy and long-term structural reliability.
Engineering Drawing Review
↓
Material Inspection
↓
Laser Cutting / Plasma Cutting
↓
Plate Forming
↓
Precision Welding
↓
Stress Relief (Optional)
↓
Shot Blasting
↓
CNC Milling
↓
CNC Boring
↓
Drilling & Tapping
↓
Surface Treatment
↓
Final Inspection
↓
Packaging
Every production stage is monitored to ensure consistent weld quality, dimensional stability, and repeatable machining accuracy.
Technical Specifications
Typical manufacturing capabilities include:
Material Thickness: Customized
Weight Range: 10–5000 kg
Flatness: According to Drawing
Hole Position Accuracy: According to Drawing
Surface Roughness: Customized
Welding Method: MIG, MAG, TIG
CNC Machining Accuracy: Precision Machined
Assembly Tolerance: Customer Requirement
OEM manufacturing is available based on 2D drawings, 3D models, or physical samples.
Available Materials
MetalKeen manufactures reducer base brackets using various engineering materials.
Available materials include:
Material selection depends on load requirements, environmental conditions, corrosion resistance, and project specifications.
Surface Finish Options
To improve corrosion resistance and service life, multiple finishing options are available.
The appropriate finish is selected according to the operating environment and customer requirements.
Typical Applications
Custom reducer base brackets are widely used in industrial equipment requiring stable gearbox installation and precise alignment.
Applications include:
Conveyor Systems
Gear Reducers
Mining Equipment
Cement Plants
Steel Mills
Paper Machinery
Material Handling Equipment
Industrial Automation Systems
Agricultural Machinery
Heavy-duty Pumps
Power Transmission Equipment
Packaging Machinery
Why Choose Fabricated Steel Instead of Cast Structures?
Fabricated Steel Base | Cast Base |
Flexible custom design | Limited by casting mold |
Lower tooling cost | High mold investment |
Faster production | Longer casting cycle |
Easier engineering modifications | Difficult to modify |
Higher weldability | Not applicable |
Excellent for custom equipment | Better suited to mass production |
Fabricated steel bases are especially suitable for OEM equipment, customized machinery, and projects requiring frequent design optimization.
Quality Inspection
Every reducer base bracket undergoes comprehensive quality control before shipment.
Inspection includes:
Material Certification
Welding Visual Inspection
Weld Dimension Verification
Flatness Measurement
Hole Position Inspection
Coordinate Measuring Machine (CMM)
Surface Quality Inspection
Assembly Verification
Coating Thickness Inspection
Packaging Inspection
Inspection reports can be supplied upon request.
Frequently Asked Questions
What is a reducer base bracket?
A reducer base bracket is a fabricated steel support used to mount gear reducers and motors while maintaining precise alignment and structural stability.
Yes. We provide complete OEM manufacturing based on 2D drawings, 3D CAD models, or customer samples.
Which materials are available?
Carbon steel, alloy steel, stainless steel, and other engineering materials are available depending on project requirements.
Do you provide welding and CNC machining together?
Yes. We offer complete in-house steel fabrication, certified welding, CNC machining, and final assembly services.
What industries use reducer base brackets?
They are commonly used in mining, material handling, cement, steel, paper, industrial automation, conveyors, and heavy machinery.
What quality inspections are available?
We provide material certification, dimensional inspection, welding inspection, CMM measurement, and surface treatment verification before shipment.
Request a Quote
Need a custom reducer base bracket for your industrial equipment?
MetalKeen provides complete steel fabrication, certified welding, precision CNC machining, and assembly services for heavy-duty mechanical components. Whether you require a prototype or high-volume production, our engineering team can manufacture according to your drawings and technical specifications.
Send us your CAD files, drawings, or project requirements today to receive a fast quotation and professional engineering support.
