Custom Spun Roll Journal

Custom Spun Roll Journal

Our custom spun roll journals are metal-formed components manufactured for industrial rolls and rotating machinery.

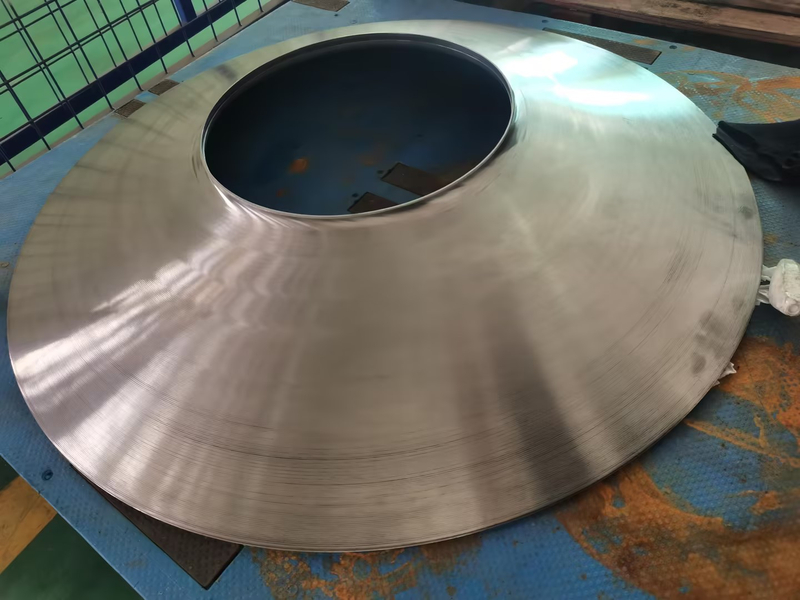

The component shown is produced using a metal spinning process to form a large-diameter, curved metal section with a central opening. The geometry can be manufactured according to customer drawings, dimensions and application requirements.

By combining metal spinning with subsequent machining when required, we can manufacture custom roll components with controlled dimensions and interfaces for assembly.

Key Features

• Custom roll journal manufacturing

• Metal spinning / flow forming capability

• Large-diameter spun metal components

• Custom dimensions and geometry

• Manufacturing according to customer drawings

• OEM and replacement components

• Machining after spinning when required

• Dimensional inspection

• Suitable for prototype, small-batch and repeat production

Manufacturing Process

The typical manufacturing process includes:

1. Material preparation

2. Metal blank cutting

3. Spinning forming

4. Dimensional inspection

5. Machining of critical surfaces

6. Bore and interface machining

7. Final dimensional inspection

8. Surface treatment or finishing when required

9. Packaging for shipment

The exact process is adjusted according to the material, geometry, dimensions and technical requirements of the component.

Applications

Custom spun roll journals can be used in:

• Industrial rolls

• Paper machine rolls

• Pulp and paper machinery

• Roll assemblies

• Rotating machinery

• Heavy-duty industrial equipment

• Custom mechanical assemblies

Custom Manufacturing

We can manufacture roll journals according to:

• 2D engineering drawings

• 3D CAD files

• Physical samples

• Specified dimensions

• Material requirements

• Machining tolerances

• Assembly requirements

For replacement parts, existing components or samples can also be used as references for manufacturing.

What is a roll journal?

A roll journal is the shaft-end or journal section of an industrial roll that interfaces with bearings, housings, couplings or other supporting components.

What is a spun roll journal?

A spun roll journal is a roll component manufactured or formed using a metal spinning process. Metal spinning can be used to produce large-diameter circular or rotationally symmetrical components.

Can you manufacture custom roll journals?

Yes. Custom roll journals can be manufactured according to customer drawings, CAD files, physical samples, dimensions and technical specifications.

Can metal spinning be combined with machining?

Yes. Spun components can undergo additional turning, boring, drilling, facing or other machining operations when tighter dimensional tolerances or assembly interfaces are required.

What industries use roll journals?

Roll journals are commonly used in industrial rolls, paper machinery, pulp and paper equipment and other rotating industrial equipment.
