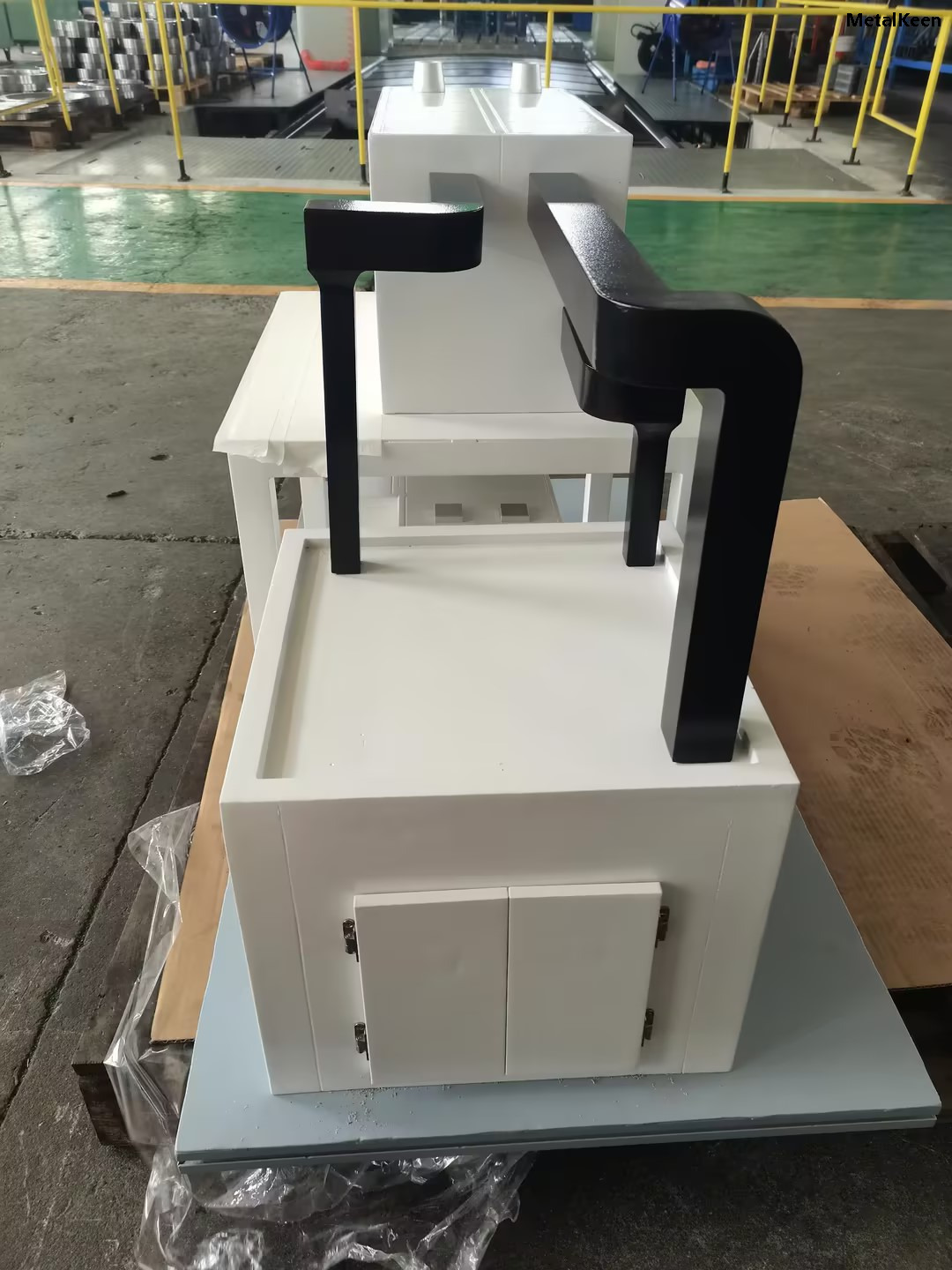

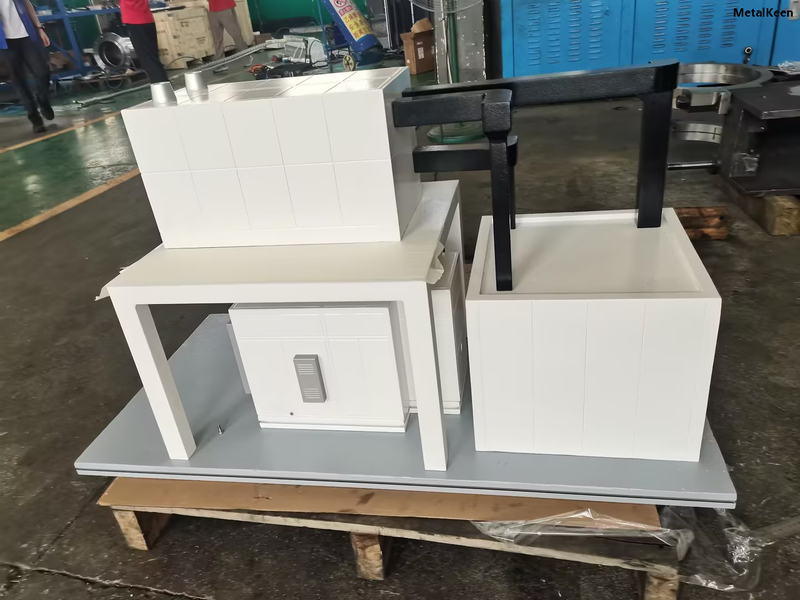

Custom Industrial Test Bench Assembly
The Custom Industrial Test Bench Assembly is designed for industrial testing, equipment evaluation and customized testing applications. It integrates a fabricated structural frame, equipment mounting components and supporting systems into a functional testing platform. The test bench can be manufactured and assembled according to customer drawings, equipment dimensions, testing requirements and installation conditions.
Key Features
Custom test bench design and manufacturing
Integrated structural frame and equipment supports
Customized equipment mounting positions
Compact and organized equipment layout
Custom mechanical and electrical integration
OEM equipment assembly
Flexible configuration for different testing applications
Manufactured according to customer drawings
Manufacturing Process
1. Design & Requirement Review
Customer drawings, equipment dimensions and testing requirements are reviewed before production.
2. Material Preparation
Structural materials and required components are prepared according to the approved design.
3. Frame Fabrication
The main frame and supporting structures are cut, welded and fabricated according to the specified dimensions.
4. Machining & Surface Treatment
Required mounting surfaces, holes and interfaces are machined and finished according to customer requirements.
5. Equipment Assembly
Mechanical components, electrical elements and supporting equipment are installed and integrated into the test bench.
6. Inspection & Testing
The completed assembly is inspected for dimensions, structural integrity, component installation and functional requirements.
Custom Manufacturing
The test bench can be customized according to:
Overall equipment dimensions
Testing requirements
Workpiece dimensions
Equipment mounting positions
Structural configuration
Mechanical and electrical components
Control requirements
Customer drawings and specifications
Applications
The Custom Industrial Test Bench Assembly is suitable for:
Industrial equipment testing
Component testing
Product performance evaluation
Mechanical testing
Prototype testing
Production testing
Automotive test applications
Custom testing systems
Quality Inspection
Before delivery, the completed test bench can be inspected for structural dimensions, mounting accuracy, weld quality, component installation, surface finish and functional requirements.
Send us your drawings, testing requirements or equipment specifications for a customized test bench solution.
