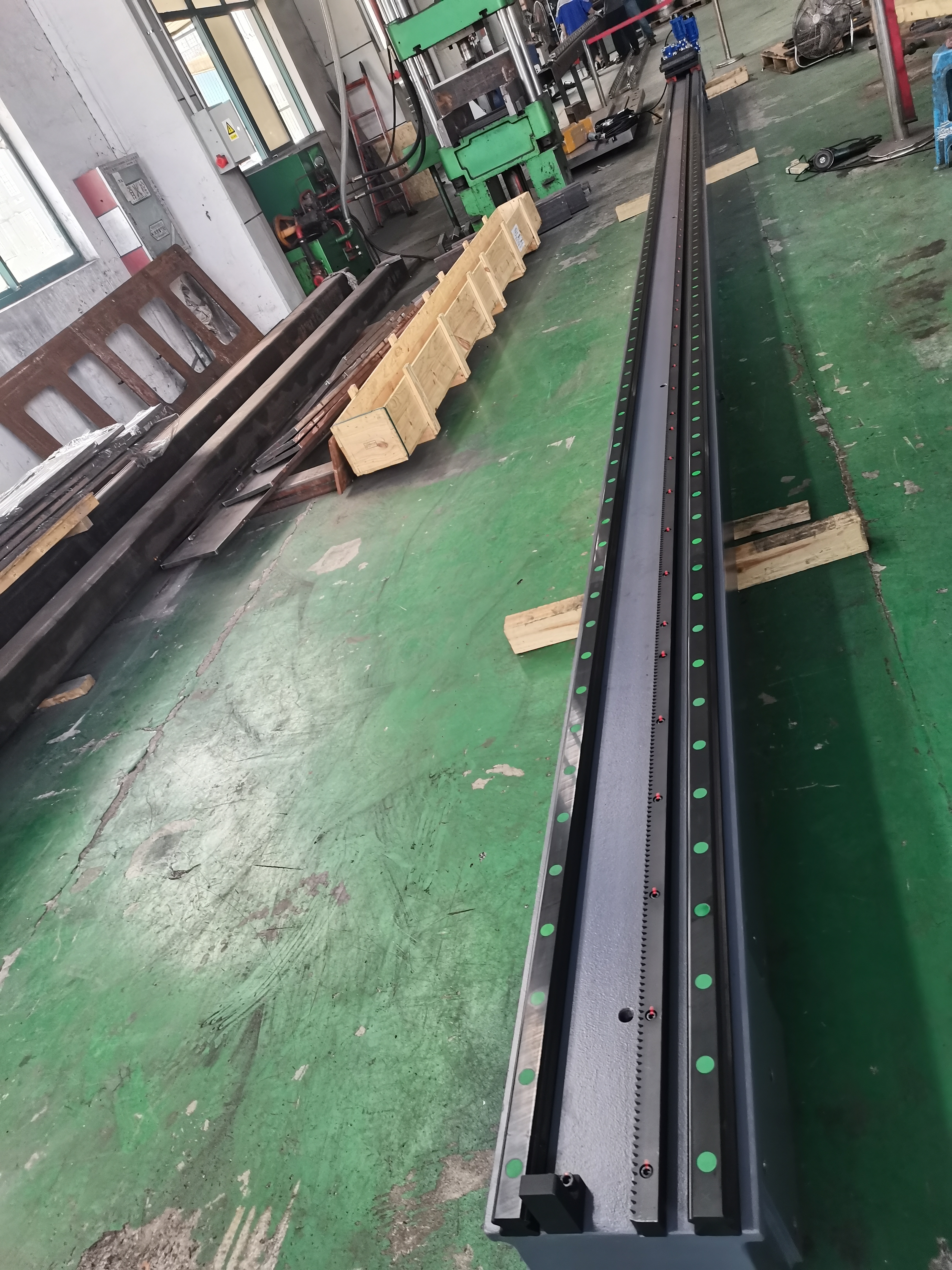

Custom Steel Crossbeam Manufacturing Process
Our custom steel crossbeams are manufactured for industrial machinery, automation equipment, mechanical structures, and customized equipment assemblies. We provide made-to-drawing manufacturing based on customer requirements, including dimensions, material specifications, mounting holes, machining tolerances, and surface finishing.
From Drawing to Finished Crossbeam
The manufacturing process begins with a review of the customer's 2D drawing, 3D CAD model, or physical sample. Our engineering team evaluates the structure, material, machining requirements, tolerances, and assembly interfaces before production.
1. Material Preparation
Steel material is selected according to the customer's technical requirements and application conditions. Material dimensions are checked before cutting and fabrication.
2. Steel Cutting and Fabrication
The steel components are cut and prepared according to the required dimensions. Welding and fabrication are performed to achieve the required structural shape and rigidity.
3. CNC Machining
Critical surfaces, mounting areas, holes, slots, and connection interfaces can be precision machined using CNC machining equipment. Milling, drilling, tapping, boring, and other machining operations can be performed according to the drawing.
4. Grinding and Surface Finishing
After machining, selected surfaces can be ground or polished to achieve the specified dimensional accuracy and surface finish. Surface treatment can be customized according to the customer's application and assembly requirements.
5. Inspection and Quality Control
Key dimensions, hole positions, mounting interfaces, machining tolerances, and surface conditions are inspected during production. Inspection requirements can be customized according to customer drawings and quality standards.
6. Final Assembly and Delivery

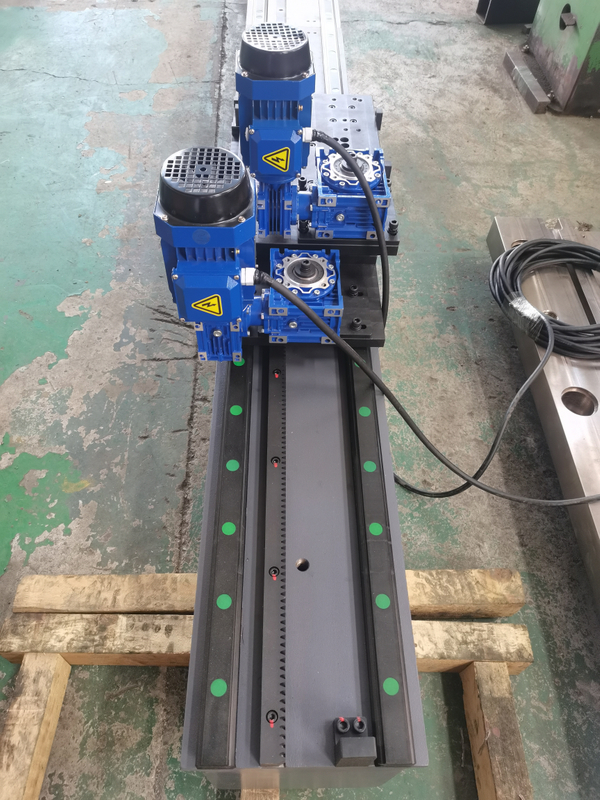

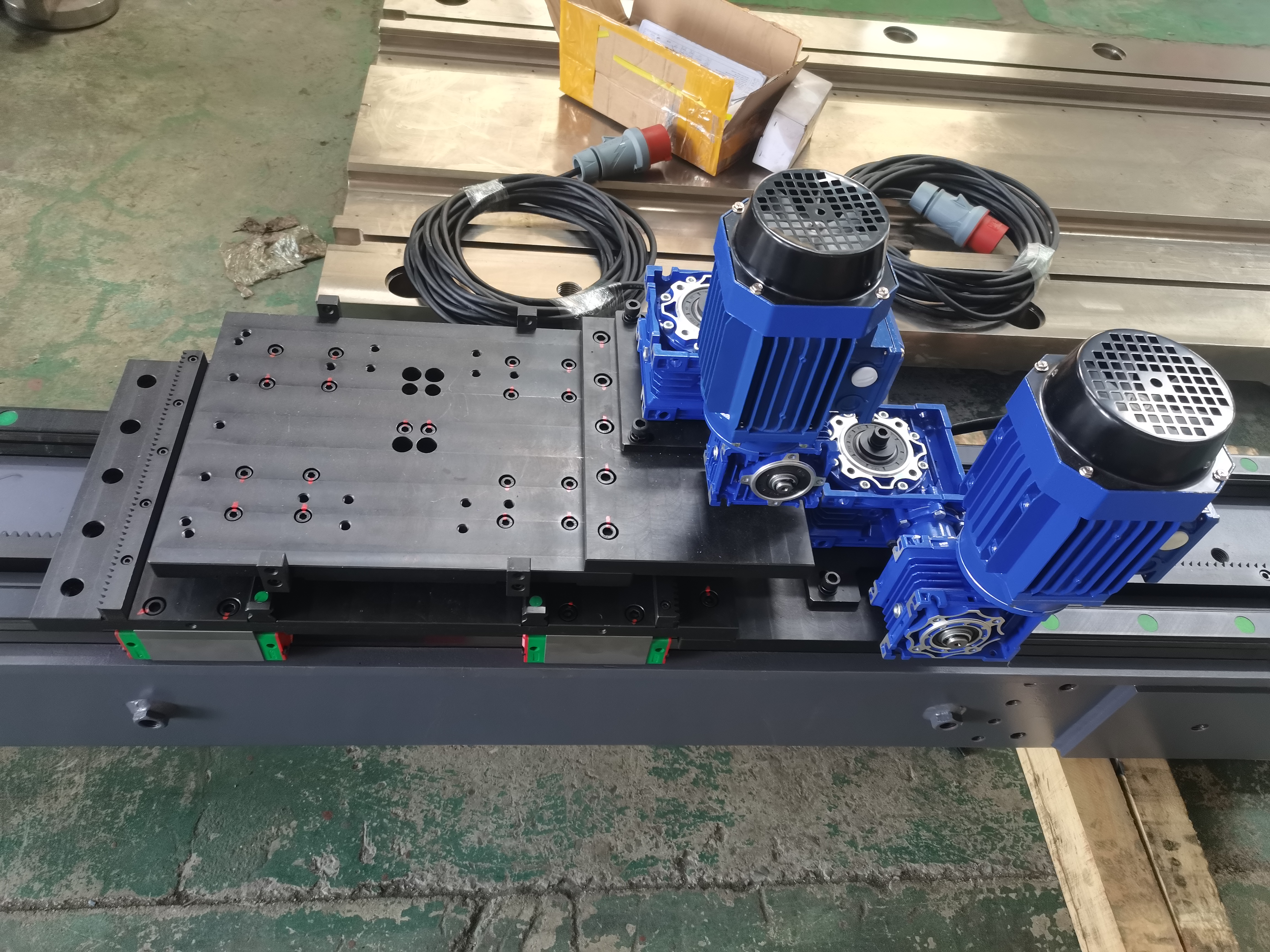

If required, the finished crossbeam can be supplied as an individual component or integrated with other mechanical components for final equipment assembly. Products are securely packed to protect machined and finished surfaces during transportation.
Customization Options
We support customization of:
Steel material and grade
Overall dimensions
Crossbeam length and thickness
Mounting holes and hole patterns
Machined surfaces
Connection interfaces
Surface finish
Dimensional tolerances
Welding and fabrication structure
Additional mechanical components
OEM & Made-to-Drawing Manufacturing
Our custom steel crossbeam service is suitable for OEM projects, equipment manufacturers, system integrators, machinery builders, and industrial component buyers.
Customers can send drawings, CAD files, samples, dimensions, or technical specifications. We can manufacture the required steel crossbeam according to the approved design and production requirements.
Why Choose Custom Manufacturing?
A made-to-drawing crossbeam allows the component to match the customer's existing equipment and assembly structure without unnecessary modification. Custom machining also allows critical mounting surfaces, holes, and interfaces to be manufactured according to the required tolerances.
Whether you need a single prototype, replacement component, or batch production, we can provide customized manufacturing for industrial steel components.
Looking for a reliable custom steel crossbeam manufacturer? Contact us with your drawing or project requirements for a customized quotation.
