MetalKeen delivers custom high-pressure pipe welding and assembly solutions for water treatment plants and industrial water systems. Our prefabricated assemblies include stainless steel pipe and flange welding, PTFE sealing, and stainless steel fasteners, fully validated by hydrostatic pressure testing, pneumatic testing, and NDT inspection before delivery.
High-pressure pipe welding and assembly for water treatment refers to the prefabrication of pressurized piping systems used in filtration, reverse osmosis (RO), desalination, chemical dosing, and wastewater treatment plants. These assemblies must withstand continuous operating pressures while resisting corrosion from chlorinated water, chemicals, and saline environments.

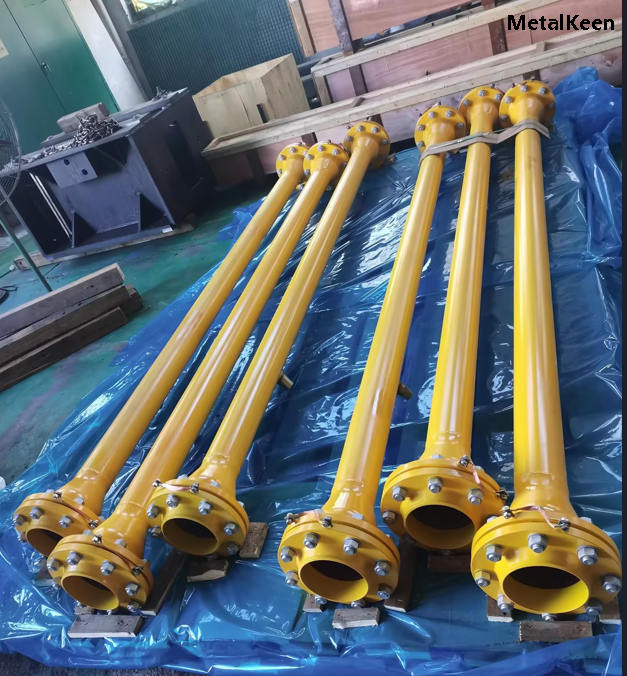

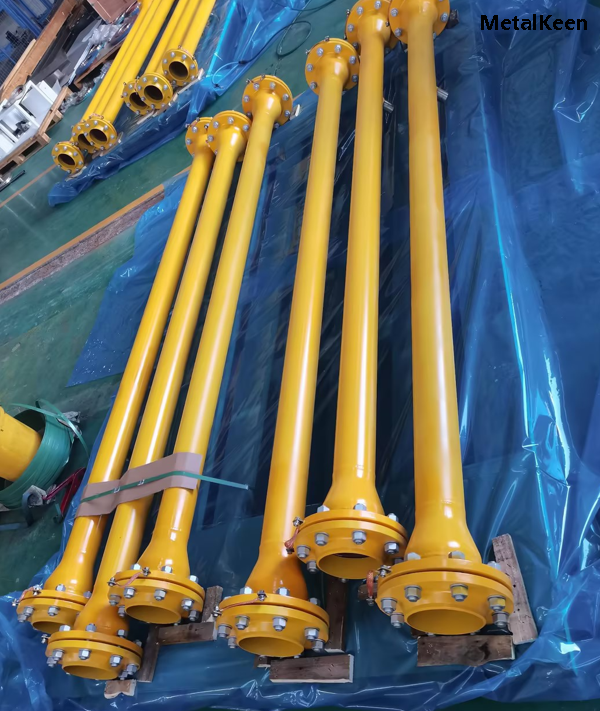

MetalKeen prefabricates complete pipe spool assemblies — including straight pipe, flanges, PTFE gaskets, and stainless steel fasteners — so they arrive at your water treatment facility ready for installation, minimizing field welding and accelerating plant commissioning.
Table
Component | Material / Specification | Function |
|---|---|---|
Pipe | Stainless steel 304/304L or 316/316L; seamless or welded | Pressure boundary; corrosion-resistant water conveyance |
Flanges | SS 304/316; weld neck, slip-on, or blind per ASME B16.5 | Connection points for valves, pumps, vessels, and equipment |
Sealing — PTFE gasket | Virgin PTFE or PTFE envelope; FDA compliant | Chemical-resistant seal between flange faces; prevents leakage |
Fasteners — Stainless steel screw | SS 316 A2-70 or A4-80 bolts, nuts, and washers | Clamping force for flange joints; corrosion resistant |

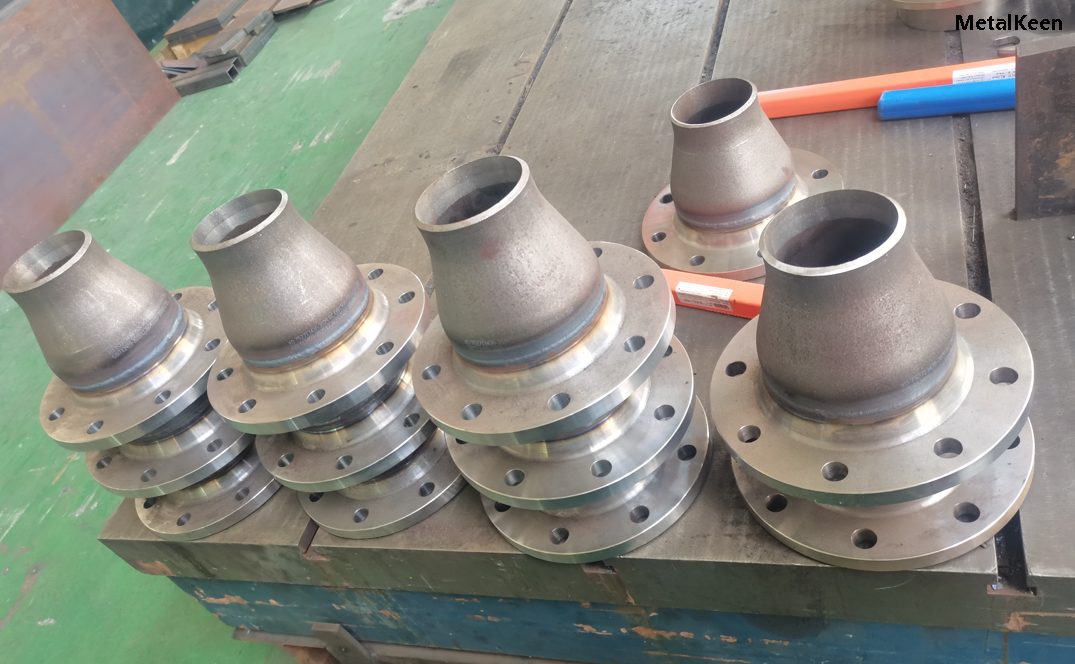

Fittings — Elbows, tees, reducers | SS 304/316; butt weld or socket weld | Direction change, branching, and diameter transition |
Material Selection Guidance:
SS 304/304L — Municipal potable water, general process water, low-chloride environments
SS 316/316L — Seawater desalination, chemical dosing, wastewater with chlorides, RO concentrate
Table
Step | Process | Quality Control |
|---|---|---|
Material Cutting | CNC band saw or orbital pipe cutting; zero-contamination coolant | Dimensional tolerance; square cut ends |
End Preparation | Beveling per ASME B16.25; root face machining | Bevel angle verification |
Fit-Up & Tacking | Jig-controlled alignment; minimal tack size | Root gap and alignment check |
TIG Welding (GTAW) | SS pipe to flange welding; 308L or 316L filler wire | 100% visual inspection; weld profile check |
Post-Weld Treatment | Pickling and passivation to restore chromium oxide layer | Visual inspection for uniform finish |

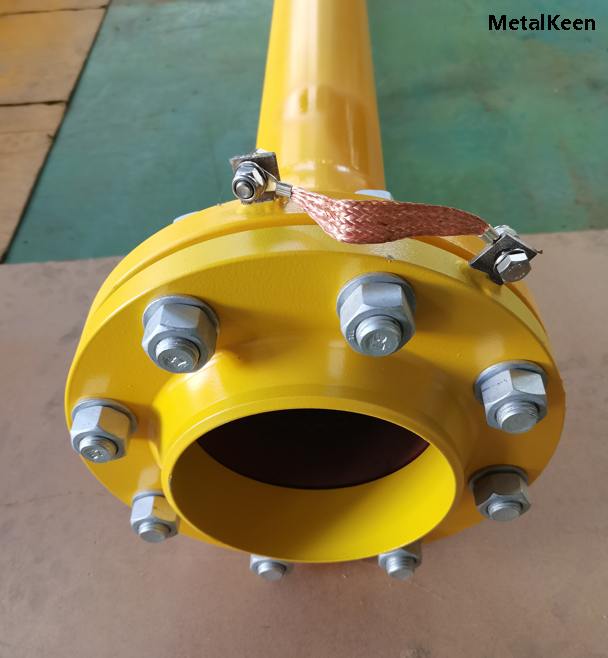

Assembly — Flange, gasket, fastener | PTFE gasket installation; bolt torque in star pattern | Gasket seating verification; torque log |
Marking & Documentation — Heat number, weld number, spool ID | Stamped or color-coded | Full traceability maintained |
Every high-pressure water treatment assembly undergoes comprehensive testing before shipment:
Table
Test | Method | Standard | Acceptance Criteria |
|---|---|---|---|
Hydrostatic Pressure Test — Hydraulic test | Water pressurization to 1.5× design pressure | ASME B31.3 / AWWA C220 | No leakage; no permanent deformation; hold for 30 min |
Pneumatic Pressure Test — Air test | Compressed air or nitrogen to 1.1× design pressure | ASME B31.3 (where hydrostatic not feasible) | Soap bubble test; no pressure drop over 15 min |
Visual Weld Inspection (VT) | Magnification and weld gauges | AWS D1.6 / ISO 5817 | No cracks, undercut, or incomplete penetration |
Dye Penetrant Testing (PT) — Surface NDT | Color contrast or fluorescent penetrant | ASTM E165 / EN 571-1 | No surface-breaking defects in welds |
Radiographic Testing (RT) — Volumetric NDT | X-ray on critical butt welds | ASTM E94 / EN 17636 | No lack of fusion, porosity, or cracks (Grade B) |
Ultrasonic Testing (UT) — Thickness / internal | Angle beam or straight beam | ASTM A388 / EN 10228-3 | Wall thickness verification; internal flaw detection |
Our high-pressure pipe welding and assembly services support critical water treatment infrastructure:
Table
System | Pressure Range | Typical Assembly |
|---|---|---|
Reverse Osmosis (RO) Plant — Seawater / brackish water | 6–85 bar | High-pressure feed piping; permeate headers; concentrate discharge |
Ultrafiltration (UF) / Nanofiltration (NF) | 2–10 bar | Feed and backwash piping; module manifolds |
Chemical Dosing — Chlorine, acid, caustic | 4–16 bar | Dosing line spools; injection quills; mixer assemblies |
Desalination Intake / Outfall | 5–25 bar | Seawater intake piping; brine discharge lines |
Wastewater Treatment — MBR, activated sludge | 1–6 bar | Aeration piping; sludge transfer; effluent discharge |
Industrial Process Water — Cooling, boiler feed | 10–40 bar | High-pressure pump suction/discharge; boiler feedwater spools |
✅ Prefabricated Spools — Reduce field welding by up to 80%; faster plant commissioning
✅ Corrosion-Resistant Materials — 304/316 stainless steel for long service life in water environments
✅ PTFE Sealing — Chemical-resistant gaskets compatible with chlorine, acids, and caustics
✅ Full Pressure Testing — Hydrostatic and pneumatic validation per ASME and AWWA standards
✅ NDT Certified — PT, RT, and UT inspection with comprehensive test reports
✅ Custom Engineering — Designed to your P&IDs, isometrics, and pressure specifications
✅ Global Water Project Experience — Export packaging and documentation for international EPC contractors
Q1: What does "3M" refer to in your high-pressure pipe welding assembly? In this context, "3M" refers to the 3-meter modular spool configuration commonly used in water treatment plant piping systems. These standardized spool lengths simplify transportation, on-site handling, and installation while allowing flexible layout adaptation. We can also fabricate spools in 1M, 2M, 6M, or custom lengths to match your plant design and shipping constraints.
Q2: Why is PTFE sealing used instead of rubber gaskets for water treatment flanges? PTFE (Polytetrafluoroethylene) gaskets are preferred for water treatment high-pressure flanges because they offer superior chemical resistance to chlorine, ozone, acids, and caustic soda commonly used in water treatment. PTFE also has a wide temperature range (-200°C to +260°C), low friction for easier assembly, and FDA compliance for potable water applications. For higher-pressure applications, we can supply PTFE envelope gaskets with SS 316 insert for improved creep resistance.
Q3: What pressure ratings can your welded pipe assemblies handle? Our stainless steel welded pipe assemblies are designed and tested per ASME B31.3 (Process Piping) and AWWA standards. Typical pressure ratings range from PN10 (10 bar) to PN100 (100 bar) depending on pipe schedule, wall thickness, and flange class. We hydrostatically test every assembly to 1.5× the design operating pressure to ensure safety margin and leak integrity.
Q4: What NDT tests are performed on water treatment pipe welds? Standard scope includes 100% visual inspection (VT) on all welds and dye penetrant testing (PT) on flange-to-pipe fillet welds. For high-pressure butt welds (SCH 40 and above), we perform radiographic testing (RT) or ultrasonic testing (UT) to detect internal defects such as lack of fusion, porosity, or cracks. Full NDT reports are provided with each shipment.
Q5: Can you prefabricate pipe spools from our water treatment plant P&IDs? Yes. We manufacture complete pipe spool assemblies from your P&IDs, piping isometrics, or equipment layout drawings. Our engineers review your pressure, temperature, and flow requirements to select the optimal pipe schedule, flange rating, and gasket material. Every spool is fabricated, tested, and marked with spool ID numbers matching your drawing for easy field identification.
Q6: Do you provide material certificates and weld documentation? Yes. Every assembly is supplied with mill test reports (MTRs) for pipe and flange materials, welder qualification records, WPS/PQR documentation, NDT test certificates, and pressure test reports. Full material and weld traceability is maintained from raw material receipt through final inspection.
Q7: What stainless steel grade should I choose for my water treatment piping? For municipal potable water and low-chloride process water, 304/304L stainless steel is cost-effective and fully adequate. For seawater desalination, RO concentrate, chemical dosing lines, or wastewater with chlorides, 316/316L stainless steel is strongly recommended to prevent pitting and crevice corrosion. We provide material selection guidance based on your water chemistry analysis.
