Quick Specifications

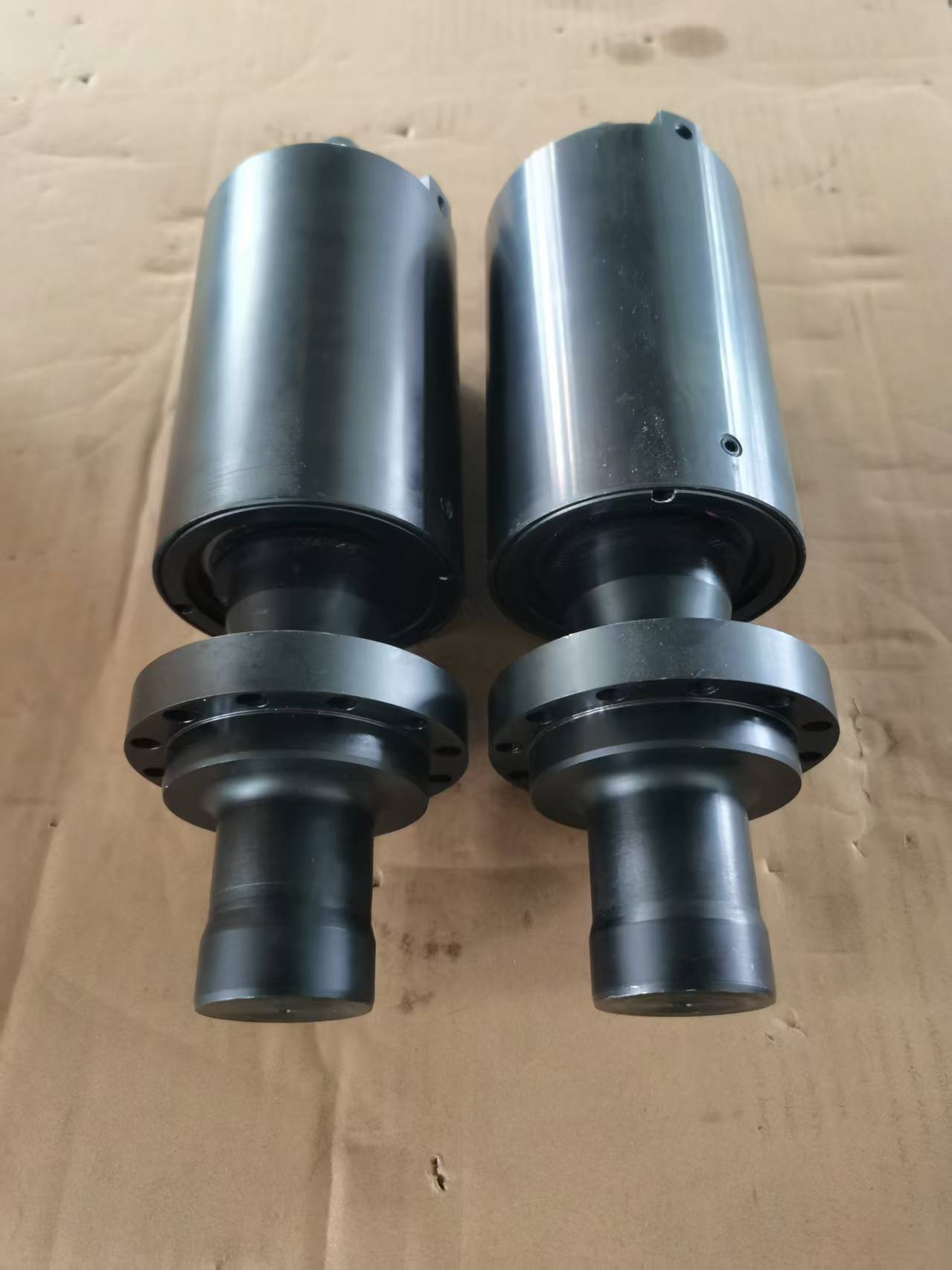

What Is a Spindle Assembly?

A spindle assembly is a precision mechanical unit designed to transmit rotational motion while supporting radial and axial loads with high accuracy. It generally consists of a spindle shaft, bearings, bearing seats, flanges, locking components, seals, and fastening hardware assembled into a complete rotating system.

Unlike an individual shaft, a spindle assembly is manufactured and assembled as a matched unit to ensure proper bearing preload, minimal runout, excellent concentricity, and stable operation at high rotational speeds.

Spindle assemblies are widely used in machine tools, industrial automation equipment, paper machinery, packaging systems, conveyors, printing equipment, and heavy industrial machinery.

What Is a Flanged Shaft?

A flanged shaft is a rotating shaft with an integrated flange that serves as a locating and mounting interface for motors, couplings, pulleys, gears, or driven equipment.

Compared with conventional straight shafts, flanged shafts provide:

• Higher assembly accuracy

• Better concentric positioning

• Greater structural rigidity

• Simplified installation

• Improved torque transmission

• Reduced alignment error

Flanged shafts are commonly selected for precision transmission systems where repeatable positioning and reliable mechanical connections are essential.

Key Advantages

MetalKeen manufactures precision spindle assemblies engineered for demanding industrial applications.

Main Benefits

• High rotational accuracy

• Excellent concentricity

• Low radial and axial runout

• High load capacity

• Superior torque transmission

• Excellent fatigue resistance

• Precision bearing fit

• Long operating life

• Stable high-speed performance

• OEM customization available

Manufacturing Process

Every spindle assembly follows a tightly controlled manufacturing process.

Engineering Drawing Review

↓

Raw Material Inspection

↓

CNC Turning

↓

CNC Milling

↓

Keyway / Spline Machining (Optional)

↓

Heat Treatment

↓

Precision Grinding

↓

Bearing Seat Grinding

↓

Cleaning

↓

Bearing Assembly

↓

Preload Adjustment

↓

Dynamic Balance Test (Optional)

↓

CMM Inspection

↓

Packaging

Critical features such as bearing journals, flange faces, locating diameters, and shaft shoulders are machined in controlled setups to minimize cumulative tolerance and improve assembly accuracy.

Technical Specifications

Typical manufacturing capabilities include:

• Shaft Diameter: Customized

• Shaft Length: Customized

• Flange Diameter: Customized

• Bearing Seat Tolerance: According to Drawing

• Runout: According to Drawing

• Concentricity: According to Drawing

• Surface Roughness: Customized

• Dynamic Balance: Optional

• OEM Manufacturing: Supported

Every spindle assembly is manufactured according to customer drawings and application requirements.

Material Options

Material selection depends on operating speed, transmitted torque, fatigue life, and environmental conditions.

Available materials include:

• Carbon Steel

• 45 Steel

• 40Cr Alloy Steel

• 42CrMo Alloy Steel

• Stainless Steel 304

• Stainless Steel 316

• High-strength Alloy Steel

For high-speed and heavy-load applications, alloy steels such as 40Cr and 42CrMo are widely used because they combine excellent strength, toughness, and heat-treatment response.

Heat Treatment Process

Heat treatment improves mechanical performance and service life.

Available processes include:

• Quenching & Tempering

• Induction Hardening

• Normalizing

• Stress Relief

• Tempering

These treatments increase hardness, improve wear resistance, enhance fatigue strength, and maintain dimensional stability during long-term operation.

Surface Finish Options

Surface quality has a direct influence on bearing life and assembly precision.

Available finishes include:

• Precision Grinding

• Fine Turning

• Black Oxide

• Zinc Plating

• Nickel Plating

• Passivation (Stainless Steel)

• Anti-rust Oil

Precision-ground bearing seats and flange faces help reduce vibration, improve shaft alignment, and extend component life.

Typical Applications

Custom spindle assemblies and flanged shafts are widely used in industrial rotating equipment.

Applications include:

• Machine Tools

• Industrial Automation

• Paper Machinery

• Printing Equipment

• Packaging Machinery

• Conveyor Systems

• Gearboxes

• Pumps

• Compressors

• Mining Equipment

• Textile Machinery

• Heavy Industrial Equipment

Spindle Assembly vs Standard Shaft

A spindle assembly is generally preferred when high rotational precision, repeatable alignment, and reliable long-term performance are required.

Quality Inspection

Every spindle assembly undergoes comprehensive inspection before shipment.

Inspection includes:

• Material Certification

• Chemical Composition Analysis

• CMM Dimensional Inspection

• Radial Runout Measurement

• Axial Runout Measurement

• Concentricity Inspection

• Bearing Seat Verification

• Hardness Testing

• Dynamic Balance Test (Optional)

• Assembly Verification

Inspection reports and material certificates are available upon request.

Frequently Asked Questions

What is a spindle assembly?

A spindle assembly is a precision-engineered rotating unit that combines a spindle shaft, bearings, mounting features, and related components to provide accurate rotation and reliable torque transmission.

What is the difference between a spindle assembly and a shaft?

A shaft is a single mechanical component, while a spindle assembly includes the shaft together with bearings, mounting interfaces, and assembled components that are optimized for rotational accuracy.

Which materials are available?

Carbon steel, 40Cr, 42CrMo, stainless steel, and other engineering alloys are available depending on application requirements.

Can MetalKeen manufacture custom spindle assemblies?

Yes. We provide OEM manufacturing according to customer drawings, 3D CAD models, or samples, including machining, heat treatment, precision assembly, and inspection.

What industries use spindle assemblies?

Machine tools, industrial automation, paper machinery, packaging equipment, conveyors, pumps, gearboxes, mining machinery, and heavy industrial equipment.

What inspections are performed?

We provide CMM dimensional inspection, runout measurement, concentricity testing, hardness testing, dynamic balance testing (optional), and complete material traceability.

Request a Quote

Looking for a reliable manufacturer of custom precision spindle assemblies and flanged shafts?

MetalKeen provides complete OEM solutions covering engineering review, CNC turning, milling, grinding, heat treatment, precision assembly, and rigorous quality inspection. Whether you need a prototype or large-scale production, our engineering team can manufacture spindle assemblies to your exact drawings and performance requirements.

Send us your CAD drawings, STEP files, or technical specifications today to receive a fast quotation and professional engineering support.
