Quick Specifications

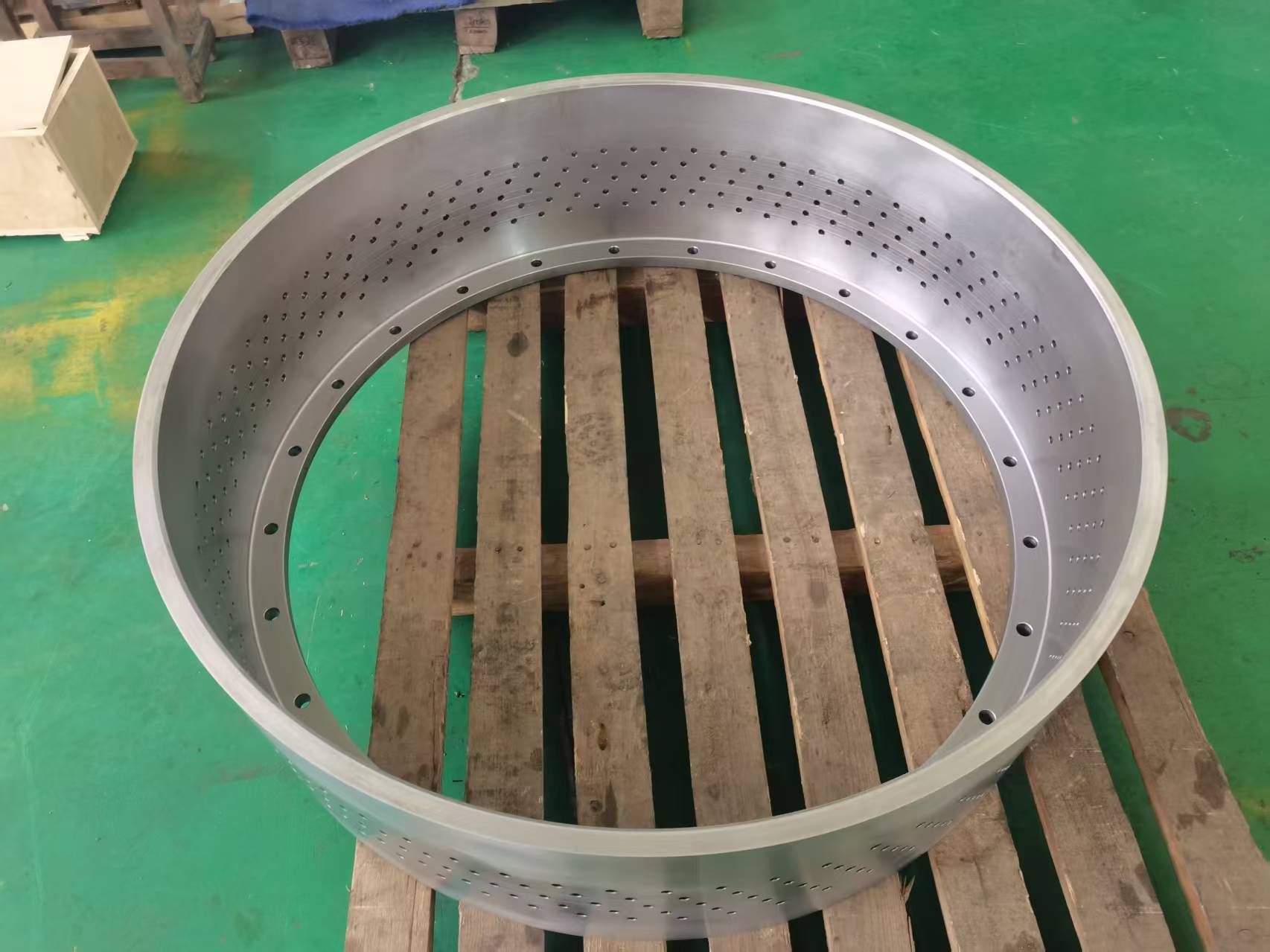

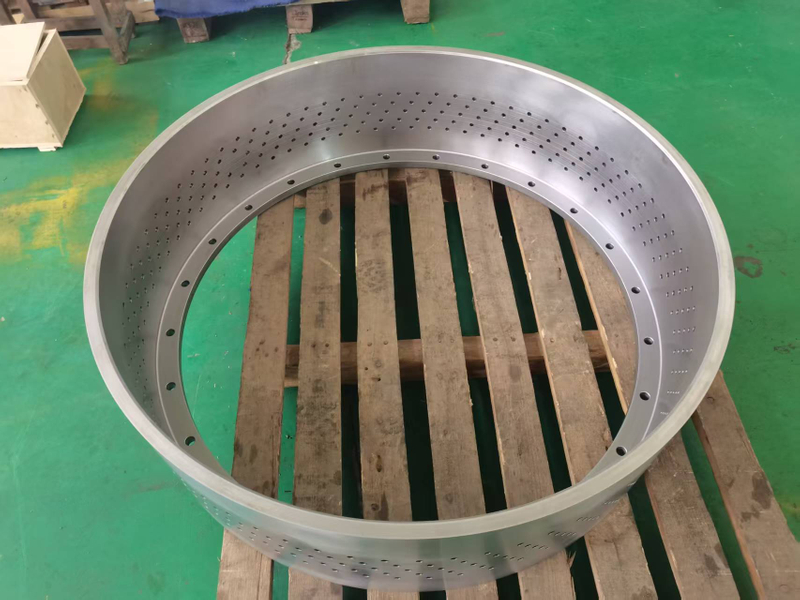

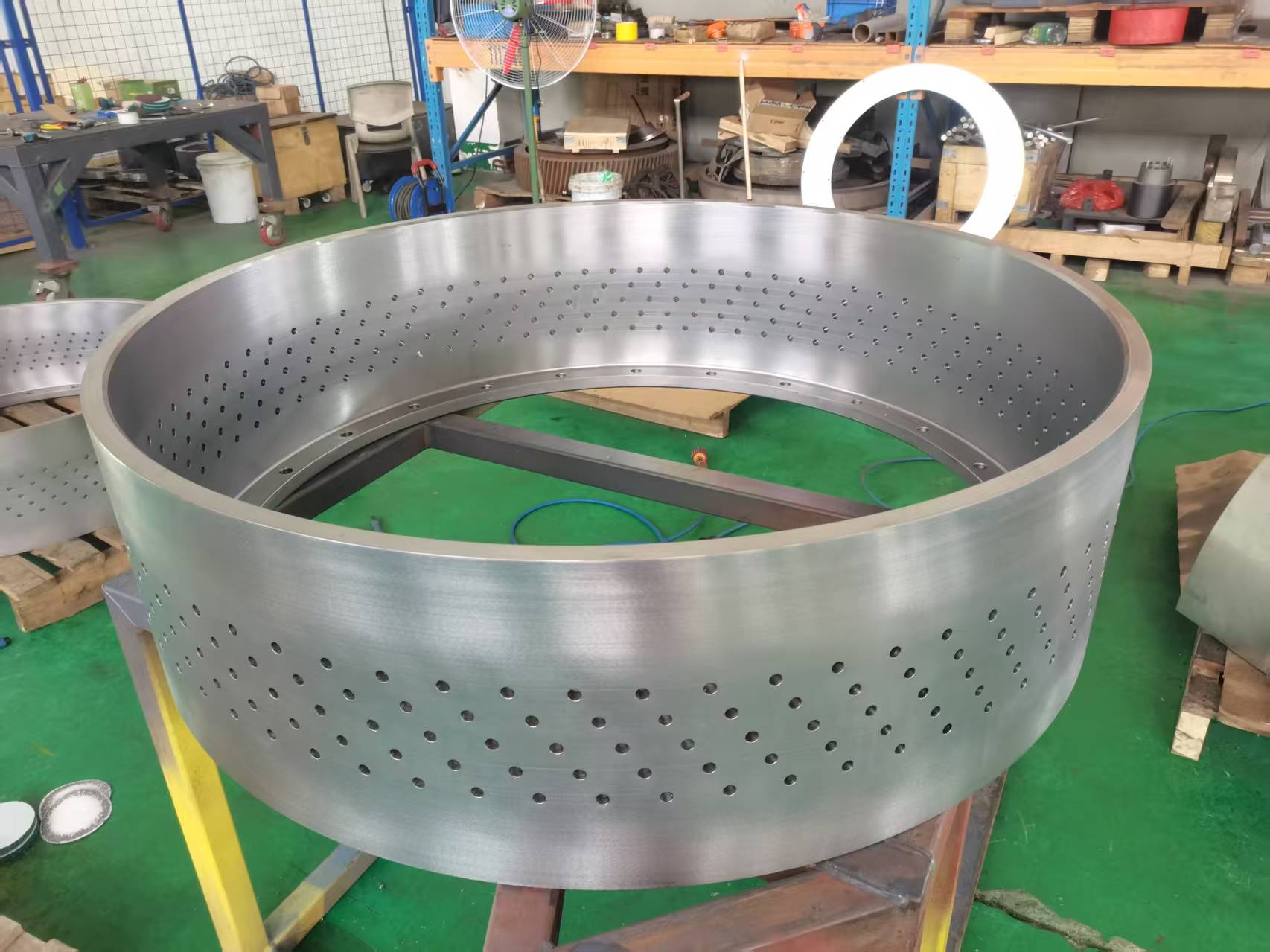

What Is a Precision Vacuum Ring?

A precision vacuum ring is a custom-machined component designed to distribute vacuum evenly across a rotating or stationary surface. It contains precisely positioned vacuum holes or channels that generate uniform suction for holding, transporting, or positioning workpieces.

Large-diameter vacuum rings are commonly installed in automated production lines, vacuum conveying systems, paper machinery, printing equipment, semiconductor handling systems, and industrial robotic equipment.

The performance of a vacuum ring depends on machining accuracy, concentricity, surface flatness, and the precision of the hole array. Even slight deviations can reduce vacuum efficiency, increase leakage, and shorten equipment service life.

Why Choose a Vacuum Ring with Array Holes?

Array-hole designs provide more uniform vacuum distribution than a single vacuum port.

Key Benefits

• Uniform vacuum pressure distribution

• Stable workpiece holding force

• Reduced local pressure loss

• Improved vacuum efficiency

• Better positioning accuracy

• Reduced deformation of thin materials

• Suitable for continuous industrial operation

• Easy integration into automated production lines

Hole size, spacing, quantity, and distribution are customized according to airflow requirements, workpiece dimensions, and vacuum pump capacity.

Manufacturing Process

Every vacuum ring is manufactured through a controlled precision machining process.

Engineering Drawing Review

↓

Material Inspection

↓

Large Diameter CNC Turning

↓

Stress Relief (Optional)

↓

Precision Face Machining

↓

CNC Milling

↓

Array Hole CNC Drilling

↓

Deburring

↓

Surface Grinding (Optional)

↓

Dynamic Balance (Optional)

↓

CMM Inspection

↓

Cleaning

↓

Protective Coating

↓

Packaging

This process ensures excellent concentricity, flatness, and hole-position accuracy for reliable vacuum performance.

Technical Specifications

Typical manufacturing capabilities include:

• Outer Diameter: Customized

• Inner Diameter: Customized

• Hole Diameter: Customized

• Hole Quantity: Customized

• Hole Pattern: Circular, Spiral, Matrix, Radial

• Flatness: According to Drawing

• Concentricity: According to Drawing

• Surface Roughness: Customized

• Material: Carbon Steel, Stainless Steel, Aluminum Alloy

• OEM Manufacturing: Supported

Every component is manufactured according to customer CAD drawings and application requirements.

Material Options

MetalKeen manufactures vacuum rings using various engineering materials.

Available materials include:

• Carbon Steel

• Stainless Steel 304

• Stainless Steel 316

• Aluminum Alloy

• Alloy Steel

Material selection depends on vacuum level, corrosion resistance, operating temperature, and equipment weight.

Surface Finish Options

Different applications require different surface finishes.

Available options include:

• Fine CNC Turning

• Precision Grinding

• Mechanical Polishing

• Glass Bead Blasting

• Shot Blasting

• Electropolishing (Stainless Steel)

• Anti-rust Oil

• Passivation

• Custom Surface Treatment

Smooth sealing surfaces help reduce vacuum leakage and improve long-term performance, especially in high-vacuum systems.

Typical Applications

Precision vacuum rings are widely used in automated manufacturing and vacuum handling systems.

Applications include:

• Vacuum Conveying Equipment

• Packaging Machinery

• Paper Machinery

• Printing Equipment

• Textile Machinery

• Semiconductor Equipment

• Electronic Assembly Lines

• Robotic Vacuum Grippers

• Glass Processing Equipment

• CNC Vacuum Fixtures

• Industrial Automation

• Vacuum Workholding Systems

Why Choose Precision Machined Vacuum Rings Instead of Welded Assemblies?

For equipment operating at high rotational speed or requiring stable vacuum distribution, a one-piece precision machined ring generally provides superior performance.

Quality Inspection

Every vacuum ring is inspected before shipment.

Inspection includes:

• Material Certification

• Chemical Composition Analysis

• CMM Dimensional Inspection

• Hole Position Measurement

• Concentricity Inspection

• Flatness Inspection

• Surface Roughness Measurement

• Dynamic Balance Test (Optional)

• Visual Inspection

• Packaging Inspection

Inspection reports and material certificates are available upon request.

Frequently Asked Questions

What is a vacuum ring?

A vacuum ring is a precision-machined component with integrated vacuum holes or channels that distribute negative pressure uniformly for holding, transporting, or positioning workpieces.

Why are array holes important?

Array holes distribute suction evenly, improve vacuum efficiency, reduce pressure loss, and provide stable holding force across the working surface.

Which materials are available?

Carbon steel, stainless steel 304, stainless steel 316, aluminum alloy, and other engineering materials are available according to customer requirements.

Can MetalKeen manufacture according to drawings?

Yes. We manufacture fully customized vacuum rings based on customer CAD drawings, STEP files, or samples.

What industries use vacuum rings?

Vacuum rings are widely used in packaging machinery, paper production, semiconductor equipment, industrial automation, robotics, glass processing, and vacuum workholding systems.

What quality inspections are provided?

We provide CMM inspection, concentricity measurement, hole-position verification, surface roughness testing, material certification, and optional dynamic balance testing.

Request a Quote

Looking for a reliable manufacturer of custom large-diameter precision machined vacuum rings?

MetalKeen provides complete engineering support from design review and material selection to large-diameter CNC machining, precision array-hole drilling, inspection, and global delivery. Whether you require a prototype or volume production, our team can manufacture vacuum rings to your exact specifications.

Send us your drawings, STEP files, or technical requirements today to receive a fast quotation and professional engineering support.
