Quick Specifications
Item | Specification |
|---|
Product Name | Precision Synchronous Pulley |
Product Type | Timing Belt Pulley |
Material | Aluminum Alloy, Carbon Steel, 40Cr, Stainless Steel 304/316 |
Manufacturing Process | CNC Turning + Gear Hobbing + CNC Milling + Surface Finishing |
Tooth Profiles | HTD, GT, AT, T, XL, L, H, MXL, 3M, 5M, 8M |
Bore Type | Pilot Bore, Finished Bore, Keyway, Taper Bore |
Surface Finish | Anodizing, Black Oxide, Zinc Plating, Nickel Plating |
Dynamic Balance | Optional |
OEM / ODM | Available |
Inspection | CMM, Tooth Profile Inspection, Runout Test |
Applications | Industrial Automation, Robotics, Packaging, CNC Machines |

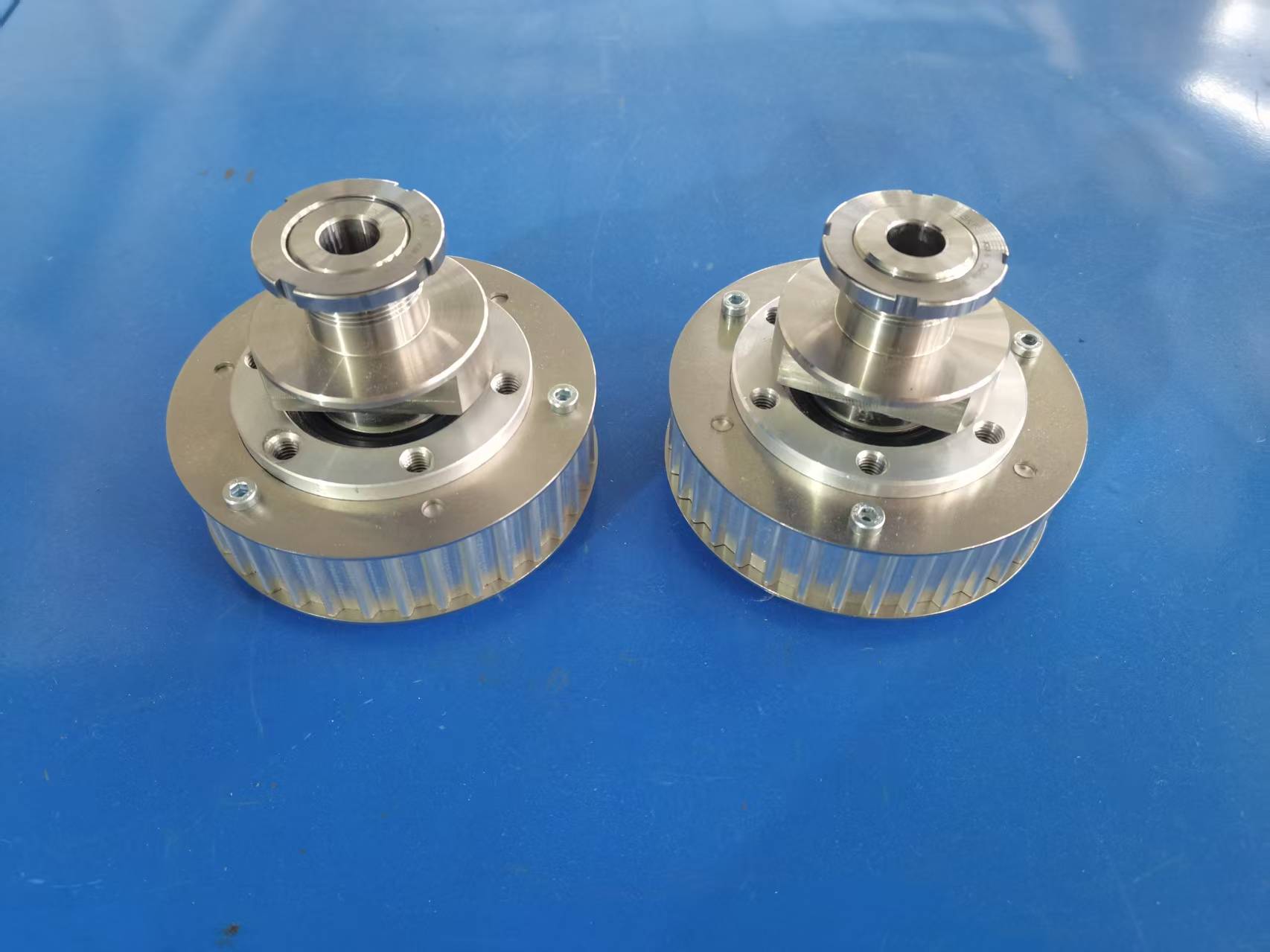

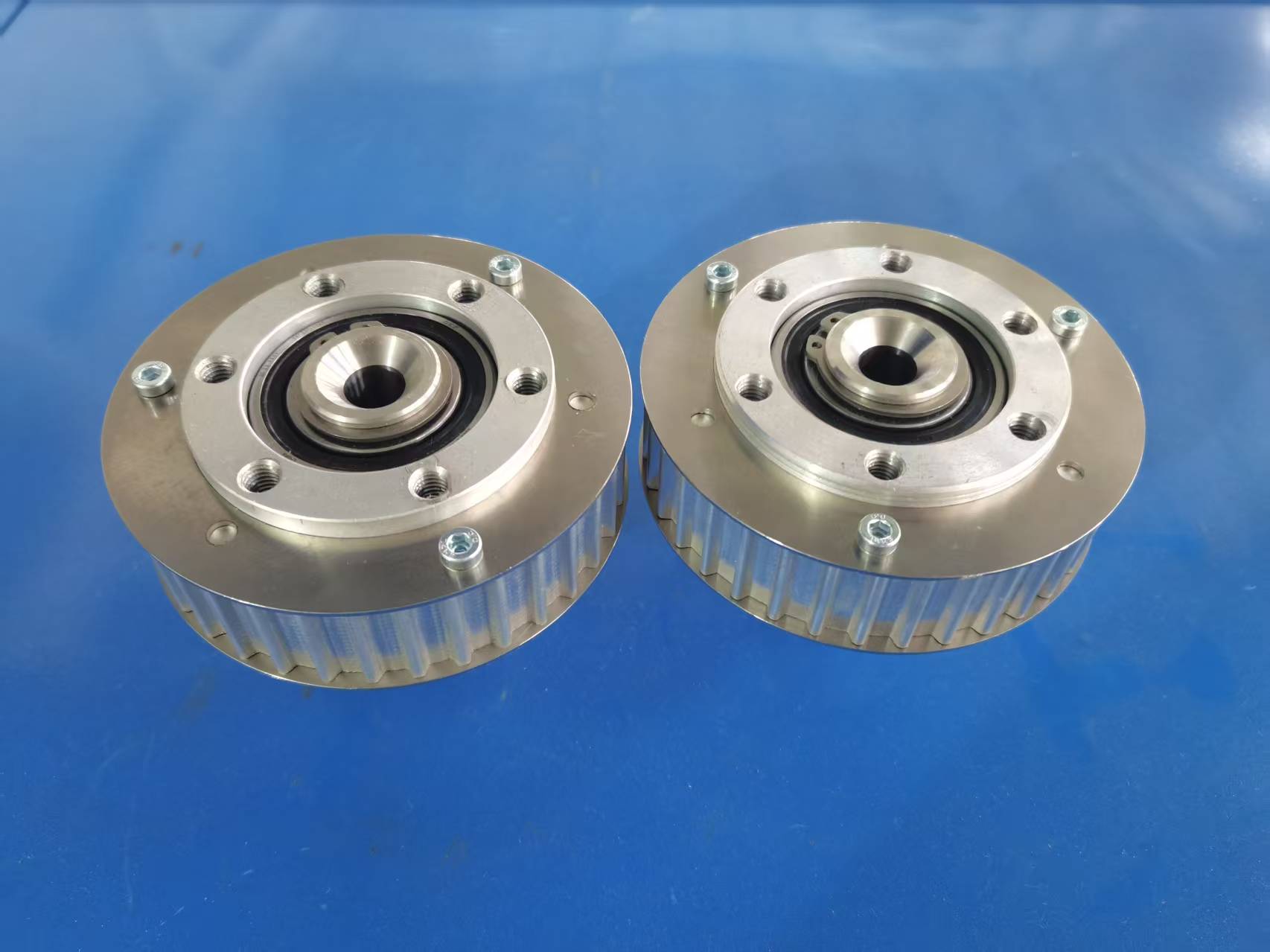

What Is a Precision Synchronous Pulley?
A precision synchronous pulley, also known as a timing belt pulley, is a toothed power transmission component designed to work with a matching timing belt. Unlike friction-driven pulleys, synchronous pulleys transmit motion through positive tooth engagement, eliminating slippage and maintaining an exact speed ratio.
This design provides accurate positioning, stable torque transmission, and repeatable motion, making synchronous pulleys an ideal choice for industrial automation, robotics, CNC equipment, packaging machinery, and precision conveyor systems. Typical synchronous drive efficiencies exceed 95%, while requiring no lubrication during operation.
How Does a Timing Pulley Work?
A timing pulley meshes with the teeth of a synchronous belt, ensuring that every pulley rotation corresponds precisely to belt movement.
Key advantages include:
Because motion is transmitted through tooth engagement rather than friction, timing pulley systems are well suited for servo motors, stepper motors, and other precision motion-control applications.
Key Advantages
MetalKeen manufactures precision timing pulleys for demanding industrial applications.
Main Benefits
High positioning accuracy
Excellent concentricity
Precision hobbed tooth profiles
Low vibration
Stable high-speed performance
High torque transmission
Excellent wear resistance
Long service life
Custom bore and hub configurations
OEM customization available
Manufacturing Process
Each synchronous pulley is manufactured using precision machining and strict quality control.
Engineering Drawing Review
↓
Material Inspection
↓
CNC Turning
↓
Gear Hobbing
↓
Keyway Machining
↓
Drilling & Tapping
↓
Deburring
↓
Surface Treatment
↓
Dynamic Balance (Optional)
↓
CMM Inspection
↓
Final Inspection
↓
Packaging
Special attention is given to tooth profile accuracy, bore concentricity, and radial runout to ensure smooth belt engagement and long service life.
Technical Specifications
Typical manufacturing capabilities include:
Outside Diameter: Customized
Tooth Profile: HTD, GT, AT, T, XL, L, H, MXL
Number of Teeth: Customized
Bore Diameter: Customized
Keyway: DIN / ANSI Standard
Surface Roughness: According to Drawing
Concentricity: According to Drawing
Radial Runout: According to Drawing
Dynamic Balance: Optional
OEM Manufacturing: Supported
Available Tooth Profiles
MetalKeen manufactures timing pulleys compatible with major international standards.
Available profiles include:
HTD
GT / GT2
AT Series
T Series
MXL
XL
L
H
3M
5M
8M
Selecting the correct tooth profile ensures proper belt engagement, higher torque capacity, reduced noise, and improved service life. Curvilinear profiles such as HTD and GT are commonly preferred for higher torque applications, while trapezoidal profiles remain popular for general-purpose positioning systems.
Material Options
Material selection depends on load capacity, operating speed, inertia requirements, and environmental conditions.
Available materials include:
Aluminum Alloy
Carbon Steel
40Cr Alloy Steel
Stainless Steel 304
Stainless Steel 316
Aluminum pulleys are often chosen for lightweight, high-speed systems, while steel pulleys provide greater durability and load capacity for heavy-duty applications.
Surface Finish Options
Different applications require different surface treatments.
Available finishes include:
Surface treatments improve corrosion resistance, reduce wear, and enhance long-term performance.
Typical Applications
Precision synchronous pulleys are widely used in industrial motion control systems.
Applications include:
Timing Pulley vs V-Belt Pulley
Timing Pulley | V-Belt Pulley |
Positive tooth engagement | Friction drive |
Zero slippage | Slippage possible |
Constant speed ratio | Speed ratio may vary under load |
High positioning accuracy | Lower positioning accuracy |
Ideal for servo systems | Better for general power transmission |
No lubrication required | Minimal maintenance but friction-dependent |
Timing pulleys are preferred for applications where synchronized motion, repeatable positioning, and precise speed control are essential.
Quality Inspection
Every synchronous pulley undergoes comprehensive inspection before shipment.
Inspection includes:
Material Certification
CMM Dimensional Inspection
Tooth Profile Verification
Bore Diameter Inspection
Keyway Inspection
Concentricity Measurement
Radial Runout Test
Surface Finish Inspection
Dynamic Balance Test (Optional)
Visual Inspection
Inspection reports and material certificates are available upon request.
Frequently Asked Questions
What is a synchronous pulley?
A synchronous pulley is a toothed pulley that works with a timing belt to provide precise, slip-free power transmission and accurate motion control.
What is the difference between a timing pulley and a V-belt pulley?
A timing pulley uses positive tooth engagement to eliminate slippage and maintain an exact speed ratio, while a V-belt pulley relies on friction and may experience slip under varying loads.
Which tooth profile should I choose?
HTD and GT profiles are commonly selected for high-torque drives, while T and AT profiles are often used in precision automation and positioning systems.
Which materials are available?
We manufacture pulleys from aluminum alloy, carbon steel, alloy steel, and stainless steel to suit different load, speed, and environmental requirements.
Yes. We provide OEM and custom manufacturing based on customer drawings, CAD models, tooth profiles, and shaft specifications.
We provide CMM dimensional inspection, tooth profile verification, runout measurement, concentricity testing, dynamic balance (optional), and complete material traceability.
Request a Quote
Looking for a reliable manufacturer of precision synchronous pulleys for industrial automation equipment?
MetalKeen provides complete OEM solutions, including engineering review, CNC turning, gear hobbing, milling, surface treatment, dynamic balancing, and rigorous quality inspection. Whether you need a prototype or high-volume production, our engineering team can manufacture timing pulleys that match your exact belt profile, shaft configuration, and performance requirements.
Send us your CAD drawings, pulley specifications, or project requirements today to receive a fast quotation and professional engineering support.
