Item | Specification |
|---|---|
Product Name | High Precision Central Support Roller Assembly |
Product Type | Heavy-duty Support Wheel Assembly |
Material | Carbon Steel, Alloy Steel, Stainless Steel |
Manufacturing Process | CNC Turning + CNC Milling + Grinding + Precision Assembly |
Roller Diameter | Customized |
Shaft Material | Alloy Steel |
Bearing Type | Ball Bearing / Roller Bearing |
Heat Treatment | Induction Hardening / Quenching & Tempering |
Surface Finish | Precision Grinding, Black Oxide, Anti-rust Oil |
OEM / ODM | Available |
Inspection | CMM, Runout Inspection, Hardness Test |
Applications | Conveyor Systems, Heavy Machinery, Industrial Equipment |

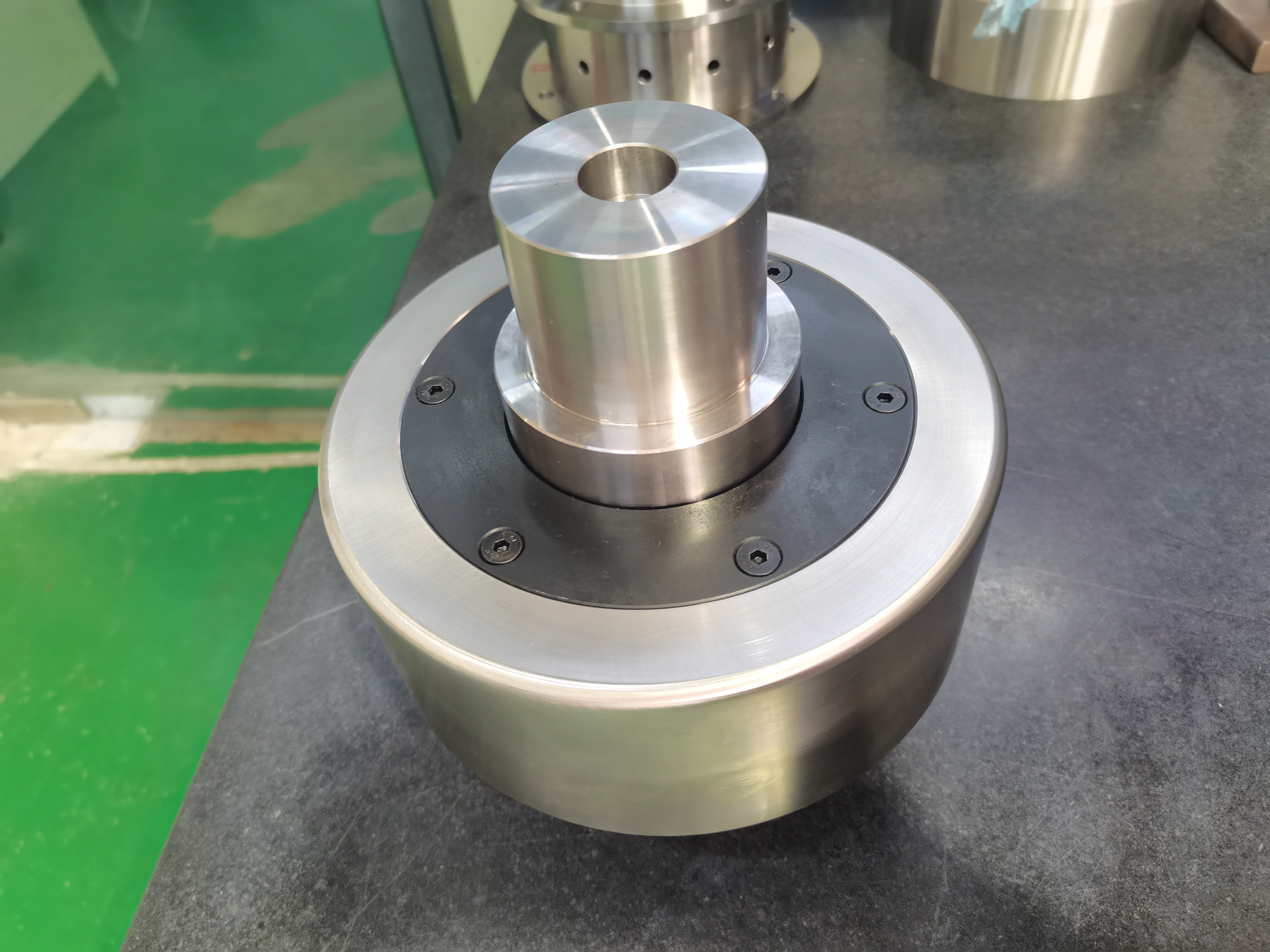

A central support roller assembly is a precision-engineered rotating component designed to support moving structures, guide heavy loads, and maintain stable motion within industrial machinery. It typically consists of a roller body, precision shaft, bearings, bearing seats, seals, and fastening components assembled into a complete unit.
Support roller assemblies reduce friction, distribute loads evenly, and improve alignment in mechanical transmission systems. They are widely used in conveyor equipment, material handling systems, machine tools, heavy automation equipment, and large industrial machinery.
Compared with individual rollers, a complete roller assembly offers easier installation, improved concentricity, longer service life, and lower maintenance costs.
Heavy-duty support roller assemblies are designed for continuous industrial operation.
High load carrying capacity
Excellent wear resistance
Stable rotational accuracy
Low vibration
Smooth rolling performance
High concentricity
Long bearing life
Reduced maintenance
Custom dimensions available
Suitable for harsh industrial environments
Precision machining and controlled assembly ensure reliable performance under heavy radial loads and continuous operation.
MetalKeen manufactures support roller assemblies using a complete precision production process.
Engineering Review
↓
Material Inspection
↓
Forging / Steel Preparation
↓
CNC Turning
↓
Heat Treatment
↓
Precision Grinding
↓
Bearing Seat Machining
↓
CNC Milling
↓
Surface Treatment
↓
Bearing Assembly
↓
Runout Inspection
↓
Dynamic Balance (Optional)
↓
Final Inspection
↓
Packaging
Critical dimensions such as bearing seats, shaft journals, and mounting surfaces are machined with tight tolerances to improve alignment and reduce vibration during operation.
Typical manufacturing capabilities include:
Roller Diameter: Customized
Roller Length: Customized
Shaft Diameter: Customized
Bearing Type: Deep Groove Ball Bearing / Tapered Roller Bearing
Surface Roughness: According to Drawing
Roundness: According to Drawing
Concentricity: According to Drawing
Dynamic Balance: Optional
OEM Manufacturing: Supported
All products are manufactured according to customer drawings and technical specifications.
Material selection depends on operating load, wear resistance, corrosion resistance, and working environment.
Available materials include:
Carbon Steel
45 Steel
40Cr Alloy Steel
42CrMo Alloy Steel
Stainless Steel 304
Stainless Steel 316
Heat-treated alloy steels are recommended for applications requiring higher fatigue strength and longer service life.
To improve mechanical performance and durability, multiple heat treatment options are available.
Available processes include:
Quenching & Tempering
Induction Hardening
Surface Hardening
Normalizing
Stress Relief
Proper heat treatment increases hardness, improves wear resistance, enhances fatigue strength, and extends the operational life of the roller assembly.
Surface quality directly affects rolling performance and bearing life.
Available finishes include:
Precision Grinding
Fine Turning
Black Oxide
Anti-rust Oil
Zinc Plating
Hard Chrome Plating
Industrial Painting
Customer-specified Surface Finish
Precision-ground rolling surfaces help reduce friction, improve rotational stability, and extend bearing service life.
Heavy-duty support roller assemblies are widely used in industrial equipment requiring reliable support and smooth movement.
Applications include:
Conveyor Systems
Mining Equipment
Material Handling Equipment
Steel Mills
Cement Plants
Paper Machinery
Packaging Machinery
Industrial Automation
Heavy Machine Tools
Lifting Equipment
Agricultural Machinery
Logistics Systems
Support Roller Assembly | Guide Roller |
Supports heavy loads | Primarily guides movement |
Carries radial loads | Controls direction |
Includes bearing assembly | May use simple bearings or bushings |
Higher structural rigidity | Lighter-duty design |
Used in heavy machinery | Used in guiding systems |
Designed for continuous load | Designed for positioning |
Selecting the correct roller depends on load capacity, mounting configuration, operating speed, and service environment.
Every roller assembly undergoes comprehensive inspection before shipment.
Inspection includes:
Material Certification
Chemical Composition Analysis
Hardness Testing
Bearing Seat Inspection
Runout Measurement
Concentricity Inspection
CMM Dimensional Inspection
Surface Roughness Measurement
Assembly Inspection
Packaging Inspection
Inspection reports and material certificates are available upon request.
A central support roller assembly is a complete rotating support unit consisting of a roller, shaft, bearings, seals, and housing components designed to support heavy loads and ensure smooth machine operation.
Support rollers primarily carry loads and maintain structural stability, while guide rollers control movement and positioning with lower load requirements.
Carbon steel, alloy steel, stainless steel, and heat-treated engineering steels are available depending on application requirements.
Yes. We manufacture custom support roller assemblies according to customer drawings, CAD models, or samples.
Mining, conveyors, steel mills, cement plants, packaging machinery, material handling systems, industrial automation, and heavy machinery.
We provide hardness testing, CMM dimensional inspection, runout measurement, concentricity inspection, bearing seat verification, and complete material traceability.
Looking for a reliable manufacturer of custom heavy-duty support roller assemblies?
MetalKeen provides complete engineering support from material selection and CNC machining to heat treatment, precision assembly, and final inspection. Whether you require prototype development or high-volume OEM production, our experienced engineering team can manufacture support roller assemblies to your exact drawings and technical specifications.
Send us your CAD drawings or project requirements today to receive a fast quotation and professional engineering support.
