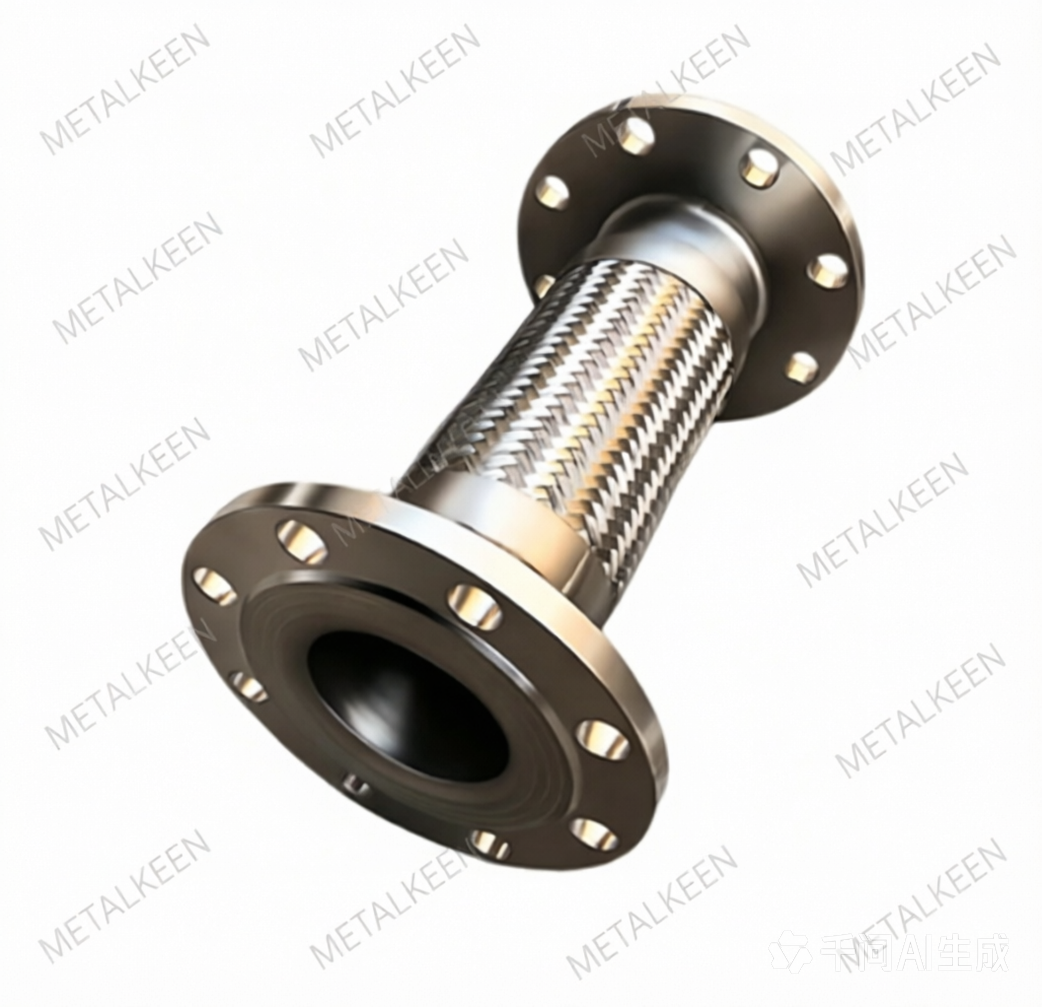

MetalKeen manufactures custom stainless steel pipeline compensators and bellows expansion joints for high-temperature, high-pressure, and corrosive pipeline systems. Available in 304, 304L, 316L, 310S, HC276, Inconel 625, and Monel 400, our compensators undergo vacuum helium leak testing, gas tightness testing, fatigue testing, and stiffness testing to ensure reliable performance in critical applications.
A pipeline compensator (also called a bellows expansion joint or pipe expansion compensator) is a flexible element installed in piping systems to absorb:
Thermal expansion and contraction caused by temperature changes
Vibration and noise from pumps, compressors, and turbines
Misalignment between connected equipment
Pressure pulsations in process pipelines
MetalKeen's stainless steel compensators are engineered for petrochemical, power generation, HVAC, shipbuilding, and pharmaceutical pipeline systems where corrosion resistance and leak integrity are critical.
Table
Material | UNS / Grade | Max Temp | Corrosion Resistance | Best For |
|---|---|---|---|---|
304 SS | S30400 | 800°C (intermittent) | General corrosion resistance | Water, steam, food-grade pipelines |
304L SS | S30403 | 800°C | Improved weldability, low carbon | Welded assemblies, sensitization prevention |
316L SS | S31603 | 870°C | Superior chloride resistance | Marine, chemical, coastal environments |
310S SS | S31008 | 1150°C | Excellent high-temperature oxidation | Furnace ducts, exhaust systems, heat treatment |
HC276 (Hastelloy C-276) | N10276 | 980°C | Outstanding resistance to pitting, crevice corrosion, and oxidizing acids | Chlorine, bleach, strong acid pipelines |
Inconel 625 | N06625 | 980°C | Exceptional fatigue strength and oxidation resistance | Aerospace, nuclear, extreme heat/corrosion |
Monel 400 | N04400 | 540°C | Excellent resistance to seawater and hydrofluoric acid | Offshore, marine, hydrofluoric acid service |
Selection Tip: For general industrial applications, 316L offers the best balance of corrosion resistance and cost. For extreme temperatures above 900°C, 310S or Inconel 625 is required. For aggressive chemical environments, HC276 or Monel 400 is recommended.
Table
Compensator Type | Construction | Movement Absorption | Typical Application |
|---|---|---|---|
Axial Expansion Joint | Single or multi-ply bellows | Axial compression/extension | Straight pipeline thermal expansion |

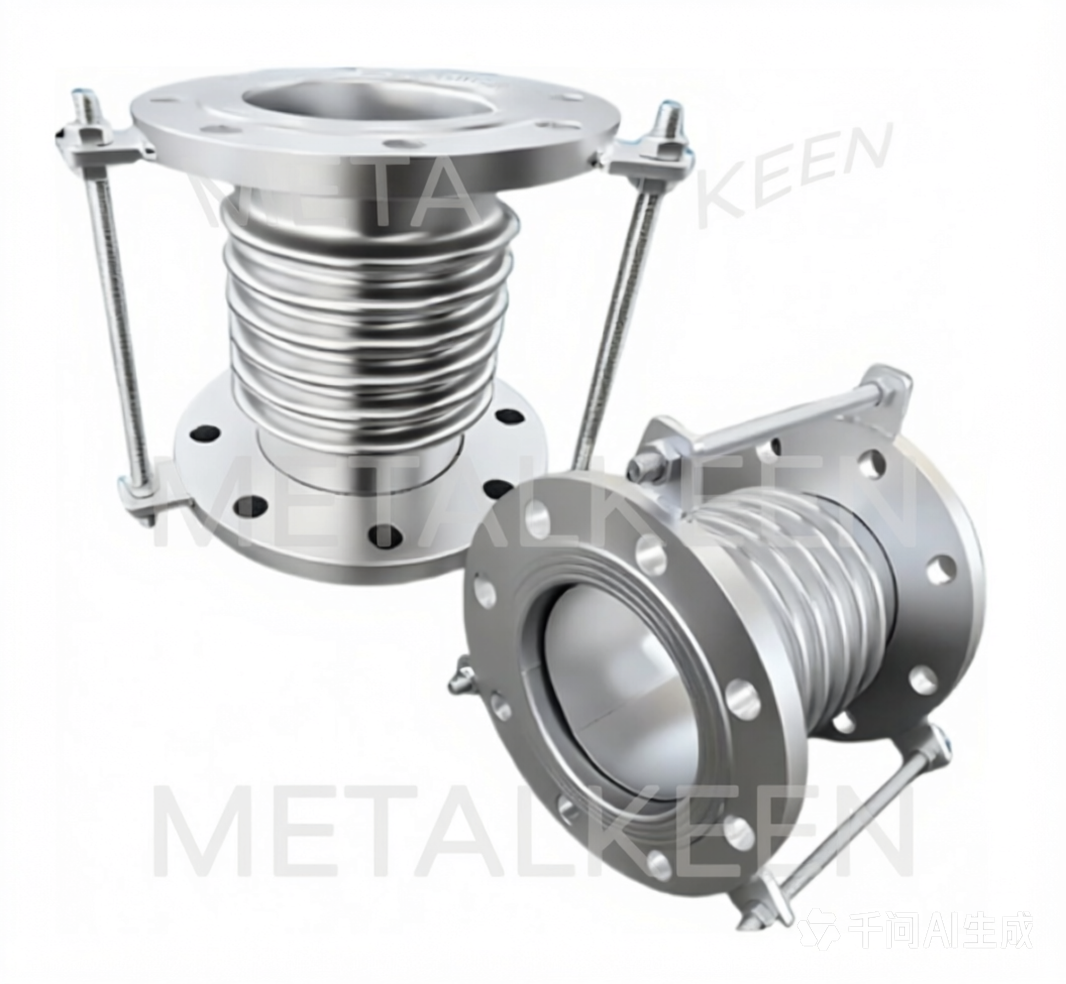

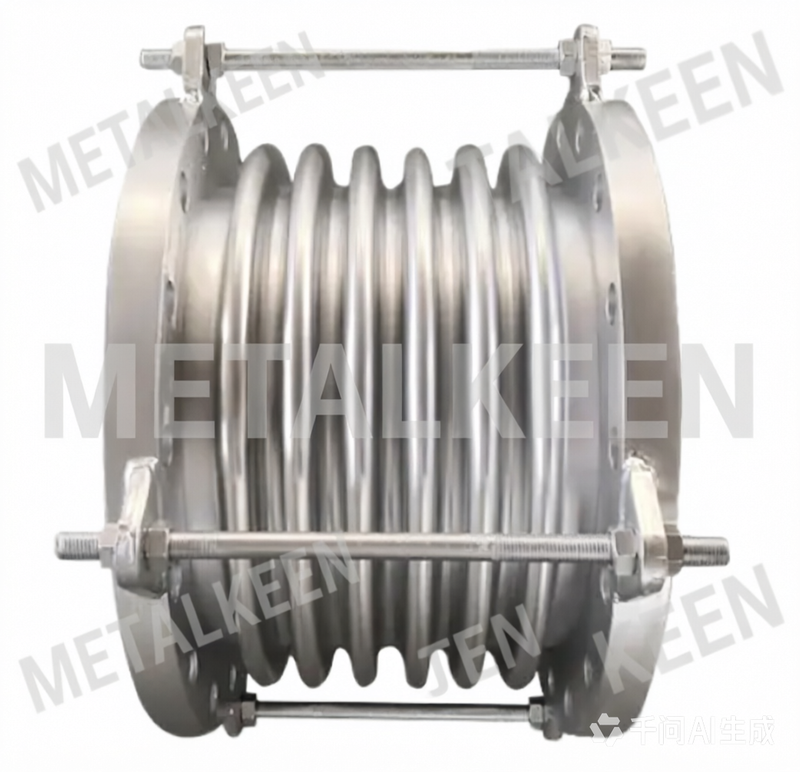

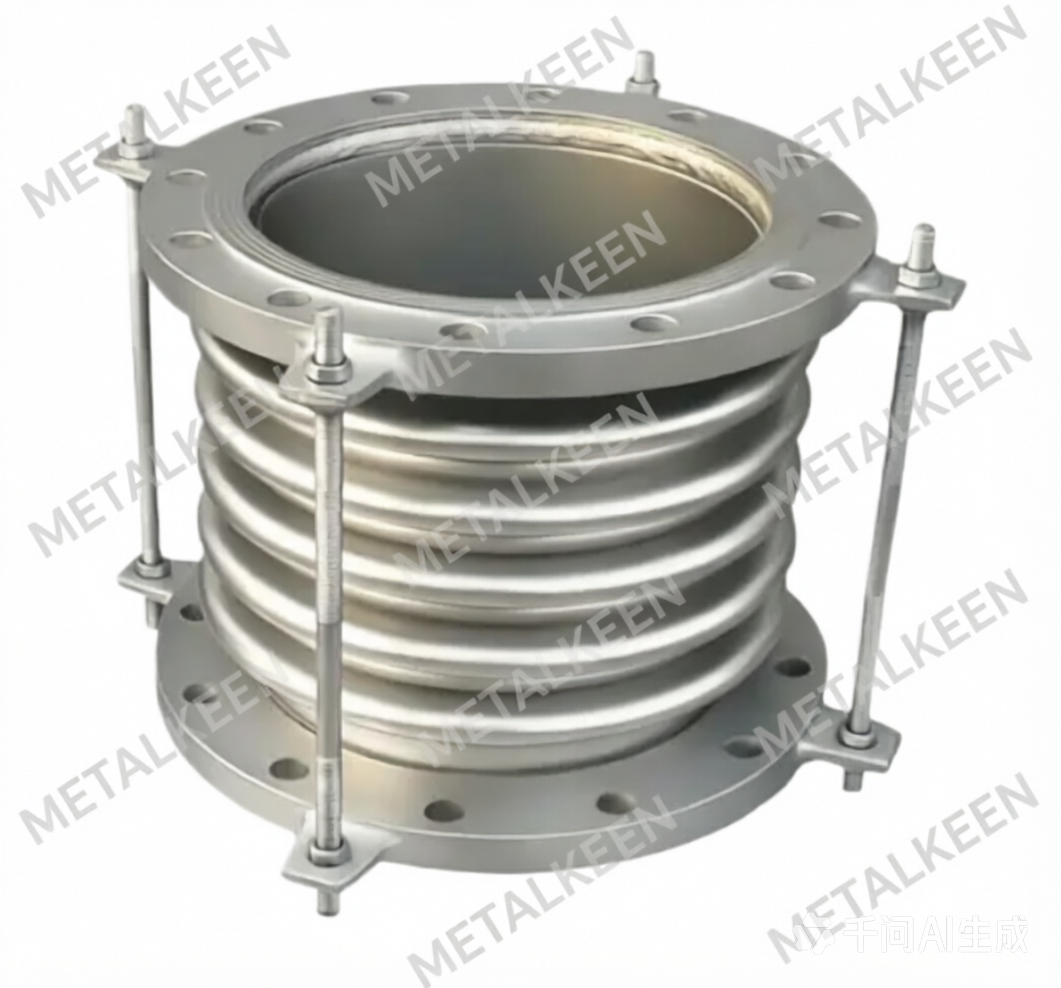

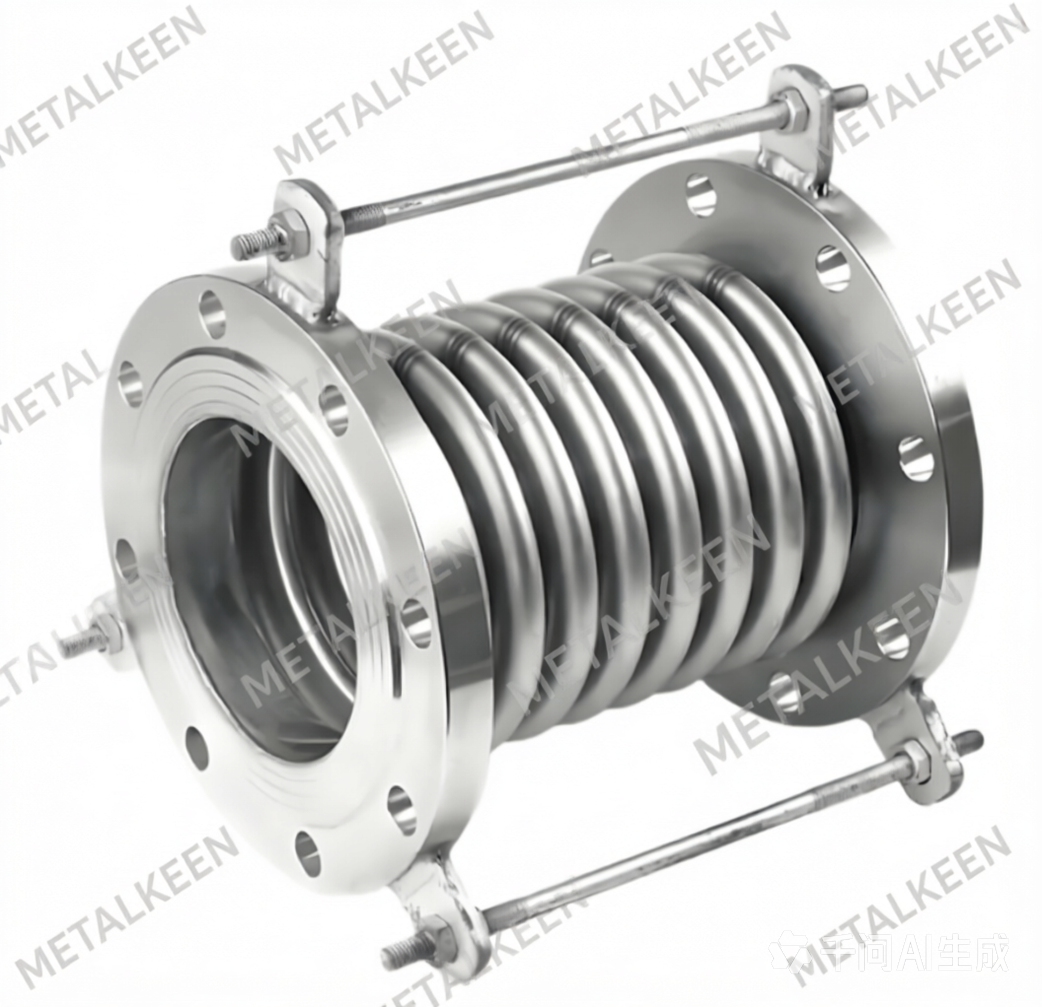

Lateral Expansion Joint | Bellows with tie rods or hinges | Lateral offset | Pipe runs with perpendicular displacement |
Angular Expansion Joint | Hinged or gimbal bellows | Angular rotation | Equipment connection misalignment |
Universal Expansion Joint | Two bellows with center pipe | Lateral + axial combined | Complex multi-directional movement |
Pressure Balanced Expansion Joint | Bellows + balancing bellows | Axial without thrust load | High-pressure systems with anchor limitations |
Externally Pressurized Expansion Joint | Bellows under external pressure | Large axial movement | Steam and hot water distribution |
Rectangular Expansion Joint | Fabric-reinforced or metal bellows | Thermal expansion in ducting | Flue gas ducts, HVAC air handling |
Table
Specification | Details |
|---|---|
Bellows Forming Method | Hydraulic forming, roll forming, or elastomeric die forming |
Ply Construction | Single-ply, double-ply, or multi-ply (up to 5 plies) |
Nominal Diameter (DN) | DN25 – DN3000 (1" – 120") |
Pressure Rating | Vacuum to 10 MPa (custom higher pressure on request) |
Movement Capacity | Axial: ±5 mm – ±500 mm; Lateral: ±2 mm – ±200 mm; Angular: ±2° – ±45° |
End Connections | Weld ends, flanged (ANSI/EN/DIN/JIS), threaded, or grooved |
Bellows Thickness | 0.3 mm – 3.0 mm per ply |
Reinforcement | Tie rods, limit rods, hinges, gimbals, or pantographic linkage |
Liners / Covers | Internal flow liner, external protective cover, or insulation jacket |
Table
Step | Process | Quality Control |
|---|---|---|
Material Preparation | Coil slitting, sheet cutting, tube forming | PMI (Positive Material Identification) spectrometer check |
Bellows Forming | Hydraulic or mechanical forming of convolutions | Dimensional inspection of pitch, height, and wall thickness |
End Fitting Welding | TIG (GTAW) or plasma welding of flanges/pipe ends | 100% visual inspection + RT/PT per specification |
Assembly | Installation of tie rods, hinges, liners, and covers | Torque verification, movement range check |
Heat Treatment | Solution annealing (when required for corrosion resistance) | Hardness and metallographic verification |
Pressure Testing | Hydrostatic or pneumatic pressure test | 1.5× design pressure, no leakage |
Leak Testing | Vacuum helium leak test or gas tightness test | Sensitivity down to 10⁻⁹ Pa·m³/s |
Fatigue & Stiffness Test | Cyclic pressure or displacement testing | Cycle life verification and spring rate measurement |
Final Inspection | Dimensional, visual, functional | Full inspection report |
MetalKeen performs comprehensive testing to validate every compensator before shipment:
Table
Test | Method | Standard | Purpose |
|---|---|---|---|
Material Verification | PMI spectrometer analysis | ASTM E415 | Confirm alloy grade matches specification |
Vacuum Helium Leak Test | Mass spectrometer helium leak detector | ASTM E498 / GB/T 15823 | Detect micro-leaks down to 10⁻⁹ Pa·m³/s |
Gas Tightness Test | Air or nitrogen pressure decay | Customer specification | Verify seal integrity at operating pressure |
Fatigue Test | Cyclic pressure or displacement cycling | EJMA standards | Validate design life under repeated loading |
Stiffness Test | Spring rate measurement (axial/lateral/angular) | EJMA / ISO 15348 | Confirm force-displacement characteristics |
Hydrostatic Pressure Test | Water pressurization to 1.5× MAWP | ASME B31.3 / EN 13445 | Structural integrity and safety margin |
Dimensional Inspection | CMM, profile projector, gauges | Customer drawing | Ensure fit and movement range |
Our stainless steel pipeline compensators are installed in critical systems worldwide:
Table
Industry | Application | Typical Material |
|---|---|---|
Petrochemical & Refining | Catalytic crackers, reformers, distillation units | 316L, HC276, Inconel 625 |
Power Generation | Steam turbines, HRSG, boiler feedwater | 304, 316L, 310S |
HVAC & Building Services | Chilled water, heating hot water, steam distribution | 304, 304L |
Shipbuilding & Marine | Exhaust gas, seawater cooling, ballast systems | 316L, Monel 400 |
Pharmaceutical & Food | Clean steam, WFI, CIP/SIP piping | 316L (electropolished) |
Nuclear Energy | Primary and secondary loop piping | Inconel 625, 316L |
Waste Incineration | Flue gas ducting, scrubber systems | 310S, HC276 |
Pulp & Paper | Digester, bleach plant, recovery boiler | 316L, HC276 |
✅ Wide Material Range — From 304 SS to exotic alloys (HC276, Inconel 625, Monel 400)
✅ Custom Engineering — Designed to your movement, pressure, temperature, and space constraints
✅ Advanced Leak Testing — Vacuum helium leak detection for zero-leak assurance
✅ Fatigue & Stiffness Verified — Tested to EJMA and customer-specific cycle life requirements
✅ Full Traceability — PMI verification, heat numbers, and mill test reports for every order
✅ Global Standards Compliance — ASME, EN, EJMA, GB, and JIS design standards
Q1: What is a stainless steel pipeline compensator used for? A stainless steel pipeline compensator (also called a bellows expansion joint) absorbs thermal expansion, vibration, and misalignment in piping systems. It prevents stress damage to pumps, valves, vessels, and pipe supports caused by temperature changes, pressure pulsations, or seismic movement.
Q2: What material should I choose for my pipeline compensator? For general water and steam applications, 304 or 316L stainless steel is sufficient. For high-temperature exhaust or furnace ducts, choose 310S. For aggressive chemical environments with chlorine or strong acids, HC276 (Hastelloy C-276) or Inconel 625 is required. For seawater or hydrofluoric acid service, Monel 400 is the optimal choice.
Q3: What is vacuum helium leak testing, and why is it important? Vacuum helium leak testing uses a mass spectrometer to detect extremely small leaks (down to 10⁻⁹ Pa·m³/s) by introducing helium gas to the pressurized compensator. It is the most sensitive leak detection method available and is critical for high-vacuum, cryogenic, and toxic gas pipeline applications where even microscopic leaks are unacceptable.
Q4: What is the difference between axial, lateral, and angular expansion joints?
Axial compensators absorb movement along the pipe centerline (compression/extension).
Lateral compensators absorb movement perpendicular to the pipe centerline (offset).
Angular compensators absorb rotation or bending at the joint. Multi-directional movement requires a universal or pressure-balanced expansion joint.
Q5: Do you provide fatigue and stiffness testing for expansion joints? Yes. We perform fatigue testing (cyclic pressure or displacement cycling) to validate the design life of the bellows under repeated loading. We also measure stiffness (spring rate) in axial, lateral, and angular directions to confirm the compensator's force-displacement behavior matches design calculations and piping stress analysis requirements.
Q6: Can you manufacture compensators to ASME, EN, or EJMA standards? Yes. Our design and manufacturing processes comply with ASME B31.3, EN 13445, EJMA (Expansion Joint Manufacturers Association) standards, as well as GB/T 12777 (Chinese standard) and JIS B 8277. Please specify your required standard when requesting a quote.
Q7: What end connections are available for your pipeline compensators? We offer weld ends (butt weld or socket weld), flanged ends (ANSI Class 150–2500, EN PN6–PN100, DIN, JIS), threaded ends (NPT, BSP), and grooved ends (Victaulic-compatible). Custom end fittings and transition pieces can also be fabricated.
