| Item | Specification |
|---|---|
| Product Name | Thin Thickness Stainless Steel 316L Fabrication |
| Product Type | Precision Sheet Metal Fabrication |
| Material | Stainless Steel 316L |
| Material Thickness | 0.5–6.0 mm (Custom Available) |
| Manufacturing Process | Fiber Laser Cutting + CNC Bending + TIG Welding + CNC Machining |
| Welding Process | TIG, Laser Welding, Spot Welding |
| Surface Finish | No.4 Brushed, BA, Mirror Polish, Pickling, Passivation, Electropolishing |
| OEM / ODM | Available |
| Inspection | CMM, PMI, Weld Inspection, Dimensional Inspection |
| Applications | Food Equipment, Pharmaceutical Machinery, Chemical Equipment, Marine Systems |

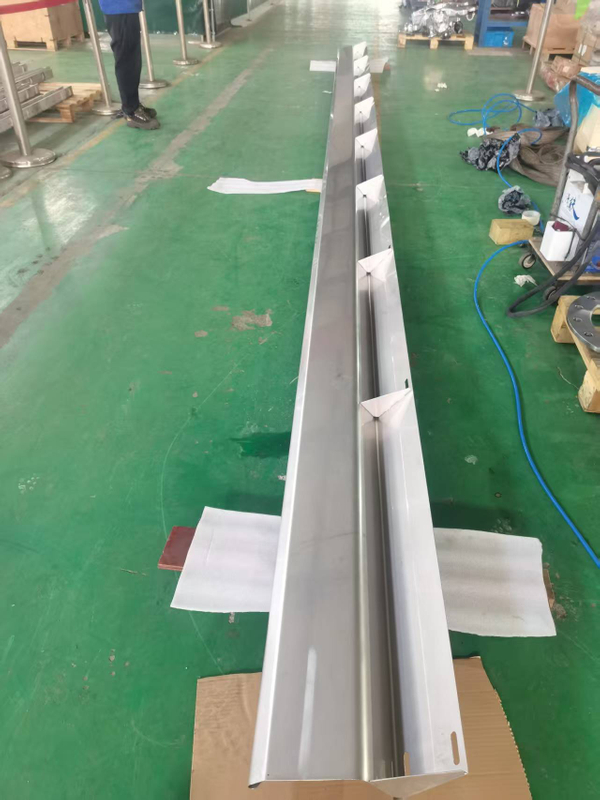

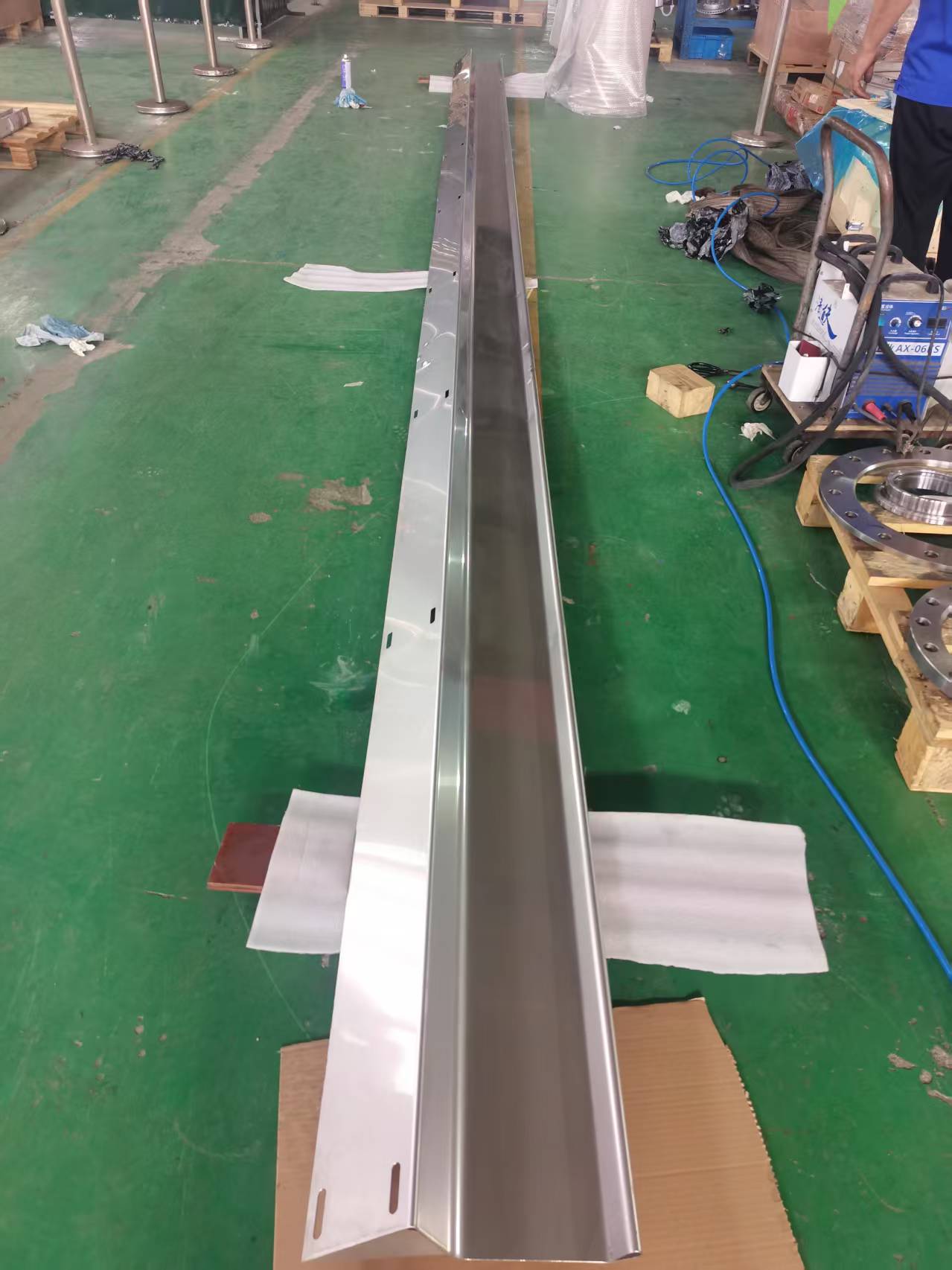

Thin thickness 316L stainless steel fabrication is the process of manufacturing precision sheet metal components from low-carbon 316L stainless steel using laser cutting, bending, welding, machining, and finishing operations.
Compared with thicker plate fabrication, thin-gauge fabrication requires tighter control of heat input, clamping, and forming to prevent distortion while maintaining dimensional accuracy.
Because 316L contains molybdenum and has a low carbon content, it provides excellent resistance to chlorides, cleaning chemicals, and weld-related corrosion, making it a preferred material for hygienic and corrosive environments.
Although both grades are widely used, 316L offers superior corrosion resistance in demanding environments.
Excellent resistance to chloride corrosion
Low-carbon composition reduces weld sensitization
Outstanding weldability
High formability for thin sheet fabrication
Hygienic surface suitable for food and pharmaceutical equipment
Long service life
Excellent appearance after polishing
Good dimensional stability
Suitable for marine and chemical applications
Fully recyclable
Each fabricated component follows a precision manufacturing workflow.
Engineering Drawing Review
↓
316L Material Verification
↓
Fiber Laser Cutting
↓
CNC Press Brake Forming
↓
Precision TIG / Laser Welding
↓
Grinding & Deburring
↓
CNC Machining (If Required)
↓
Pickling & Passivation
↓
Surface Finishing
↓
Dimensional Inspection
↓
Packaging
For thin materials, controlled heat input, proper fixturing, and balanced welding sequences are essential to minimize distortion and preserve flatness.
Typical manufacturing capabilities include:
Thickness: 0.5–6.0 mm (Custom)
Maximum Part Size: Customized
Dimensional Tolerance: According to Drawing
Flatness: According to Drawing
Surface Roughness: Customized
Weld Quality: According to Customer Requirements
Hole Position Accuracy: According to Drawing
OEM Manufacturing: Supported
MetalKeen provides integrated fabrication and precision machining services.
Available processes include:
Fiber Laser Cutting
CNC Bending
TIG Welding
Laser Welding
Spot Welding
CNC Milling
CNC Turning
Drilling & Tapping
Mechanical Assembly
Combining fabrication and machining under one production system helps improve dimensional consistency and shorten production lead times.
Surface treatment improves both appearance and corrosion resistance.
Available finishes include:
No.4 Brushed Finish
BA (Bright Annealed)
Mirror Polish
Glass Bead Blasting
Pickling
Passivation
Electropolishing
Protective Film
Passivation and electropolishing are commonly specified for food, pharmaceutical, and chemical equipment because they enhance the protective oxide layer and improve cleanability.
Thin 316L fabricated components are widely used in industries requiring corrosion resistance and precision.
Applications include:
Food Processing Equipment
Pharmaceutical Machinery
Chemical Processing Systems
Pulp & Paper Equipment
Water Treatment Systems
Medical Equipment
Marine Equipment
Semiconductor Equipment
Laboratory Instruments
Packaging Machinery
Industrial Automation
OEM Stainless Steel Assemblies
| Thin 316L Fabrication | Standard Stainless Fabrication |
|---|---|
| Optimized for thin-gauge material | Primarily medium and thick plate |
| Lower heat input during welding | Higher heat input acceptable |
| Greater emphasis on distortion control | Less sensitive to warping |
| High dimensional accuracy | General fabrication tolerances |
| Better corrosion resistance in welded areas | Depends on material grade |
| Suitable for hygienic equipment | General industrial applications |
Thin-gauge 316L fabrication is preferred for precision equipment where weight, corrosion resistance, and appearance are all critical.
Every fabricated component undergoes comprehensive quality inspection.
Inspection includes:
Material Certification (EN 10204 3.1 Available)
PMI (Positive Material Identification)
Weld Visual Inspection
Dye Penetrant Testing (Optional)
CMM Dimensional Inspection
Flatness Measurement
Surface Finish Verification
Final Assembly Inspection
Inspection reports and traceability documents are available upon request.
316L has a lower carbon content than standard 316, reducing the risk of weld sensitization while providing excellent corrosion resistance, especially in chloride-containing environments.
We manufacture custom components from approximately 0.5 mm to 6.0 mm thick, with dimensions and tolerances produced according to customer drawings. The suitable thickness depends on the application and structural requirements.
Food processing, pharmaceuticals, marine engineering, chemical processing, water treatment, semiconductor equipment, and precision industrial machinery.
Yes. We provide complete OEM and custom fabrication services based on 2D drawings, 3D CAD models, or physical samples.
We offer brushed, BA, mirror polishing, pickling, passivation, electropolishing, and other customer-specified finishes.
Material certification, PMI, CMM dimensional inspection, weld inspection, flatness measurement, surface finish verification, and full production traceability.
Need a trusted manufacturer for thin thickness 316L stainless steel fabrication?
MetalKeen provides complete OEM manufacturing services, including fiber laser cutting, CNC bending, precision welding, CNC machining, passivation, electropolishing, and rigorous quality inspection. Whether your project requires lightweight sheet metal parts, hygienic equipment components, or corrosion-resistant assemblies, our engineering team can manufacture them according to your drawings and technical specifications.
Send us your drawings, CAD files, or project requirements today to receive a fast quotation and engineering support.
