| Item | Specification |
|---|---|
| Product Name | Custom Bearing Housing Assembly |
| Product Type | Bearing Support Housing |
| Materials | Cast Iron, Ductile Iron, Cast Steel, Carbon Steel, Stainless Steel |
| Bearing Type | Ball Bearing, Roller Bearing, Spherical Roller Bearing, Tapered Roller Bearing |
| Manufacturing Process | Casting / Steel Fabrication + CNC Machining + Assembly |
| Housing Type | Pillow Block, Flange Housing, Split Housing, Custom Housing |
| Lubrication | Grease Lubrication / Oil Lubrication |
| Seal Type | Labyrinth Seal, Oil Seal, Contact Seal |
| Surface Finish | Painting, Powder Coating, Black Oxide, Passivation |
| OEM / ODM | Available |
| Inspection | CMM Inspection, Bore Measurement, Runout Test |
| Applications | Paper Machinery, Mining Equipment, Conveyors, Gearboxes, Pumps |

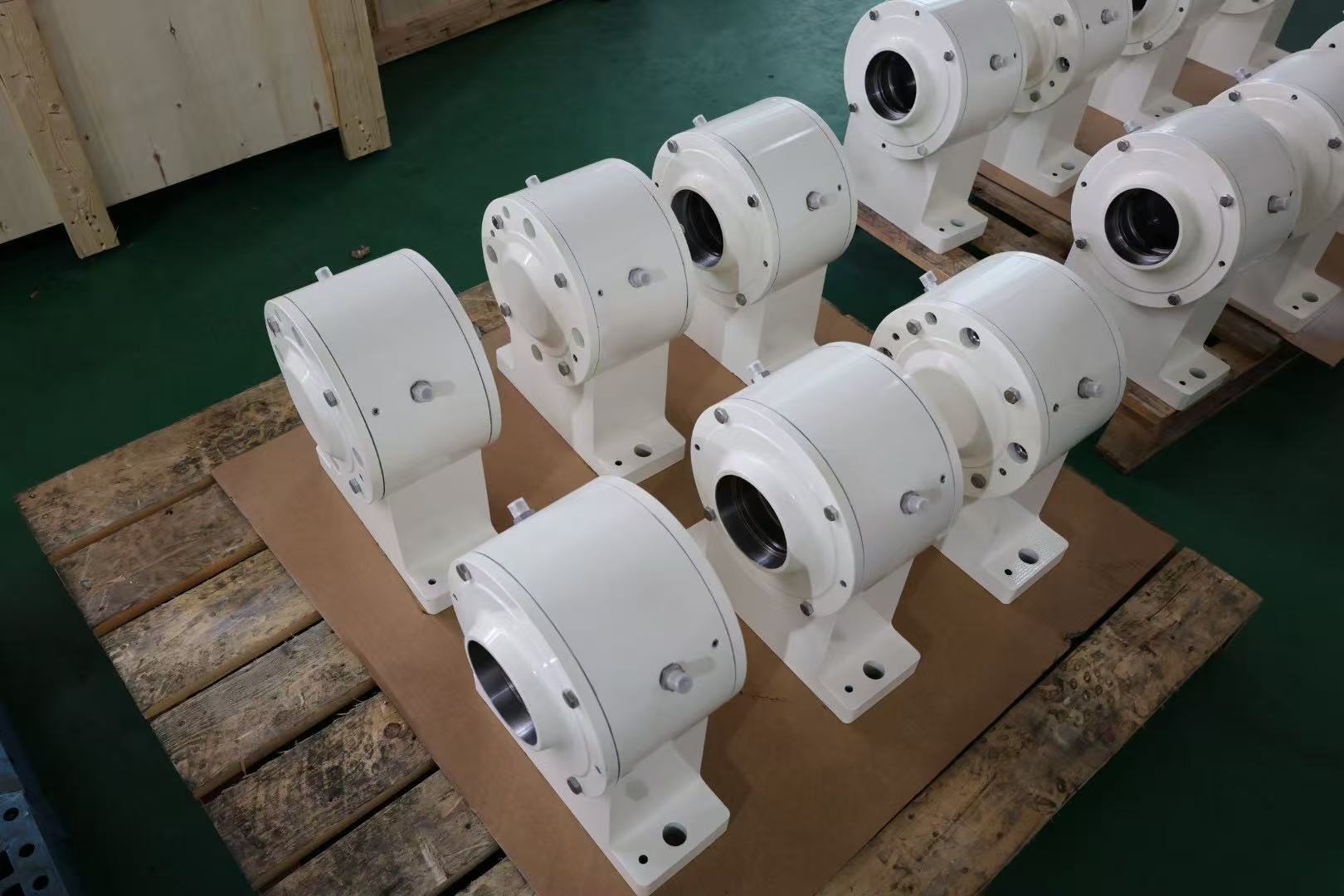

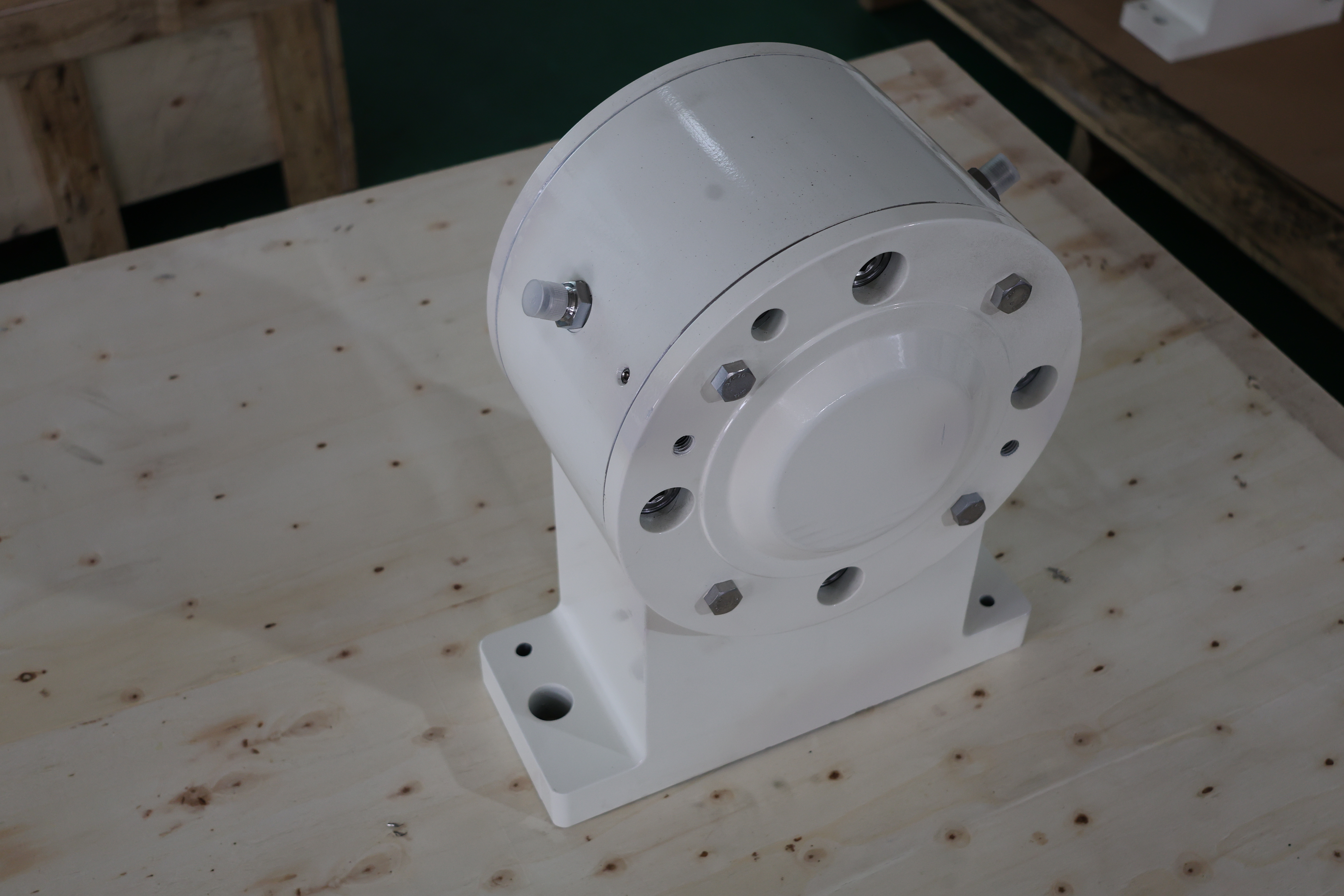

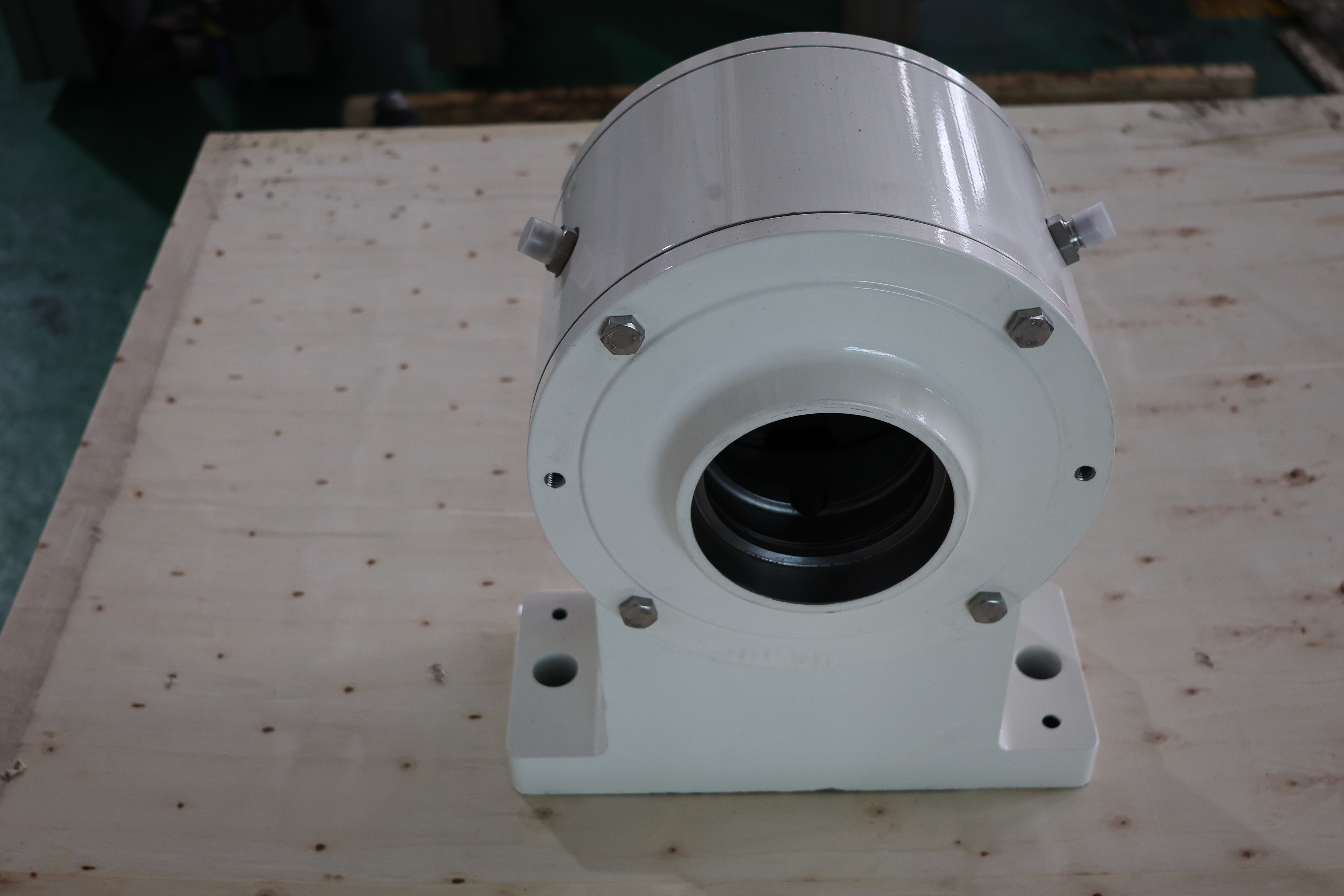

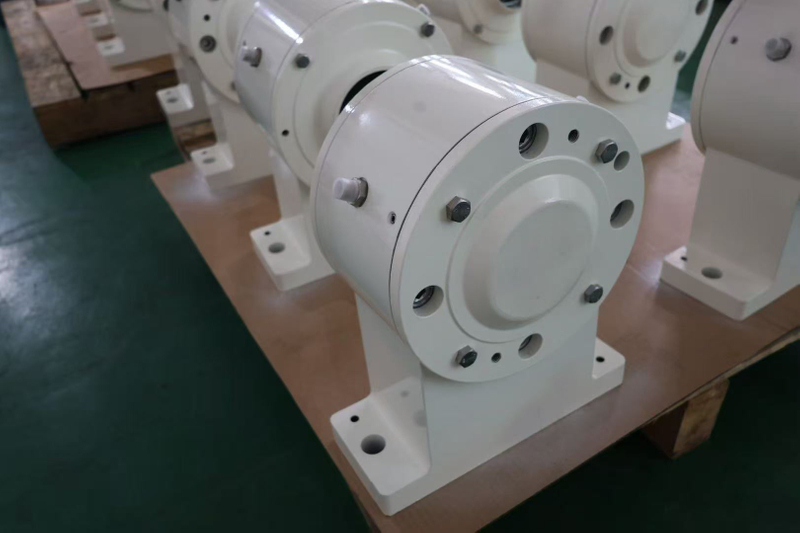

A bearing housing assembly is a complete support unit designed to locate, protect, and support rolling bearings while allowing a shaft to rotate smoothly. It typically consists of the housing body, bearing, seals, covers, fasteners, and lubrication features assembled into one integrated system.
The housing transfers loads from the rotating shaft into the machine frame, maintains shaft alignment, retains lubricant, and protects the bearing from dust, moisture, and other contaminants. Proper housing selection has a direct impact on bearing life, vibration, maintenance intervals, and overall machine reliability.
A properly designed bearing housing improves both equipment performance and maintenance efficiency.
Accurate shaft support
Improved bearing alignment
Reduced vibration
Higher load capacity
Better sealing performance
Longer bearing life
Easier maintenance
Reliable lubrication
Lower operating costs
OEM customization available
Every bearing housing assembly is manufactured through a controlled production process.
Engineering Drawing Review
↓
Material Certification
↓
Casting or Steel Fabrication
↓
CNC Turning
↓
CNC Milling
↓
Precision Boring
↓
Bearing Seat Machining
↓
Surface Treatment
↓
Bearing Installation
↓
Lubrication
↓
Dimensional Inspection
↓
Final Assembly
↓
Packaging
Critical features such as bearing bores, mounting faces, and seal grooves are machined with tight tolerances to ensure accurate bearing fit and reliable shaft alignment.
Typical manufacturing capabilities include:
Housing Size: Customized
Bearing Bore: According to Drawing
Mounting Configuration: Customized
Bore Tolerance: According to Drawing
Coaxiality: According to Drawing
Flatness: According to Drawing
Lubrication Type: Grease or Oil
OEM Manufacturing: Supported
Material selection depends on operating load, environmental conditions, and service life requirements.
Available materials include:
Gray Cast Iron
Ductile Iron
Cast Steel
Carbon Steel
Stainless Steel 304
Stainless Steel 316
Cast iron is widely used because of its rigidity and vibration damping, while cast steel is preferred for higher impact loads. Stainless steel housings are commonly selected for corrosive or hygienic environments.
MetalKeen manufactures bearing housings in a variety of configurations.
Available types include:
Pillow Block Housing
Flange Bearing Housing
Split Plummer Block Housing
Cartridge Housing
Take-Up Housing
Custom CNC Machined Housing
The appropriate housing type depends on shaft size, mounting method, available installation space, maintenance requirements, and operating conditions.
Effective lubrication and sealing are essential for extending bearing service life.
Available options include:
Grease Lubrication
Oil Lubrication
Automatic Lubrication Ports
Labyrinth Seals
Contact Seals
Oil Seals
End Covers
Proper sealing prevents contamination while retaining lubricant, reducing wear and minimizing maintenance.
Available surface treatments include:
Industrial Painting
Powder Coating
Black Oxide
Zinc Plating
Passivation (Stainless Steel)
Anti-Corrosion Coating
Surface finishing improves corrosion resistance and enhances long-term durability in harsh industrial environments.
Custom bearing housing assemblies are widely used in:
Paper Machinery
Pulp Processing Equipment
Conveyor Systems
Mining Equipment
Industrial Gearboxes
Pumps
Compressors
Steel Processing Lines
Agricultural Machinery
Marine Equipment
Power Transmission Systems
Heavy Industrial Machinery
| Bearing Housing Assembly | Standard Bearing Housing |
| Complete unit with bearing | Housing only |
| Ready for installation | Requires separate bearing installation |
| Faster assembly | More installation steps |
| Better quality consistency | Depends on assembly process |
| Lower installation time | Higher labor requirements |
| Ideal for OEM equipment | Suitable for replacement components |
Complete bearing housing assemblies are often preferred by OEM manufacturers because they reduce assembly time, improve reliability, and simplify maintenance.
Every bearing housing assembly undergoes comprehensive inspection before shipment.
Inspection includes:
Material Certification
CMM Dimensional Inspection
Bearing Bore Measurement
Mounting Face Flatness Inspection
Coaxiality Verification
Runout Measurement
Seal Inspection
Assembly Verification
Surface Finish Inspection
Final Functional Inspection
Inspection reports and material certificates are available upon request.
A bearing housing assembly is a complete support unit that includes the housing, bearing, seals, lubrication features, and mounting components, providing accurate shaft support and bearing protection.
A bearing housing is the structural enclosure that supports the bearing, while a bearing assembly is a complete unit that combines the housing with the bearing, seals, and other related components ready for installation.
We manufacture bearing housing assemblies using gray cast iron, ductile iron, cast steel, carbon steel, stainless steel, and other materials according to customer requirements.
Yes. We provide OEM manufacturing based on customer drawings, 3D CAD models, or samples, including casting or fabrication, CNC machining, assembly, and inspection.
Paper mills, mining equipment, conveyors, pumps, compressors, industrial gearboxes, agricultural machinery, marine equipment, and other heavy industrial systems.
We provide CMM dimensional inspection, bore measurement, coaxiality verification, runout testing, seal inspection, assembly verification, and complete material traceability.
Looking for a reliable manufacturer of custom bearing housing assemblies?
MetalKeen provides complete OEM manufacturing services, including casting or steel fabrication, precision CNC machining, bearing installation, lubrication system integration, comprehensive quality inspection, and worldwide delivery. Whether you need replacement bearing housings or fully customized assemblies for new industrial equipment, our engineering team can manufacture solutions that meet your drawings, operating conditions, and international quality standards.
