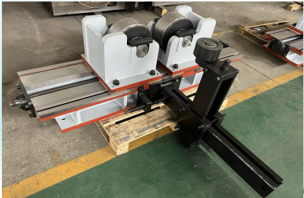

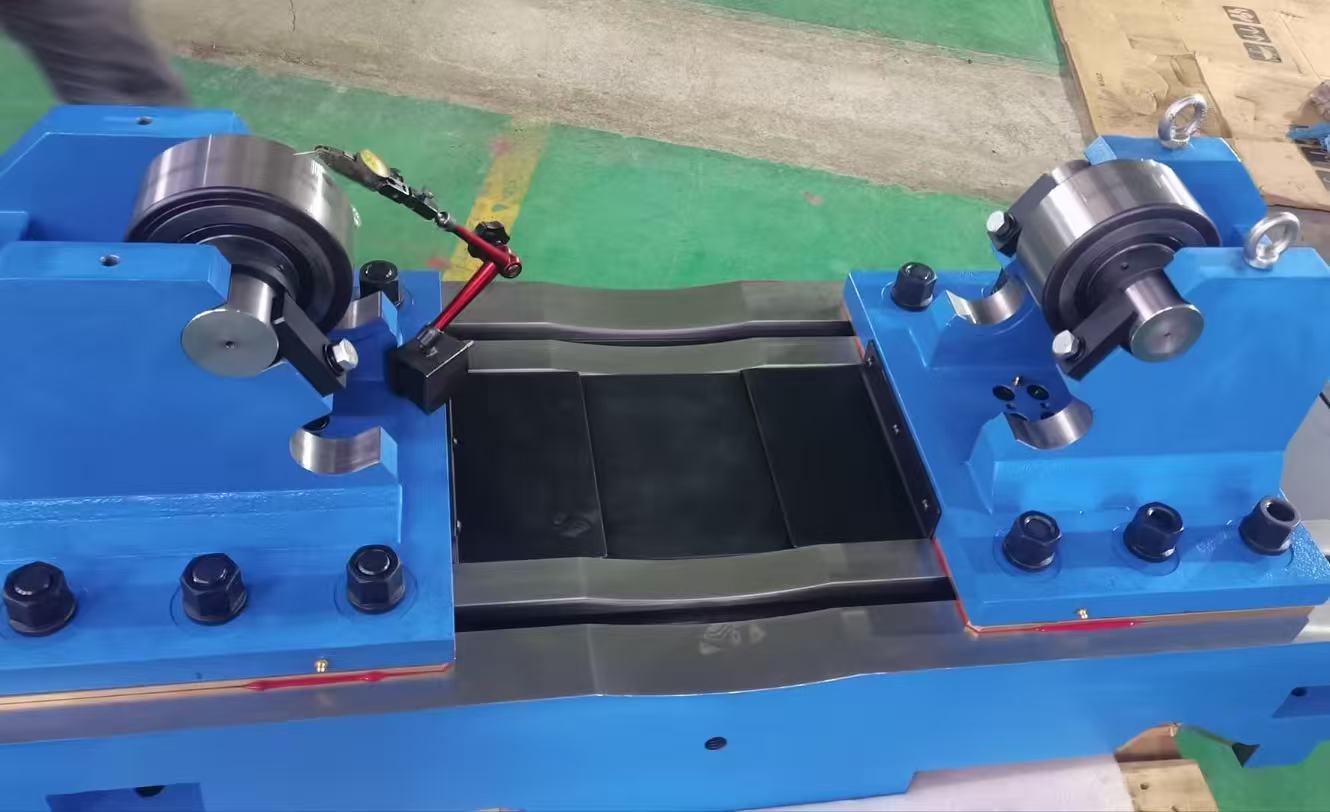

MetalKeen manufactures custom roll supporters for lathes designed to support long pipes, heavy shafts, and large-diameter workpieces during turning, threading, and boring operations. Available in adjustable and fixed configurations, our lathe roller stands are fabricated from carbon steel and stainless steel with load capacities from 1 ton to 20 tons. Engineered to your lathe bed height, workpiece diameter, and weight requirements.
A lathe roll supporter (also called a lathe roller stand, pipe support roll, lathe steady rest, or workpiece support stand) is an auxiliary device placed alongside a lathe to prevent sagging, vibration, and deflection of long or heavy workpieces during machining. It is essential when:
The length-to-diameter ratio (L/D) of the workpiece exceeds 6:1
The workpiece weight exceeds the chuck or center capacity
Pipe or tube turning requires external support to maintain concentricity
Heavy shaft machining demands vibration damping for surface finish quality
MetalKeen designs and fabricates roll supporters tailored to your lathe model, bed height, and workpiece specifications.
Table
Type | Description | Best For |
|---|---|---|
Adjustable Roller Stand — Height-adjustable via screw jack or hydraulic cylinder | Variable workpiece diameters, job shops with mixed parts | Pipes Ø50–Ø800 mm, shafts with diameter variation |
Fixed Roller Stand — Fixed height matched to lathe centerline | Dedicated production lines, repeat parts | Standard shaft diameters, mass production |
Self-Aligning Roller Stand — Rollers pivot to follow workpiece deflection | Long flexible shafts, thin-wall pipes | L/D ratio > 10:1, deflection-sensitive work |
V-Block Roller Stand — V-shaped cradle with bottom support rollers | Round bars, pipes, tubes | Pipe threading, tube end facing |
Cradle-Type Support — Full semicircular cradle with multiple rollers | Ultra-heavy workpieces, large pipes | Workpieces > 5 tons, large-diameter casings |
Traveling Roller Stand — Mounted on lathe bed or floor rail | Moving support point along workpiece length | Very long shafts (>6 m), gun drilling, deep boring |
Table
Component | Material Options | Treatment |
|---|---|---|
Frame / Base | Q235B, Q355B, ASTM A36 carbon steel; 304/316L stainless steel | Hot-dip galvanized, painted, or raw |
Roller / Roll | 45# steel, 40Cr, GCr15 bearing steel; polyurethane-coated steel | Hardened HRC 45–55, ground finish, or rubber/PU lining |
Roller Bearing | Deep groove ball bearing, tapered roller bearing, or bronze bushing | Sealed for coolant and chip protection |
Height Adjustment | Acme screw, ball screw, or hydraulic cylinder | Locking pin or brake for rigid positioning |
Base Plate | Thick steel plate with anchor bolt holes | Machined flatness for stable mounting |
Standard Specifications:
Load Capacity: 1 ton – 20 tons per stand (custom higher capacity available)
Height Range: 600 mm – 1500 mm (centerline adjustable to match lathe spindle height)
Roller Diameter: 80 mm – 300 mm
Roller Width: 50 mm – 200 mm
Workpiece Diameter Range: 20 mm – 1000 mm
Number of Rollers: 1, 2, or 3 rollers per stand (3-roller for self-centering)
Table
Step | Process | Quality Control |
|---|---|---|
Design Review — Customer drawing or lathe specification review | CAD modeling (SolidWorks/AutoCAD) | Dimensional fit check, load calculation |
Frame Fabrication — Cutting, bending, welding | CNC plasma cutting, press brake, MIG/MAG welding | Weld inspection (visual + MT/PT) |
Roller Machining — Turning, heat treatment, grinding | CNC lathe, induction hardening, cylindrical grinder | Hardness test, runout check |
Bearing Assembly — Press-fit bearings into roller hubs | Hydraulic press, bearing heater | Rotation torque check, end play verification |
Height Mechanism — Screw or hydraulic assembly | Thread gauge, stroke test | Smooth operation, no backlash |
Surface Treatment — Shot blasting, painting, galvanizing | Coating thickness measurement | DFT verification |
Assembly & Testing — Full assembly, load test | Static load test to 1.25× rated capacity | Deflection measurement, stability check |
Final Inspection — Dimensional, functional, cosmetic | Inspection report | Documentation for shipment |
Height Adjustability — Manual screw, rapid pin-adjust, or powered hydraulic lift
Roller Material Options — Hardened steel, rubber-lined steel, or full polyurethane for delicate surfaces
Self-Centering 3-Roller Design — Automatically aligns round workpieces to lathe centerline
Coolant & Chip Protection — Sealed bearings and protective covers for wet machining environments
Floor-Mount or Bed-Mount — Free-standing with anchor bolts or clamp-on lathe bed rail mounting
Multiple Stand Synchronization — Linked hydraulic or mechanical height adjustment for multi-point support
Custom Paint / Coating — RAL color matching, epoxy paint for chemical resistance
Our custom lathe roll supporters are used across metalworking industries:
Table
Industry | Application | Typical Configuration |
|---|---|---|
Oil & Gas — Drill pipe, casing, tubing threading and coupling machining | Heavy-duty adjustable V-block stand, 10–20 ton capacity | 3-roller self-centering, hardened steel rollers |
Power Generation — Turbine shaft, generator rotor, pump shaft turning | Precision roller stand with vibration damping | Self-aligning rollers, low-runout bearings |
Shipbuilding — Propeller shaft, rudder stock, stern tube machining | Extra-heavy cradle support, floor-mounted | Cradle-type with multiple rollers, 15+ ton |
Steel & Pipe Mills — Seamless pipe end facing, threading, beveling | High-speed pipe roller stand | V-block with 2 polyurethane-lined rollers |
Mining & Heavy Machinery — Crusher shaft, conveyor roller shaft, pin turning | Rugged fixed or adjustable stand | Thick-walled frame, impact-resistant coating |
Aerospace & Defense — Long thin-wall titanium or Inconel shaft machining | Low-contact-pressure roller stand | Polyurethane or bronze rollers, minimal surface marking |
General Job Shops — Mixed shaft and pipe work, prototype turning | Versatile adjustable roller stand | Quick-height-adjust screw, 1–5 ton capacity |
✅ Custom Engineered — Designed to your lathe bed height, workpiece spec, and floor layout
✅ Heavy Load Capacity — From light job-shop stands to 20-ton industrial pipe supports
✅ Precision Rollers — Ground and hardened rollers with high-quality bearings for smooth rotation
✅ Adjustable & Fixed Options — Screw-adjust, pin-adjust, hydraulic, or dedicated fixed-height designs
✅ Surface Protection — Polyurethane or rubber-lined rollers to prevent workpiece marking
✅ Rugged Construction — Thick-wall steel frames with full-penetration welds
✅ Global Shipping — Disassembled for container shipment with assembly instructions
Q1: What is a roll supporter for a lathe, and why do I need one? A lathe roll supporter (also called a roller stand or steady rest) is an external support device placed alongside a lathe to prevent long or heavy workpieces from sagging, vibrating, or deflecting during turning. You need one when your workpiece is too long or heavy to be supported solely by the lathe chuck and tailstock center, typically when the length-to-diameter ratio exceeds 6:1.
Q2: What is the difference between a steady rest and a roll supporter? A steady rest (or center rest) is a fixed device clamped to the lathe bed that uses adjustable jaws or pads to support the workpiece. A roll supporter (roller stand) is a freestanding or bed-mounted unit that uses rotating rollers to support the workpiece, allowing it to spin with lower friction. Roll supporters are preferred for heavy pipes and shafts where minimal friction and easy setup are required.
Q3: How do I choose the right load capacity for my lathe roll supporter? The roll supporter should be rated for at least 1.25× the maximum workpiece weight it will support. For example, if you machine pipes weighing up to 8 tons, choose a 10-ton capacity stand. For multi-point support systems, divide the total workpiece weight by the number of support points and select stands accordingly.
Q4: Can you manufacture roll supporters to fit my specific lathe model? Yes. We custom-design roll supporters to match your lathe bed height (spindle centerline elevation), floor space constraints, and workpiece diameter range. Provide your lathe model, bed height, maximum workpiece dimensions, and weight, and we will engineer the optimal support configuration.
Q5: What roller materials do you offer, and when should I use each?
Hardened steel rollers (45# / 40Cr / GCr15) — For general carbon steel and alloy steel shaft machining; highest load capacity and wear resistance.
Rubber-lined steel rollers — For polished or finished surfaces where marking must be minimized; good for stainless steel and aluminum.
Polyurethane rollers — For delicate surfaces, thin-wall tubes, or non-ferrous materials; provides grip and prevents scratching.
Q6: Do you provide adjustable-height roll supporters? Yes. We offer manual screw-adjust, rapid pin-adjust (preset height intervals), and hydraulic-powered height adjustment. Manual screw adjustment is most common for job shops; hydraulic adjustment is preferred for heavy-duty production lines where frequent diameter changes occur.
Q7: Can a roll supporter be used with CNC lathes as well as manual lathes? Yes. Our roll supporters are compatible with both CNC lathes and manual/conventional lathes. For CNC applications, we ensure the stand height and position do not interfere with the tool turret or chip conveyor. Bed-mounted traveling supports can be designed for CNC lathes with long bed configurations.
